Clemco 32696 Series 40x50 Pressure Blast Cabinet, 600 CFM LPDC Dust Collector, Non-Ferrous Media, 115V 1-Phase, IQ PLC Controls

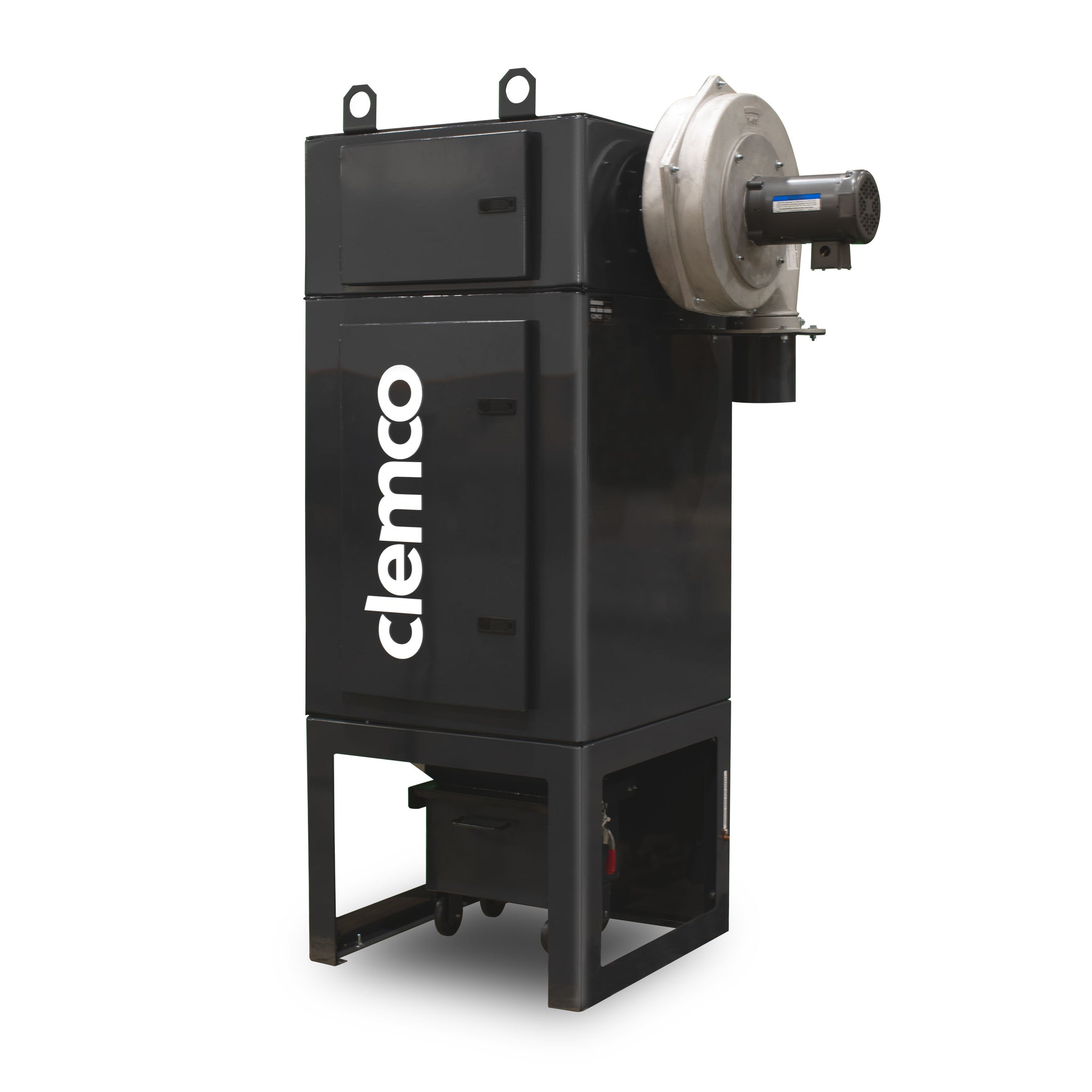

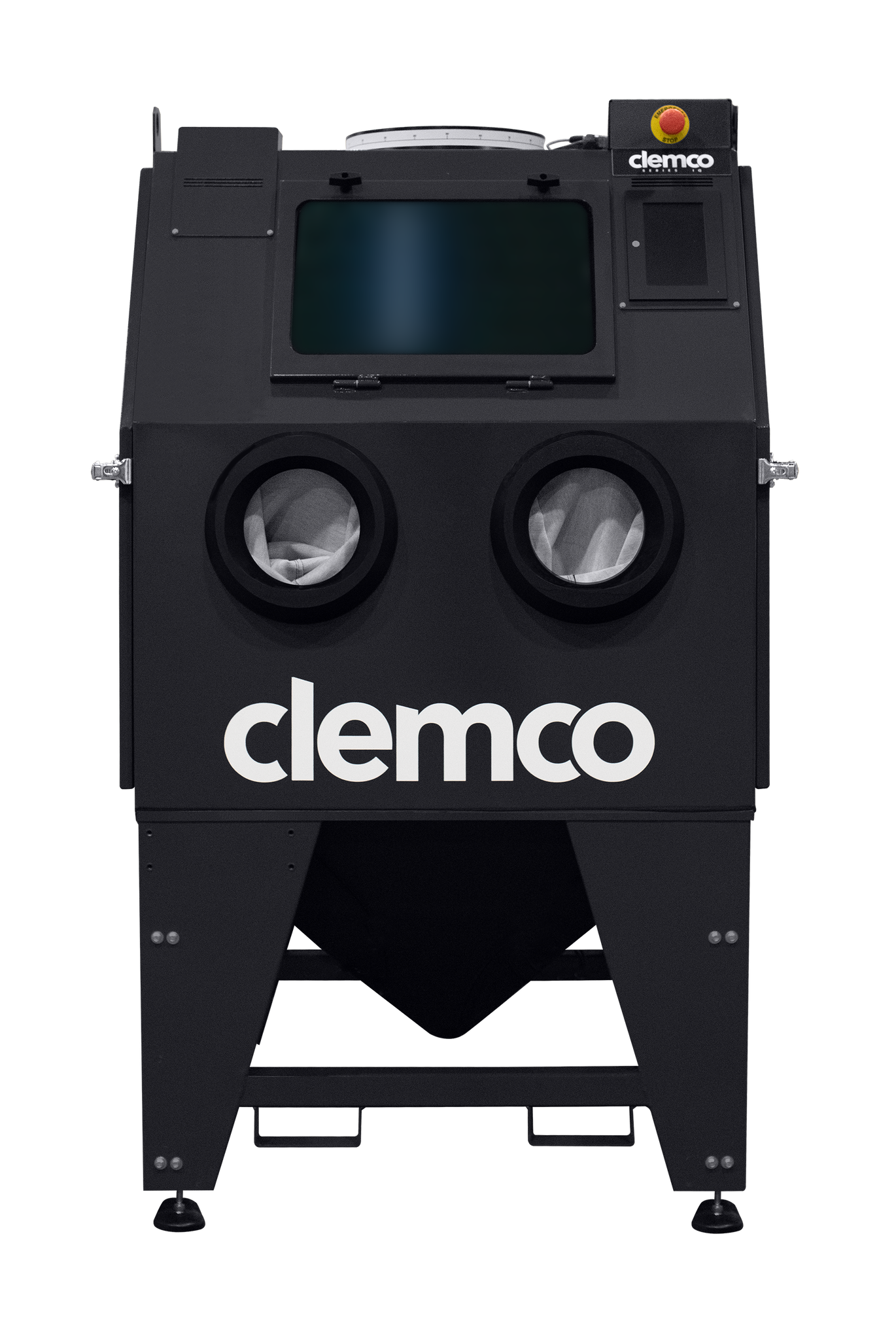

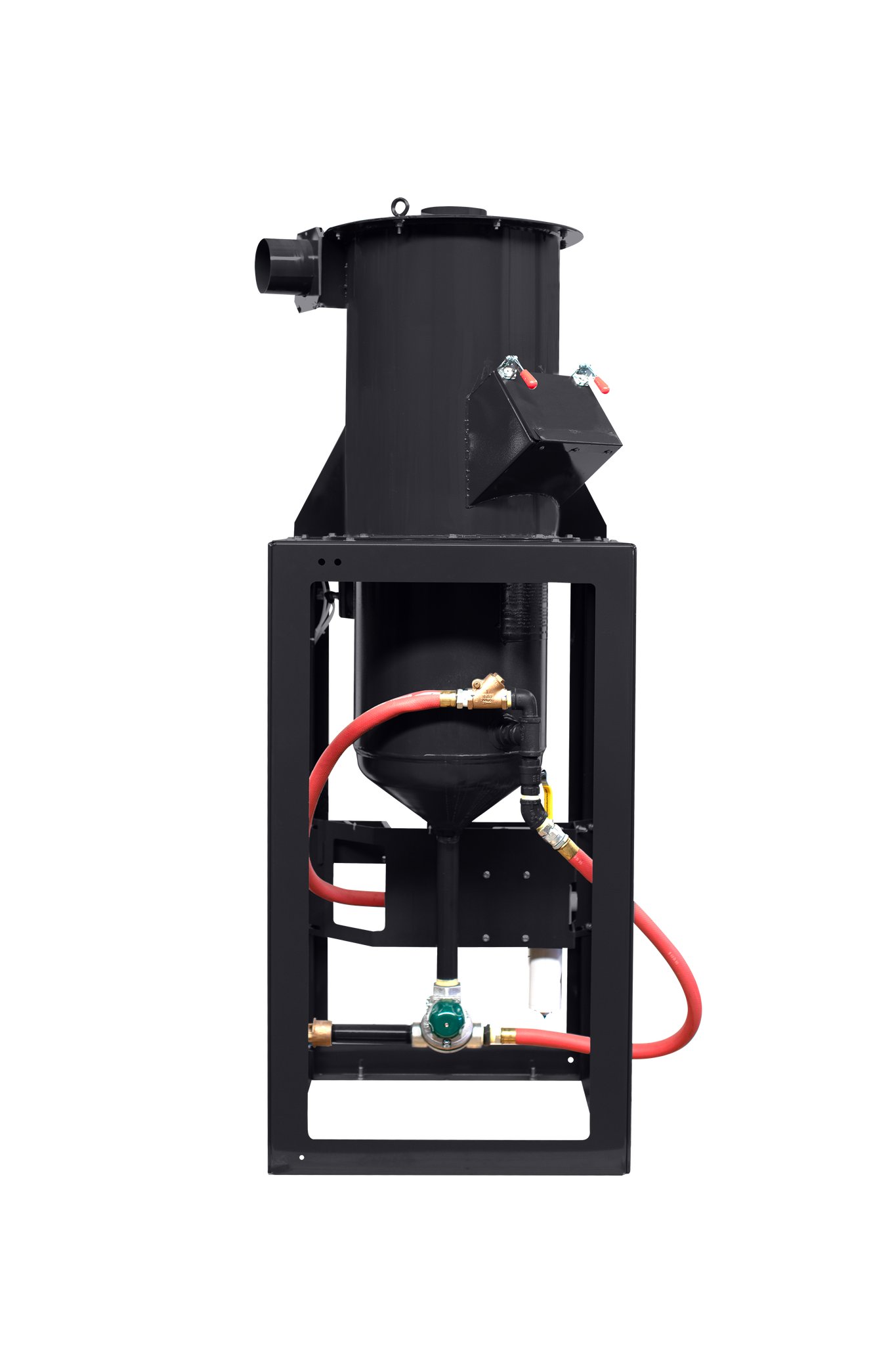

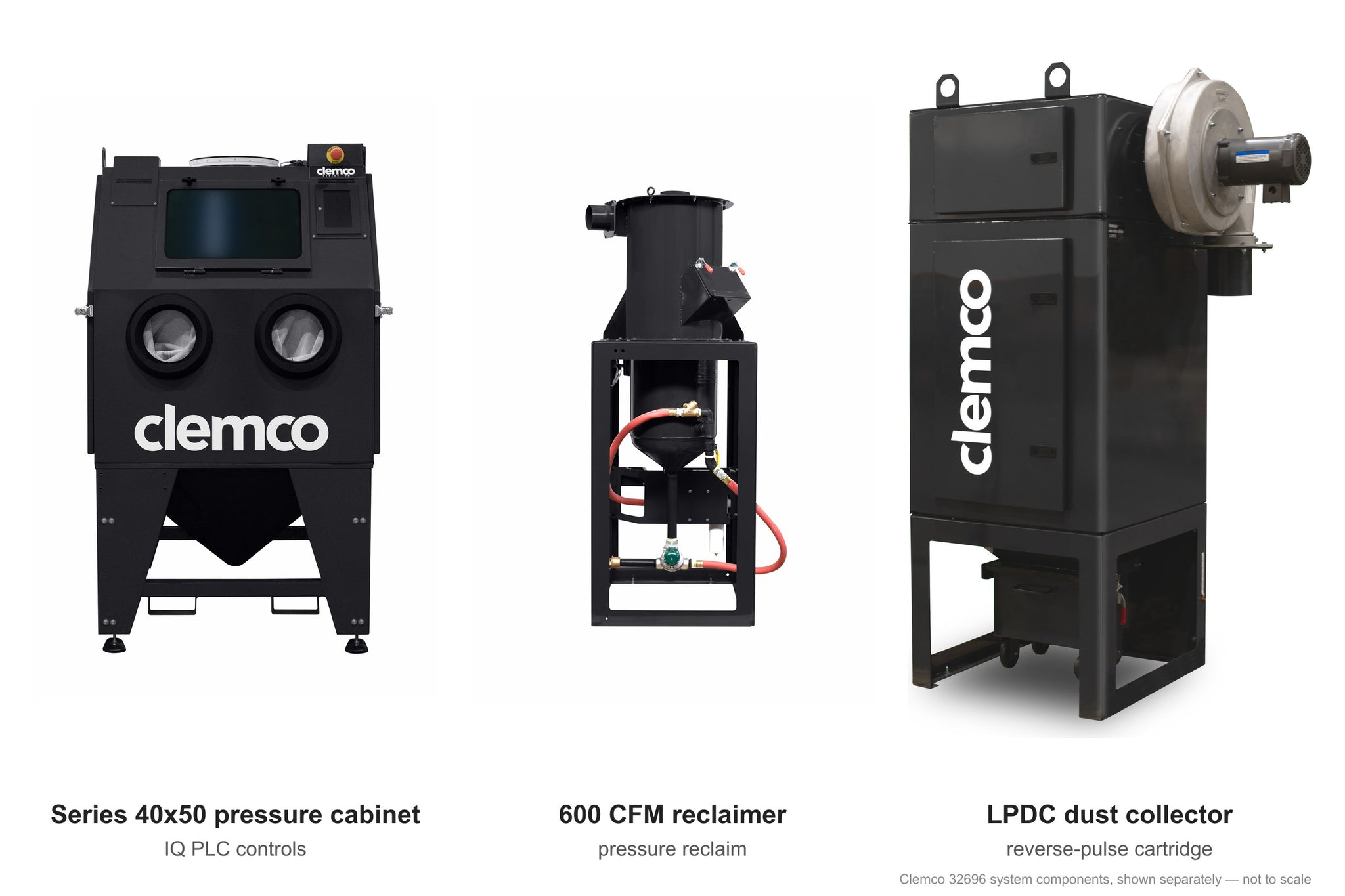

Clemco Industrial Series 40x50 pressure blast cabinet system (Clemco 32696), configured with a 600 CFM pressure reclaimer and LPDC reverse-pulse dust collector, set up for non-ferrous media on 115V 1-Phase power with IQ PLC controls.

About this configuration

• Equivalent in size to a BNP 220 & Aerolyte 4050. 50" wide x 40" deep work chamber, the largest cabinet in the lineup. Designed for oversized parts and high-volume production where maximum work area is needed.
• Approx. Air Consumption: 38 CFM @ 80 PSI, #3 Nozzle Forces media through a pressurized vessel for significantly higher velocity, resulting in 3 to 4 times faster material removal when compared to suction. Best for heavy-duty applications, production environments, and hard-to-remove coatings or scale.
• Aluminum oxide is a sharp, angular abrasive that cuts aggressively and produces a deep anchor profile. Ideal for surface preparation before painting or coating on both ferrous and non-ferrous metals.
• Glass bead is a spherical media that produces a smooth, bright satin finish without removing base material. Used for peening, deburring, and cosmetic finishing where a uniform appearance is required.
• Single-phase power suitable for facilities with standard electrical service. Recommended for smaller installations or locations without three-phase power available.
• In addition to features included in Standard Series cabinets, Every Series IQ Cabinet comes with: -Hydraulic Lift Legs -Timed Reverse Pulse -Digitally controlled, lockable blast pressure -4” Touchscreen with start/stop button and e-stop

Industrial Cabinet Series features

• Operator-friendly features and commonality of parts for easier service
• Harnessed wiring for faster install and setup
• Improved arm ports (ergonomics) standard
• Standard electric foot pedal and safety interlocks
• Standard manually adjustable lift legs; hydraulic lift legs available as an upgrade on all cabinets
• Dust collector options for every size and budget

Accessories for this cabinet

• Clemco 32565 ALOX kit 4050P, factory installed (Clemco recommends with ALOX / Garnet media)
• Clemco 32511 Curtain set, 4050 cabinet
• Clemco 24744 Mat, floor, anti-fatigue, rubber, 2'x3'
• Clemco 22502 Filter element, HEPA 24"x24"x12"
• Clemco 23625 Filter, HEPA asmbly, 600 cfm
• Clemco 12528 Manometer kit
• Clemco 23147 Screen, recl, #8 mesh w/magnets
• Clemco 23146 Screen, recl, #4.5 mesh w/magnets
• Clemco 14138 Turntable, 30" dia, 500#
• Clemco 12411 Turntable, 20" dia, w/brng, 500#
• Clemco 32526 4050 track assembly with 30" 500 lb work car
• Clemco 12412 Turntable, 20" dia, w/o brng, 25#
• Clemco 32527 4050 track assembly with 20" 500 lb work car
• Clemco 29541 Liner set, rbr, 600 cfm RL reclaim (Clemco recommends with ALOX / Garnet media)

Choose one of each: 23147 or 23146; 32562 or 32563; 32564 or 32565; 14130 or 28901; 28894 or 28902; 32566 or 33174; 13410 or 23625; 13410 or 23626.

Recommended service spares

• Clemco 11931 Nozzle, #6 ceramic, blue tip
• Clemco 11932 Nozzle, #7 ceramic, red tip
• Clemco 01351 Nozzle, CT-2, 1/8" orifice x 1-3/4"
• Clemco 01352 Nozzle, CT-3, 3/16" orifice x 1-3/4"
• Clemco 01353 Nozzle, CT-4, 1/4" orifice x 1-3/4"
• Clemco 01354 Nozzle, CT-5, 5/16" orifice x 1-3/4"
• Clemco 01355 Nozzle, CT-6, 3/8" orifice x 1-3/4"
• Clemco 21090 Nozzle, CTB-2, 1/8" orif, boron carb
• Clemco 21091 Nozzle, CTB-3, 3/16" orif, boron carb
• Clemco 21092 Nozzle, CTB-4, 1/4" orif, boron carb
• Clemco 21093 Nozzle, CTB-5, 5/16" orif, boron carb
• Clemco 21094 Nozzle, CTB-6, 3/8" orif, boron carb
• Clemco 12212 Window glass, 12-1/2" x 19-1/2"
• Clemco 06190 Lenses, for cab window 12212, 5-pk
• Clemco 31862 Filter, 13x36, 900cfm, MERV 15

Clemco documentation

• Clemco 32541OSG
• Clemco 32559CM
• Clemco 32806TSM
• Clemco 32561CM
• Clemco OM32011
