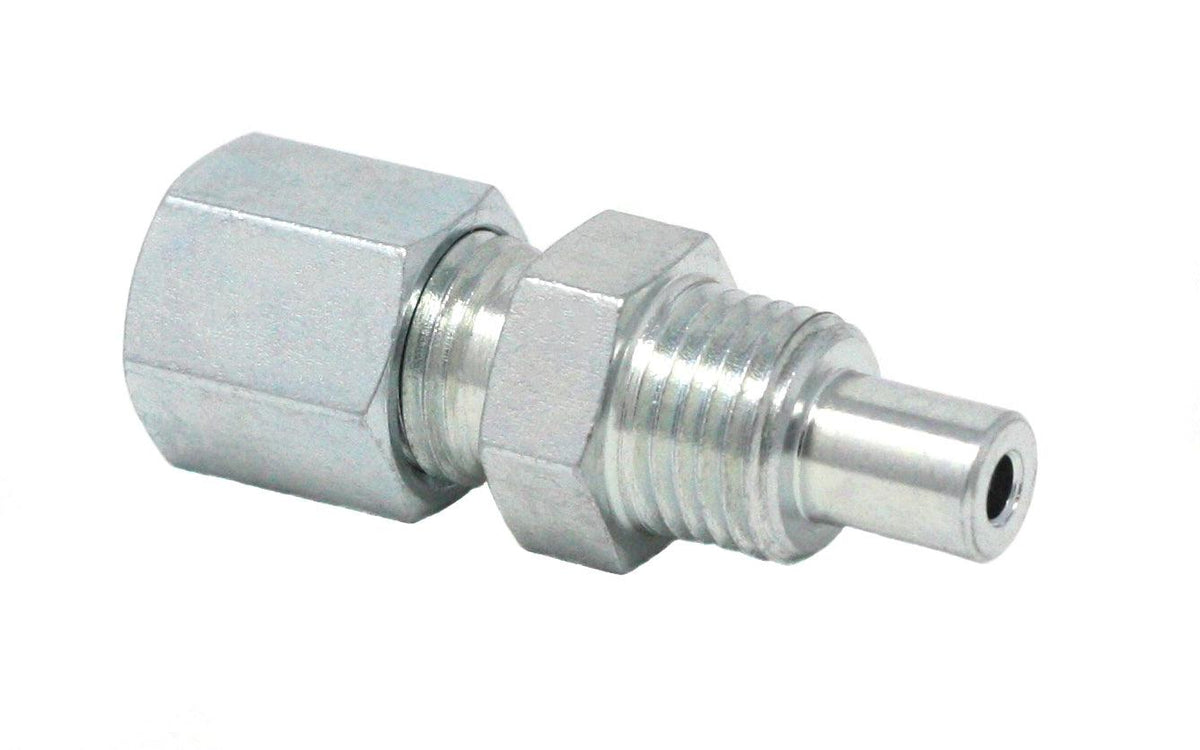

Compression Fitting with check valve, 1/4 inch tube, 1000 psi (6.9 MPa, 69 bar)
UPC Product: 00755652405771
Family Code: FAMCPT
Unit of Measure: EA
Height:
.45 IN
| 1.143 CM
Length:
1.45 IN
| 3.683 CM
Width:
.5 IN
| 1.27 CM
Volume:
0 FT3
| 0 M3
Chargeable Weight:
.04 LBS
| .02 KG
Technical Specifications
| Connection Type | Compression |
|---|---|
| Maximum Working Pressure (bar) | 69 |
| Maximum Working Pressure (kPa) | 6900 |
| Maximum Working Pressure (psi) | 1000 |
| Type | Compression Fitting |
| Inlet Size (mm) | 6.3500 |
| Inlet Size (cm) | 0.6350 |
| Inlet Size (in) | 0.25 |
| Outlet Size (in) | 0.2344 |
| Outlet Size (mm) | 5.95 |
| Outlet Size (cm) | 0.5954 |
