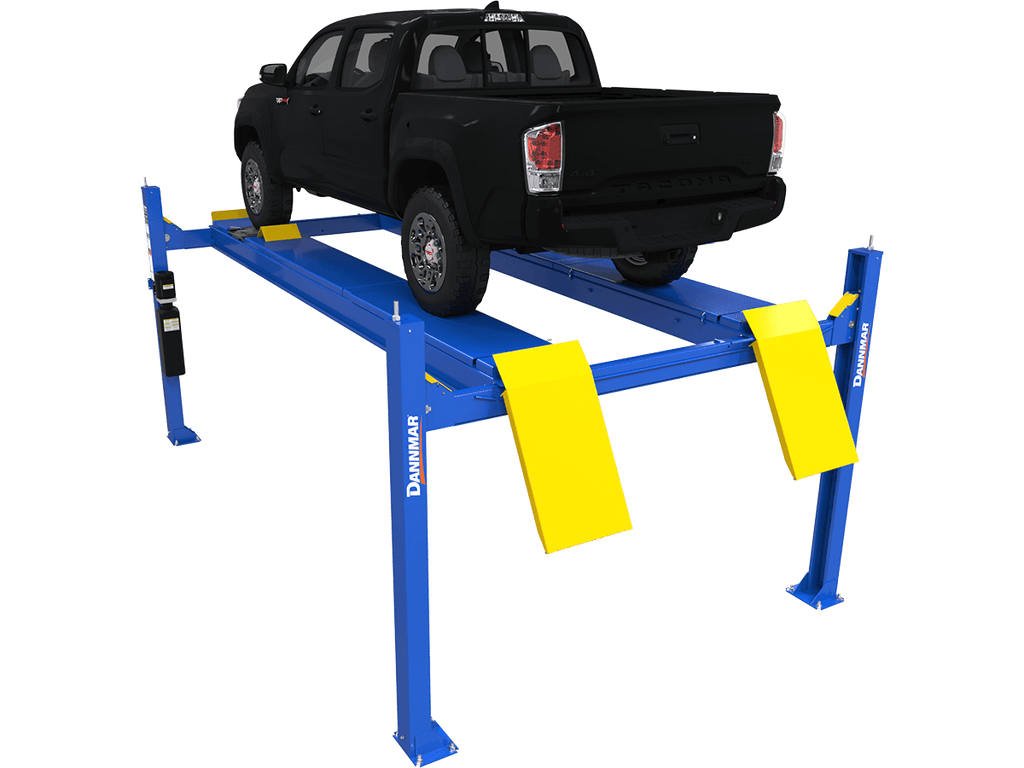

5175318 D4-12A DANNMAR 12K Capacity 4-Post Alignment Lift / Incl. Rear Slip Plates and Turnplates

Dannmar’s D4-12A 12,000 lb. capacity alignment lift utilizes industrial-strength slip plates and turn plates into the runways to provide optimal results. With this, the wheels respond to every adjustment with effectively no resistance.

Features

  • 12,000 pound lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493

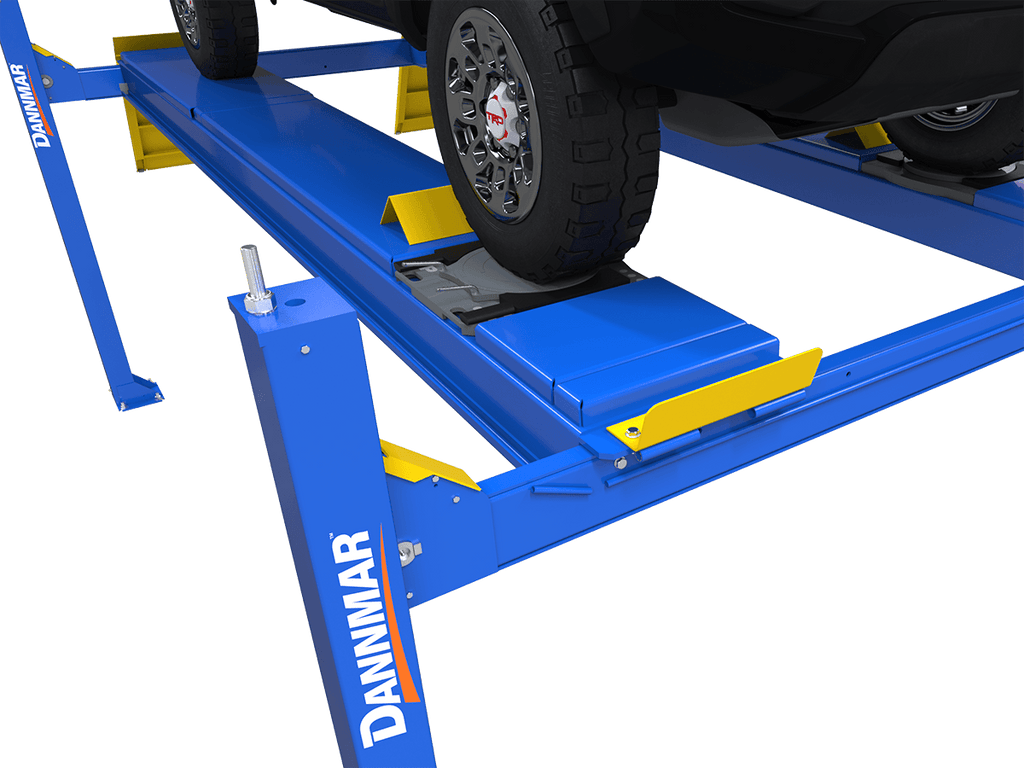

  • Heavy-duty turn plates and integrated rear slip-plates
  • Multi-position turn plate pockets
  • Automatic leveling system
  • Multiple auto-leveling locking positions
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks, and sheaves
  • Internal “Anti-Sway” slider blocks in each column
  • Oversize sheaves and heavy-duty 1/2” aircraft cable
  • Rugged 1-3/8” roller axles and oversize self-lubricating cable sheaves

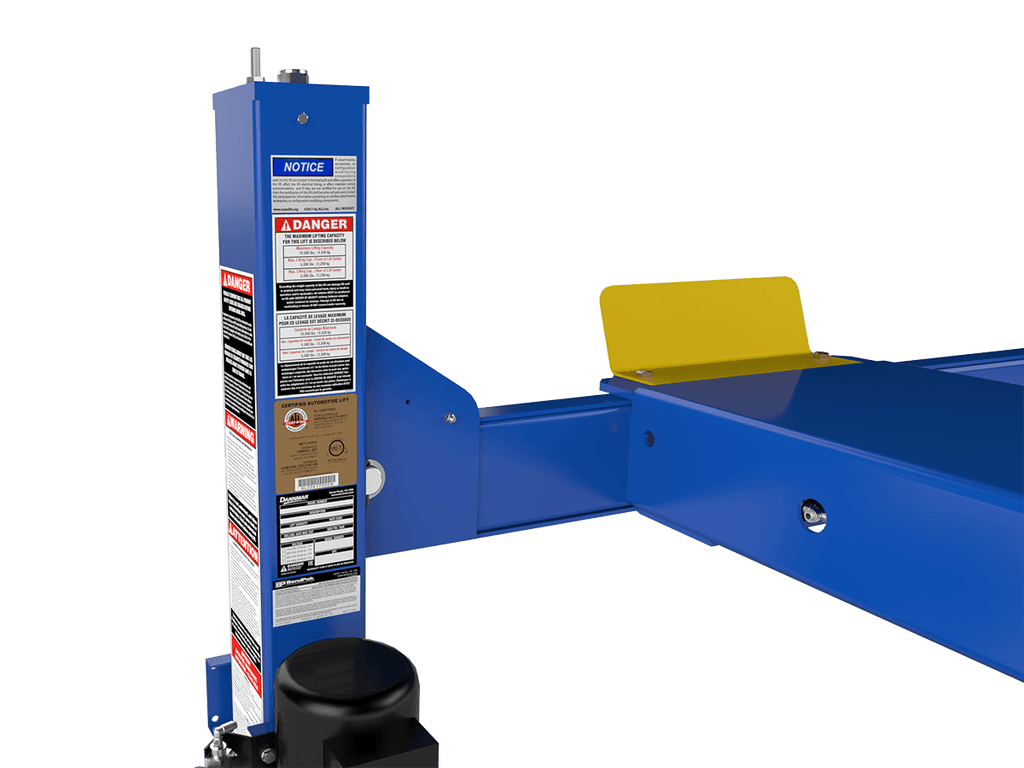

  • Multi-position safety locks in each column with push-button safety release
  • Runways adjust for different tread widths and feature non-skid surface
  • Optional 6,000-lb. capacity bridge jacks available
Lifting Capacity 12,000 lbs. (5,443 kg)
A - Min. Runway Height 9.5" (243 mm)
B - Max. Rise 68.75" (1,746 mm)
C - Max. Lifting Height 79.5" (2,019 mm)
D - Ramp Clearance* (Max. Rise) 49" (1,245 mm)
E - Height of Columns 92" (2,337 mm)
F - Drive-Thru Clearance 98” (2,482 mm)
G - Overall Width 127.5" (3,239 mm)
H - Width Between Columns 115.75" (2,940 mm)
I - Overall Length 233.5" (2,940 mm)
J - Outside Length 194.75” (4,947 mm)
K - Width Between Runways 34.5" (876 mm) or 41.5" (1,054 mm)
L - Runway Centerline 54.5" (1,384 mm) or 61.5" (1,562 mm)
M - Outside Edge of Runways 74.5" (1,892 mm) or 81.5" (2,070 mm)
N - Runway Width 20" (508 mm)
O - Length of Runways 194.75" (4,947 mm)
Min. 4-Wheel Alignment 106” (2,692 mm)
Max. 4-Wheel Alignment 158.5” (4,026 mm)
Max. 2-Wheel Alignment 163.5” (4,153 mm)
Min. Wheelbase @ Rated Capacity 140” (3,556 mm)
Min. Wheelbase @ 75% Capacity 120” (3,048 mm)
Min. Wheelbase @ 50% Capacity 100” (2,540 mm)
Min. Wheelbase @ 25% Capacity 80” (2,032 mm)
Locking Positions 15 (spaced every 4” / 102 mm)
Time to Full Rise 60 seconds
Motor 220 VAC / 60 Hz / 1 Ph
Shipping Weight 2,882 lbs. (1,307 kgs)
Shipping Dimensions
201" x 24" x 47" (5,105 mm x 609 mm x 1,193 mm)* Approach ramps can be removed.

;
