DANNMAR D4-9X Package - 9,000-lbs. Capacity Four-Post Vehicle Lift
DANNMAR D4-9X Package - 9,000-lbs. Capacity Four-Post Vehicle Lift
DANNMAR D4-9X Package - 9,000-lbs. Capacity Four-Post Vehicle Lift
DANNMAR D4-9X Package - 9,000-lbs. Capacity Four-Post Vehicle Lift
DANNMAR D4-9X Package - 9,000-lbs. Capacity Four-Post Vehicle Lift
DANNMAR D4-9X Package - 9,000-lbs. Capacity Four-Post Vehicle Lift

DANNMAR D4-9X Package - 9,000-lbs. Capacity Four-Post Vehicle Lift

$8,294.81
$8,294.81
Quantity must be 1 or more
Sign-up to get 5% off your first order
Click for recommended parts and accessories

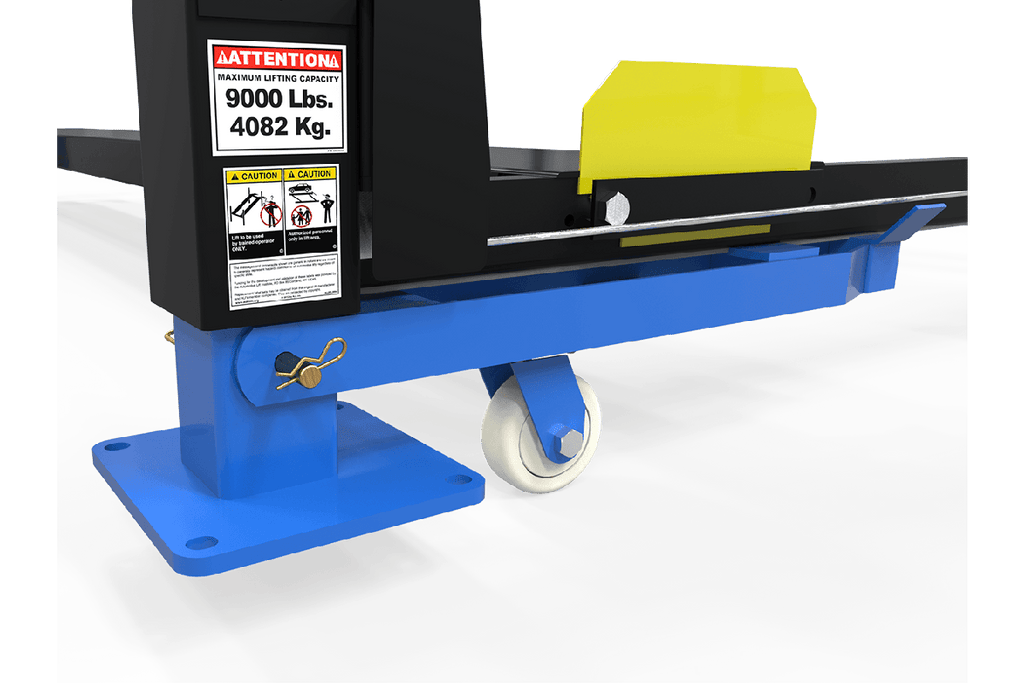

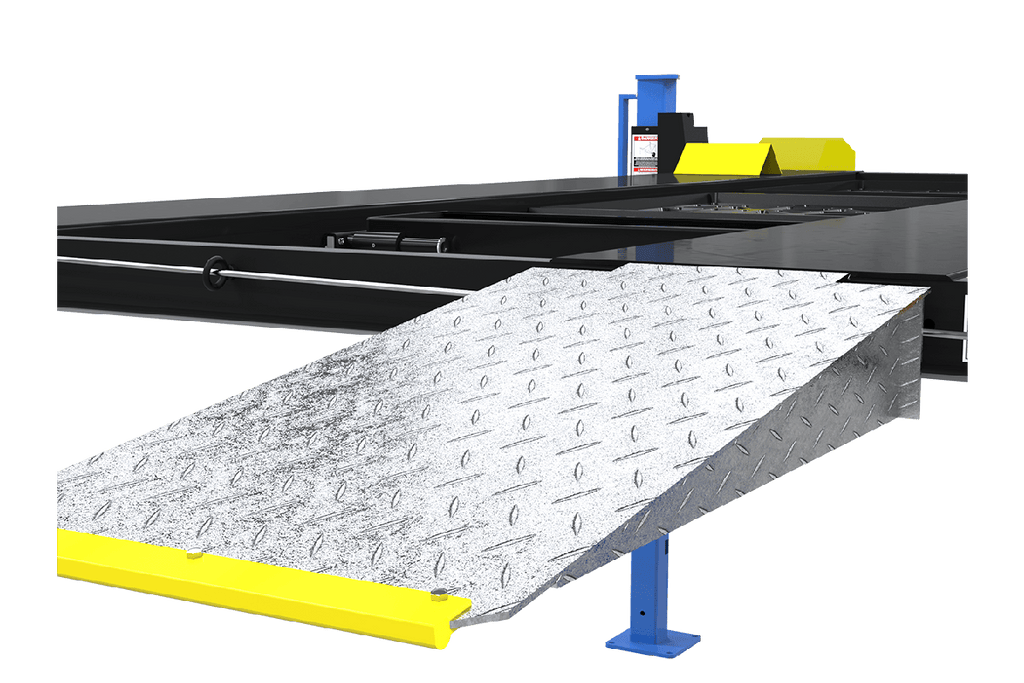

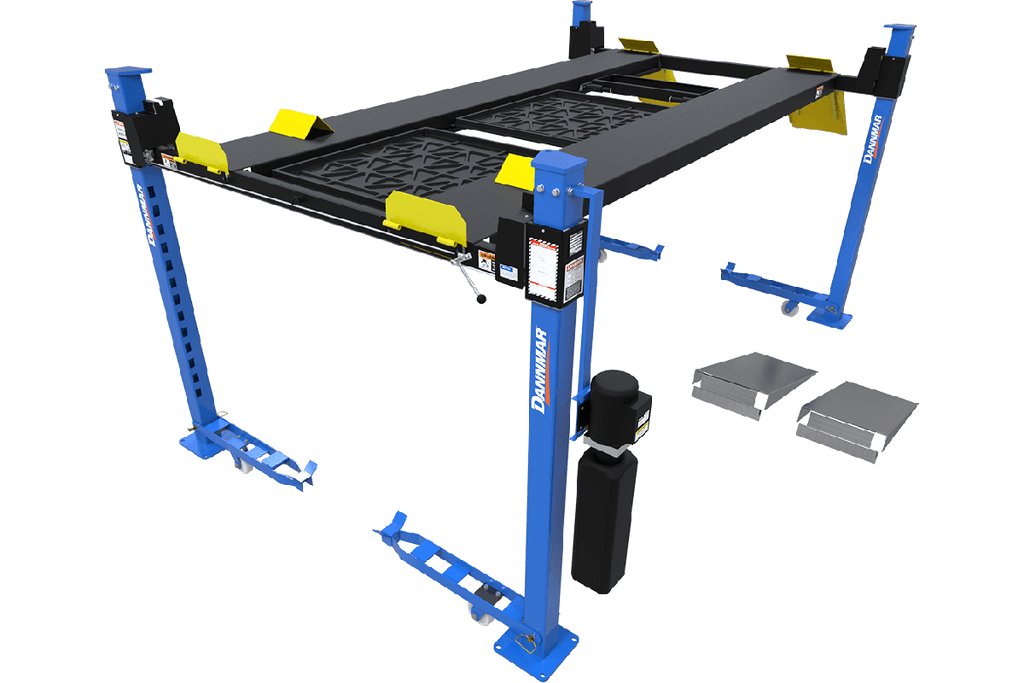

5175321 D4-9X Package DANNMAR 9K Capacity 4-Post / High Rise Ext. Length / Incl. Caster Kit, Drip Trays and Alu. Ramps

If your vehicle has a longer wheelbase such as a long bed or crew cab truck, you might want to consider the Dannmar D4-9X. The runway length is 198” so it will easily accommodate a long wheelbase, plus it’s rated to lift 9,000 lbs. The dimensions of this lift make it about two feet longer than most other four post lifts.

Features

  • CE Approved and Certified
  • Meets or exceeds the standards prescribed by European Standard EN-1493
  • Mid to long-style approach ramps for low-ground clearance vehicles
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Pneumatic push-button safety release
  • Heavy-duty 1/2” aircraft cable and 1.75” roller axles
  • Safety locks enclosed in columns minimize pinch points
  • Oversized sheave diameter reduces cable fatigue
  • Large self-lubricating cable rollers
  • Multi-position safety locks in each column
  • Customizable power unit location
  • Approach ramps incorporate built-in rear-wheel chocks
  • Independent backup slack-cable safety latches
  • Runways feature non-skid surface
  • Optional drive-thru ramps available

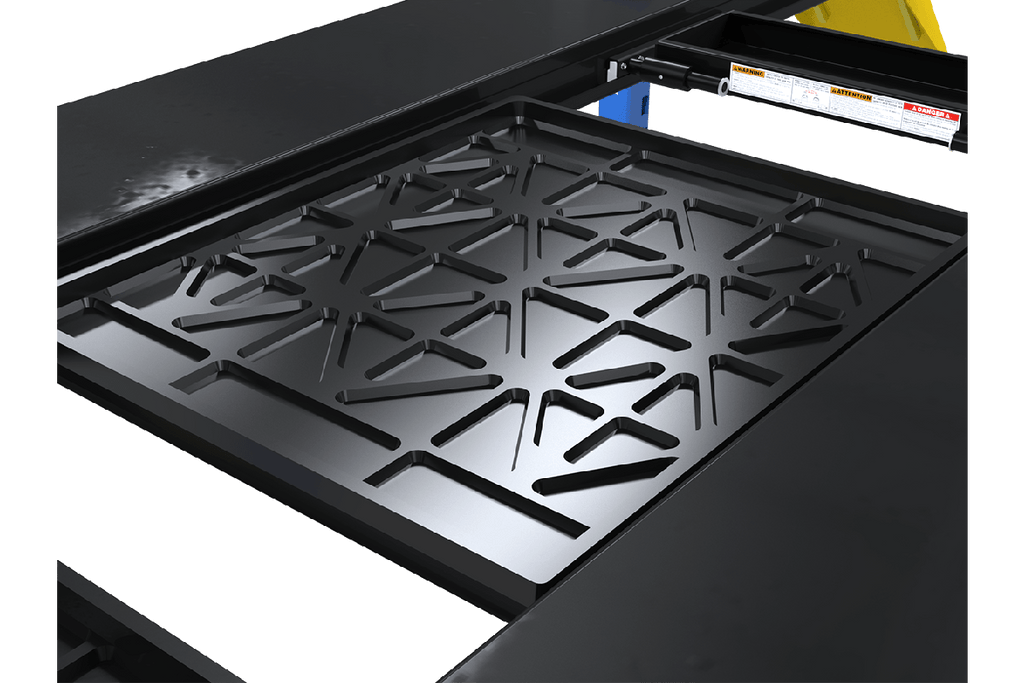

  • Optional drip trays available
  • Optional 6,000-lb. capacity rolling jacks available to raise front or rear of vehicle
  • ETL approved
Lifting Capacity 9,000 lbs. (4,082 kg)
A - Min. Runway Height 5” (127 mm)
B - Max. Rise 82” (2,083 mm)
C - Max. Lifting Height 87” (2,210 mm)
D - Height of Columns 99” (2,515 mm)
E - Drive-Thru Clearance 86” (2,184 mm)
F - Overall Width 114.5” (2,908 mm)
G - Width Between Columns 98” (2,489 mm)
H - Overall Length 227” (5,766 mm)
I - Outside Length 200.5” (5,093 mm)
J - Width Between Runways 37.5” (953 mm)
K - Runway Centerline 53.75” (1,365 mm)
L - Outside Edge of Runways 72.5” (1,842 mm)
M - Runway Width 18.75” (476 mm)
N - Length of Runways 189.75” (4,820 mm)
Min. Wheelbase @ Rated Capacity 135” (3,429 mm)
Min. Wheelbase @ 75% Capacity 115” (2,921 mm)
Min. Wheelbase @ 50% Capacity 95” (2,413 mm)
Min. Wheelbase @ 25% Capacity 80” (2,032 mm)
Locking Positions 16 (spaced every 4” / 102 mm)
Time to Full Rise 60 seconds
Motor
110VAC, 50-60HZ, 1PH, 20A or 208-230VAC, 50-60HZ, 1PH, 25A
Shipping Weight 2,420 lbs. (1,097.7 kgs)
Shipping Dimensions 189" x 22" x 41" (4,800 mm x 558 mm x 1,041 mm)

;
