DANNMAR DT-50 12"-26" Rim Capacity  Swing Arm Tire Charger

DANNMAR DT-50 12"-26" Rim Capacity Swing Arm Tire Charger

Regular price
$3,212.99
Sale price
$3,212.99
Quantity must be 1 or more


5140158 DT-50 DANNMAR Swing Arm Tire Changer / 12"-26" Rim Capacity / 110V/220V, 50-60HZ, 1-Ph.

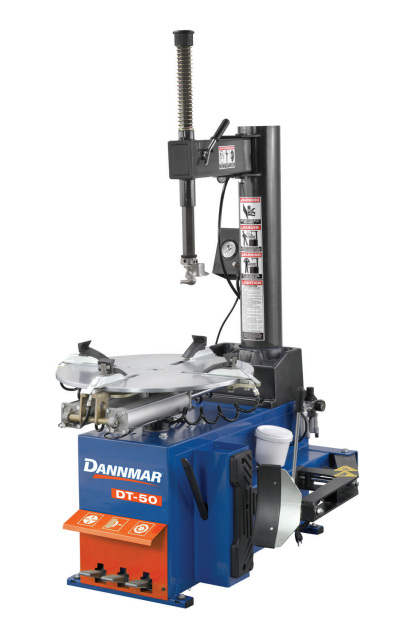

The Dannmar DT-50 swing-arm tire changer is an affordable tire machine designed to handle the basic needs of tire shops. Dannmar’s sturdy body, rigid 45mm hexagonal vertical shaft, and hardened-steel horizontal outrigger support arm eliminates flex during daily tire service procedures.

Motor 110-VAC, 50-60 Hz, 1-Ph
Drive System Type Electric / Air
Tower Design Rigid Fixed / Swing Arm
Power Assist Tower Not Equipped
Bead Seating System Turbo Blast / Bead Seating
Air Requirement 110-175 PSI (8-10 BAR)
Wheel Clamping Method 4 Clamps - Internal / External
Table Clamping System Dual Pneumatic Cylinders
Bead Breaking System Pneumatic Blade
Tower Design Fixed
Internal Rim Clamping Capacity 14” – 26” (356 mm - 660 mm)
External Rim Clamping Capacity 12” – 22” (305 mm - 559 mm)
Turntable Rim Width Capacity 3” – 15” (76 mm – 381 mm)
Bead Breaker Rim Width Capacity 3” – 14” (76 mm – 356 mm)
Maximum Tire Diameter 47” (1,194 mm)
Noise <70 dB

;
