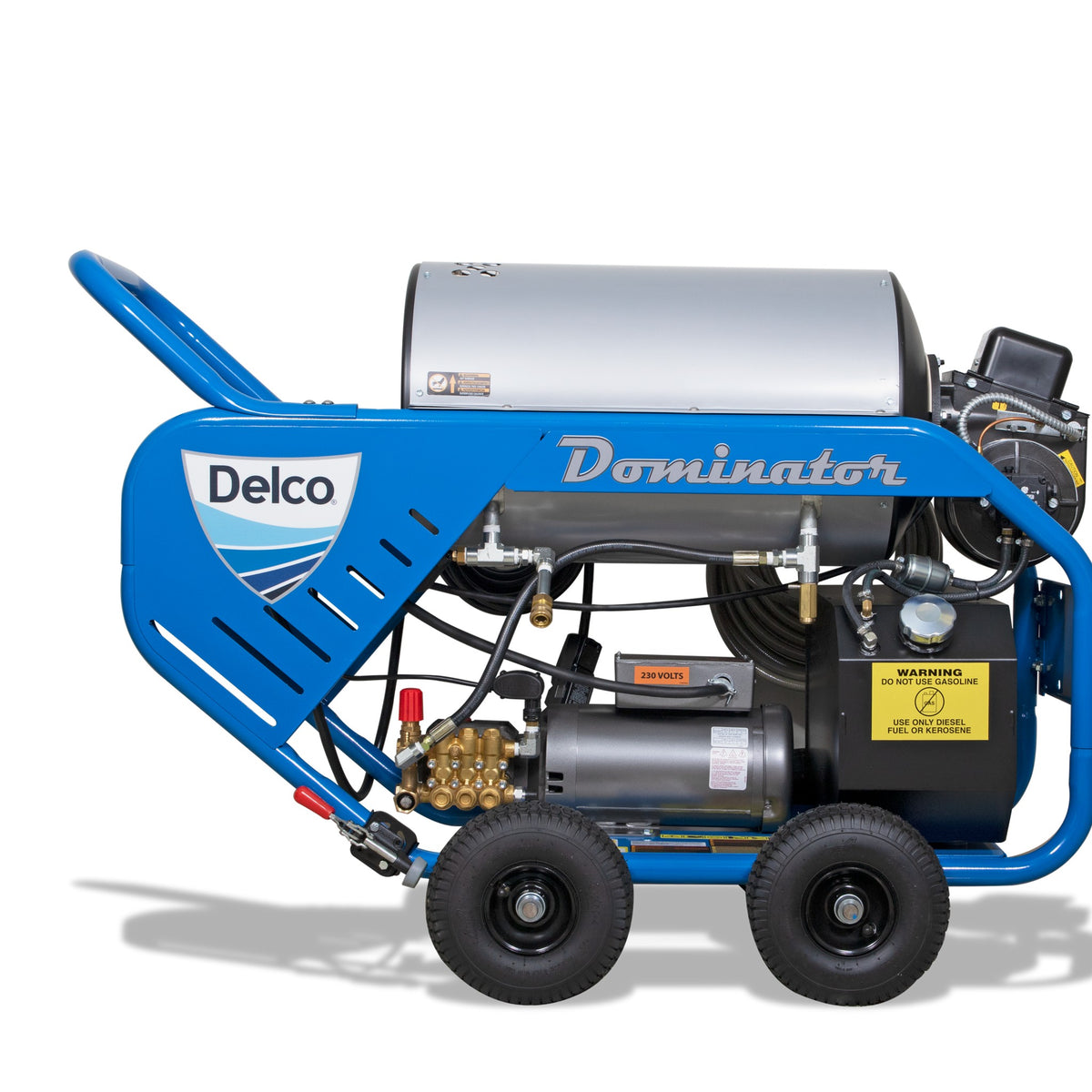

Delco Dominator DDM1030042AAC1 1000 PSI @ 3.0 GPM Electric Hot Water Pressure Washer, 2HP 120V, UDOR® Triplex, Diesel/Kerosene Burner

The Delco Dominator DDM1030042AAC1 (FNA part 65383) is a horizontal-coil electric hot water pressure washer that delivers 1000 PSI at 3.0 GPM (3000 cleaning units). It runs on a 2HP, 120V, single-phase motor (16.4A) that direct-drives a UDOR® industrial triplex pump. The oil-fired burner runs on No. 1/No. 2 diesel or kerosene. The Dominator Series is built to be compact and easy to use, with high-quality components and downstream chemical injection. That makes it a good fit for operators who need hot water cleaning from a standard 120V power source.

UDOR® Industrial Triplex Pump

• UDOR® industrial triplex pump, direct drive
• 1750 RPM slow speed
• Forged brass manifold
• Thermal relief valve
• Ceramic-coated plunger sleeves
• External unloader with bypass hose

Burner & Fuel

• Horizontal-coil, oil-fired burner for hot water cleaning
• Burner fuels: No. 1/No. 2 diesel or kerosene
• 6.7 gal diesel fuel tank

Electrical & Controls

• 2HP / 120V / 1-phase / 16.4A electric motor
• NEMA 4X electrical enclosure with rocker switch and hour meter
• 35' GFCI electrical cord

Frame & Mobility

• Heavy-duty 1-1/2" round tubular steel frame
• Powder-coated for corrosion resistance
• Wheel brake system
• Dimensions: L 55" x W 31" x H 40"; weight 410 lbs

Included Equipment & Warranty

• 3/8" x 50' steel-braided Armor Hose®
• Lance and trigger gun
• Quick-connect nozzles: 15°, 25°, 40°, and soap
• Downstream injector for chemical application
• Warranty: 10-year frame, 5-year pump, 1-year motor

Have questions about the Delco Dominator DDM1030042AAC1 or need help choosing the right hot water pressure washer? Call Pittsburgh Spray Equipment at 888-714-1410.
