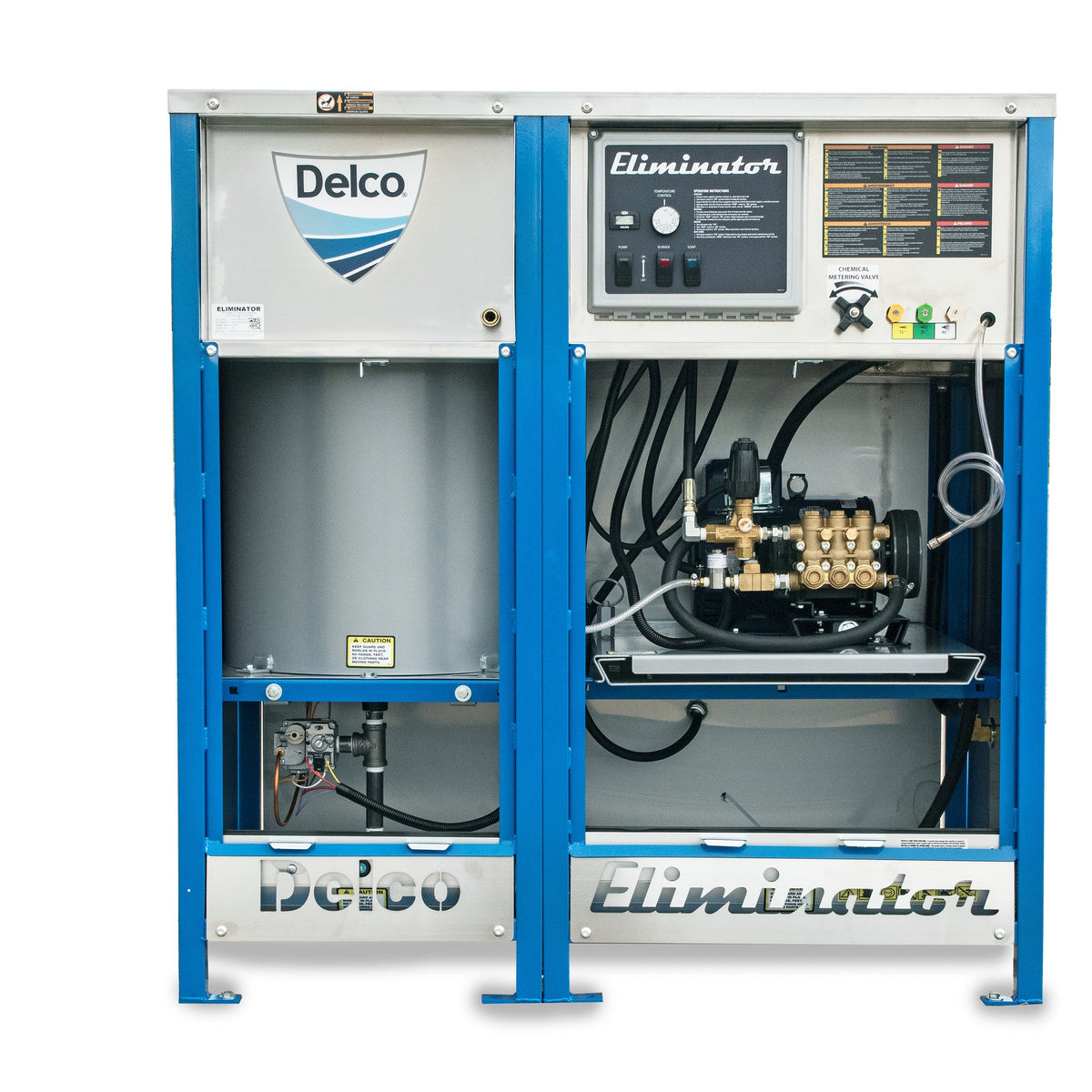

The Delco Eliminator ELM3040041BNG (part 65184) is a stationary hot water pressure washer in an industrial enclosed cabinet that is designed to be easily serviced. It delivers 3000 PSI at 4.0 GPM (12,000 cleaning units). Power comes from a 7.5HP, 208/230V, single-phase, 29A electric motor that belt-drives a UDOR® industrial triplex pump. A 380,000 BTU natural gas burner heats the water. It is built for wall-mount installation and suits facilities that need fixed-location hot water cleaning on single-phase power.
Cabinet & Controls
- NEMA 4X electrical enclosure with rocker switch, hour meter and soap control switch
- 24V operating system with time delay shut-down
- Remote box ready-wired
- Voltage selection: choose between 208V or 230V
- Roll-down doors with lock
Pump & Drive
- UDOR® industrial triplex pump with forged brass manifold
- Belt drive running at a slow 1750 RPM
- Ceramic-coated plunger sleeves and thermal relief valve
- External unloader with bypass hose
- Slide-out motor pump tray
Burner & Heating
- 380,000 BTU natural gas burner
- 1/2" schedule 80 vertical coil
- Float tank
- High-pressure soap with metering valve
Frame & Installation
- Powder-coated frame for corrosion resistance
- Corrosion-resistant stainless steel vented panels
- Wall-mount design
- Movable water inlet/outlet point with 3 locations: front, side, or back
- Weight: 860 lbs; dimensions: L 52" x W 36" x H 51"
Included Equipment & Warranty
- 3/8" x 50' steel-braided Armor Hose®, trigger gun and lance
- 15°, 25° and 40° nozzles
- High-pressure soap injector
- Warranty: 10-year frame, 5-year pump, 1-year motor
- Optional accessories: Draft Diverter (7100283), Auto Start/Stop Shut-Off (7110785), Remote Box Kit 24V (80654)
Have questions about the Delco Eliminator ELM3040041BNG or need help planning your installation? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | ELM3040041BNG |
| Part Number | 65184 |
| Pressure | 3000 PSI |
| Flow | 4.0 GPM |
| Cleaning Units | 12,000 |
| Motor | 7.5HP / 208/230V / 1-phase / 29A |
| Pump | UDOR® industrial triplex |
| Drive | Belt |
| Pump Speed | 1750 RPM |
| Burner Output | 380,000 BTU |
| Burner Fuel | Natural gas |
| Hose | 3/8" x 50' steel-braided Armor Hose® |
| Nozzles | 15°, 25°, 40° |
| Weight | 860 lbs |
| Dimensions | L 52" x W 36" x H 51" |
| Warranty | 10-Year Frame, 5-Year Pump, 1-Year Motor |
