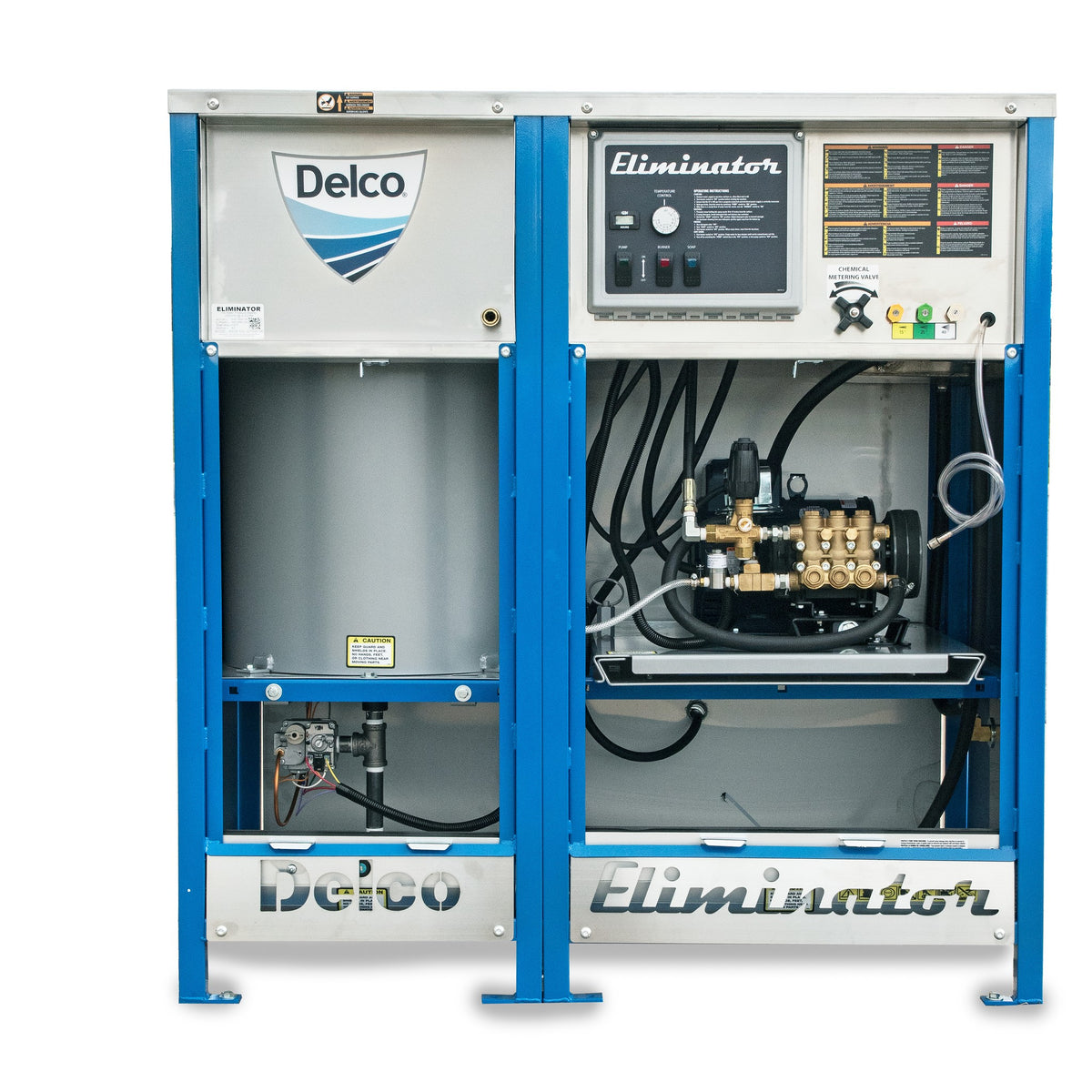

The Delco Eliminator ELM3050041DNG (part 65191) is an industrial, stationary hot water pressure washer built into an enclosed cabinet designed for easy servicing. It delivers 3000 PSI at 5.0 GPM (15,000 cleaning units). Power comes from a 10HP, 460V, 3-phase, 12.5A electric motor driving a belt-drive UDOR® industrial triplex pump. A 380,000 BTU natural gas burner heats the water. A 24V operating system with time delay shut-off is standard. With a wall-mount frame, it suits facilities with 460V 3-phase power and natural gas service that need a permanent hot water cleaning station.
Performance & Controls
- 1750 RPM slow-speed operation with belt drive
- NEMA 4X electrical enclosure with rocker switch, hour meter and soap control switch
- High-pressure soap with metering valve
- Time delay shut-down and 24V operating system
- Remote box ready-wired
- Float tank
- 1/2" schedule 80 vertical coil
UDOR® Industrial Triplex Pump
- Forged brass manifold
- Thermal relief valve
- Ceramic-coated plunger sleeves
- External unloader with bypass hose
Cabinet & Frame
- Powder-coated for corrosion resistance
- Corrosion-resistant, stainless steel vented panels
- Wall-mount design
- Roll-down doors with lock
- Slide-out motor pump tray for service access
- Movable water inlet/outlet point with 3 locations: front, side, or back
What's Included
- 3/8" x 50' steel-braided Armor Hose®
- Trigger gun and lance
- Nozzles: 15°, 25°, and 40°
- High-pressure soap injector
Warranty & Optional Accessories
- Warranty: 10-year frame, 5-year pump, 1-year motor
- Draft Diverter (part 7100283)
- Auto Start/Stop Shut-Off (part 7110785)
- Remote Box Kit 24V (part 80654)
Have questions about the Delco Eliminator ELM3050041DNG, installation requirements or accessories? Call Pittsburgh Spray Equipment at 888-714-1410 and our team will be glad to help.
Specifications
| Model | ELM3050041DNG |
| Part Number | 65191 |
| Series | Eliminator |
| Pressure | 3000 PSI |
| Flow | 5.0 GPM |
| Cleaning Units | 15,000 |
| Motor | 10HP / 460V / 3-phase / 12.5A |
| Pump | UDOR® industrial triplex |
| Drive | Belt |
| Burner Output | 380,000 BTU |
| Burner Fuel | Natural gas |
| Water | Hot water |
| Hose | 3/8" x 50' steel-braided Armor Hose® |
| Weight | 860 lbs |
| Dimensions | L 52" x W 36" x H 51" |
| Warranty | 10-Year Frame, 5-Year Pump, 1-Year Motor |
