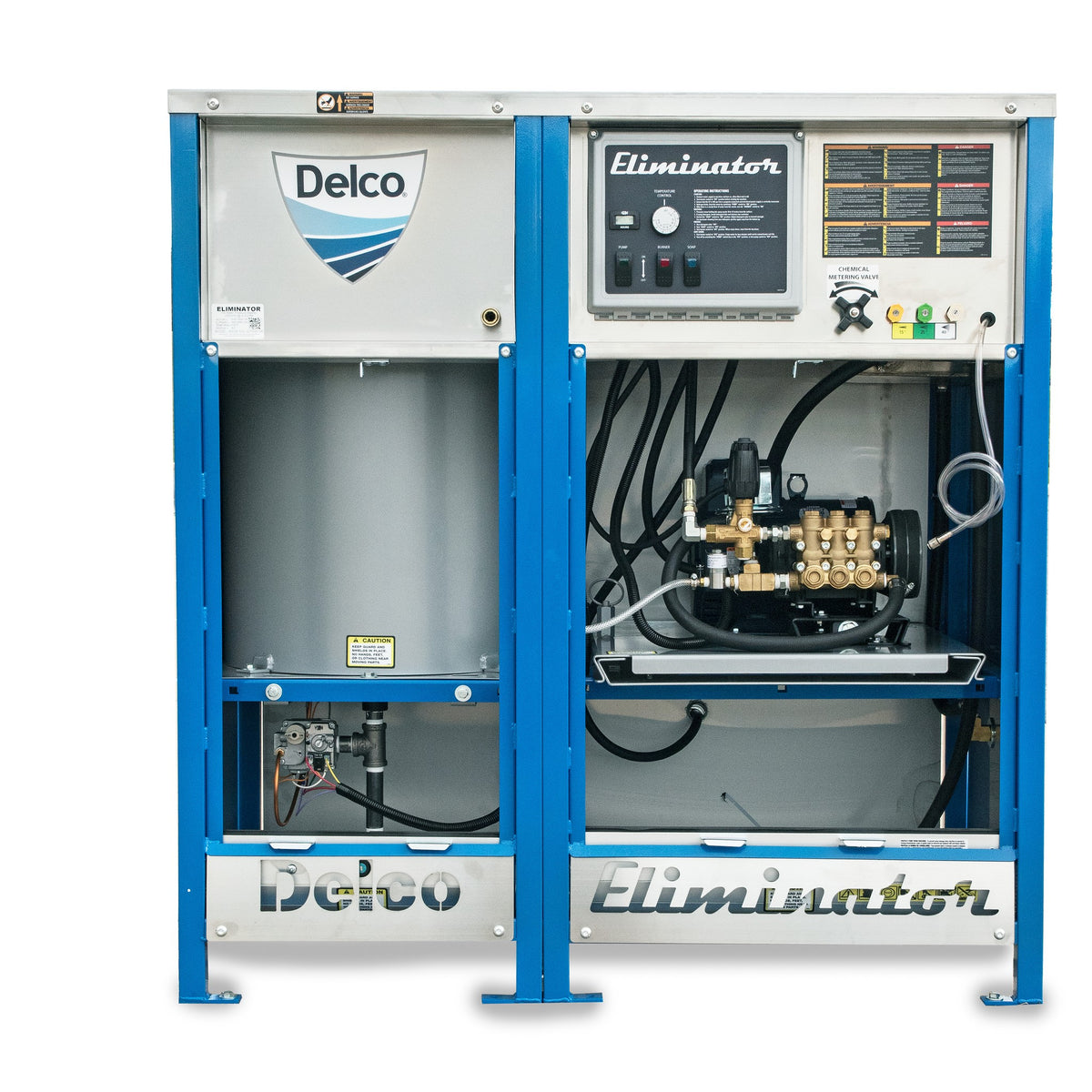

The Delco Eliminator XL ELM3010041DNG (part 65283) is a stationary, industrial enclosed-cabinet hot water pressure washer built to be easily serviced. It delivers 3000 PSI at 10 GPM (30,000 cleaning units). A 20HP, 460V, 3-phase electric motor (24A) belt-drives a UDOR® industrial triplex pump at a slow 1750 RPM. A 750,000 BTU natural gas burner provides the hot water. A 24V operating system with time-delay shut-off is standard. It suits facilities that need a permanent, high-output hot water cleaning station with 3-phase power and a natural gas supply.
Power & Pump
- 20HP / 460V / 3-phase / 24A electric motor with belt drive
- UDOR® industrial triplex pump running at 1750 RPM slow speed
- Forged brass manifold and ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose
- Slide-out motor pump tray for easy service
Heating System
- 750,000 BTU natural gas burner
- 1/2" schedule 80 vertical coil
- Float tank
Controls & Operation
- NEMA 4X electrical enclosure with rocker switch, hour meter and soap control switch
- 24V operating system with time-delay shut-down
- Remote box ready-wired
- High-pressure soap with metering valve
- Movable water inlet/outlet point with 3 locations: front, side or back
Cabinet & Frame
- Powder-coated frame for corrosion resistance
- Corrosion-resistant, stainless steel vented panels
- Roll-down doors with lock
- Wall-mount design
- Dimensions: L 64" x W 36" x H 61"
- Weight: 1660 lbs
Included Equipment, Warranty & Options
- Includes a 3/8" x 50' steel-braided Armor Hose®, trigger gun, lance, high-pressure soap injector, and 15°, 25° and 40° nozzles
- Warranty: 10-year frame, 5-year pump and 1-year motor
- Available accessories: Draft Diverter (7100283), Auto Start/Stop Shut-Off (7110785) and Remote Box Kit 24V (80654)
Have questions about the Delco Eliminator XL ELM3010041DNG or need help choosing accessories? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Model | ELM3010041DNG |
| Part Number | 65283 |
| Series | Eliminator XL |
| Pressure | 3000 PSI |
| Flow | 10 GPM |
| Cleaning Units | 30,000 |
| Motor | 20HP / 460V / 3-phase / 24A |
| Pump | UDOR® industrial triplex |
| Pump Speed | 1750 RPM |
| Drive | Belt |
| Burner Output | 750,000 BTU |
| Burner Fuel | Natural gas |
| Hose | 3/8" x 50' steel-braided Armor Hose® |
| Dimensions | L 64" x W 36" x H 61" |
| Weight | 1660 lbs |
| Warranty | 10-Year Frame, 5-Year Pump, 1-Year Motor |
