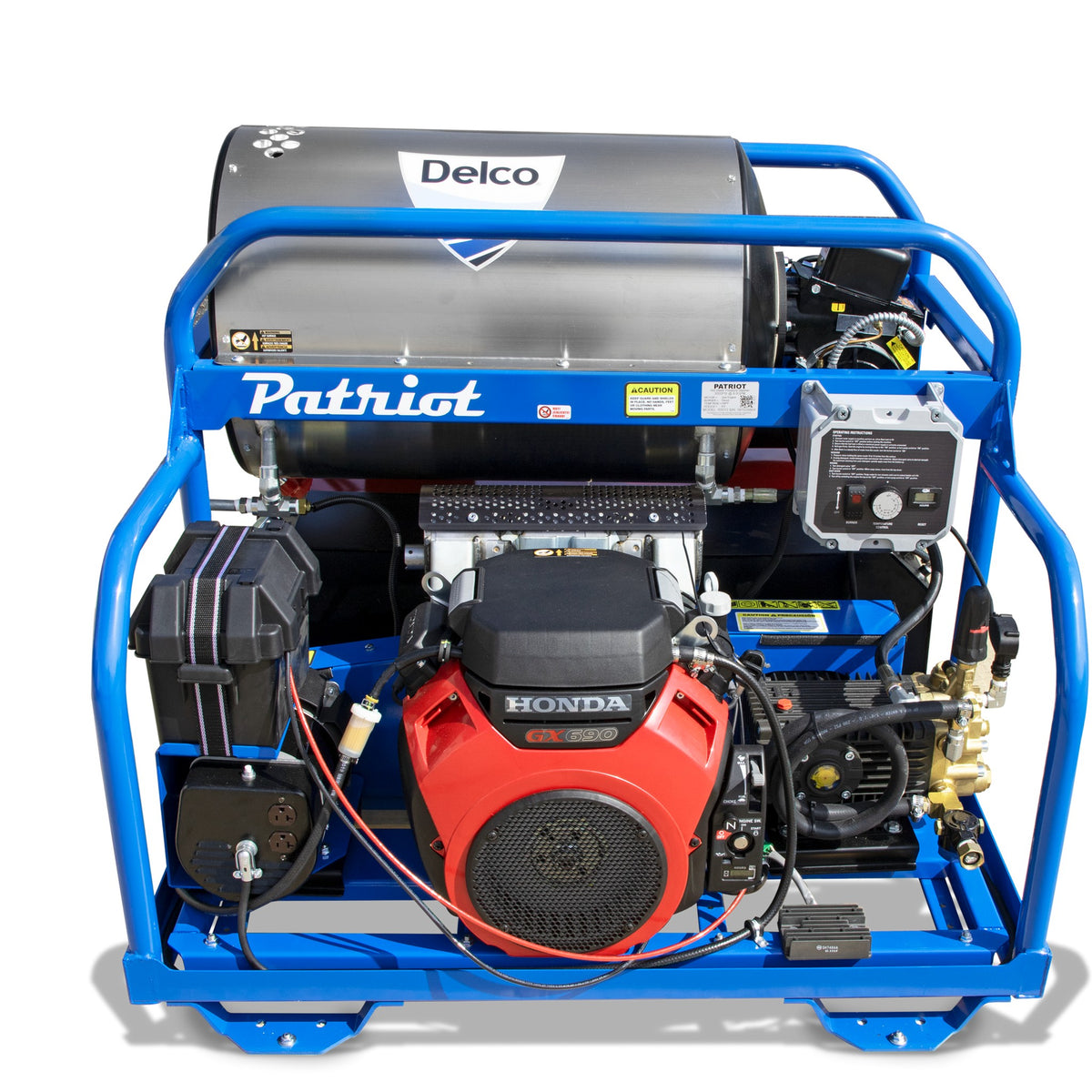

Delco Patriot DPT3080151EAC11 3000 PSI @ 8.0 GPM CRX® 750 General Pump® Triplex Hot Water Pressure Washer, Diesel/Kerosene Burner

The Delco Patriot DPT3080151EAC11 (FNA part 65148) is a gas-engine hot water pressure washer that delivers 3000 PSI at 8.0 GPM for 24,000 cleaning units. It is powered by a key-start CRX® 750 (750cc) V-twin engine and uses a belt-driven General Pump® industrial triplex pump. The oil-fired burner runs on No. 1/No. 2 diesel or kerosene and uses a 120V burner system. The Patriot is designed for both portable and stationary use, and it has extended 15-gallon gas and 15-gallon diesel tanks. It suits contractors and facilities that need heavy-duty hot water cleaning. Not for sale in California.

Engine & Burner

• CRX® 750 V-twin horizontal engine with key-start (battery not included)
• Low oil shutdown
• 120V burner system that burns No. 1/No. 2 diesel or kerosene
• 1/2" Schedule 80 horizontal coil
• Corrosion-resistant stainless steel coil cover
• 3.4 kW generator with one 120V duplex outlet
• NEMA 4X electrical enclosure with burner on/off rocker switch and hour meter

General Pump® Industrial Triplex Pump

• Belt drive with 1750 RPM slow speed
• Forged brass manifold
• Ceramic-coated plunger sleeves
• Thermal relief valve
• External unloader with bypass hose
• Isolated pump and engine plate with vibration dampeners

Frame

• Heavy-duty 1-1/2" round tubular steel design
• Powder-coated for corrosion resistance
• Removable feet for forklift capability and alternative mounting options
• Extended 15 gal. gas tank and 15 gal. diesel tank

Included Equipment

• 3/8" x 50' steel-braided Armor Hose®
• Trigger gun and lance
• Quick-connect nozzles: 15°, 25°, and 40°
• Engine oil 10W-30

Warranty & Optional Accessories

• Warranty: 10-year frame, 5-year pump, 3-year engine
• Optional Analog Thermostat Kit (part 80657)
• Optional Steam Kit (part 80664)

If you have questions about the Delco Patriot DPT3080151EAC11, call Pittsburgh Spray Equipment at 888-714-1410.
