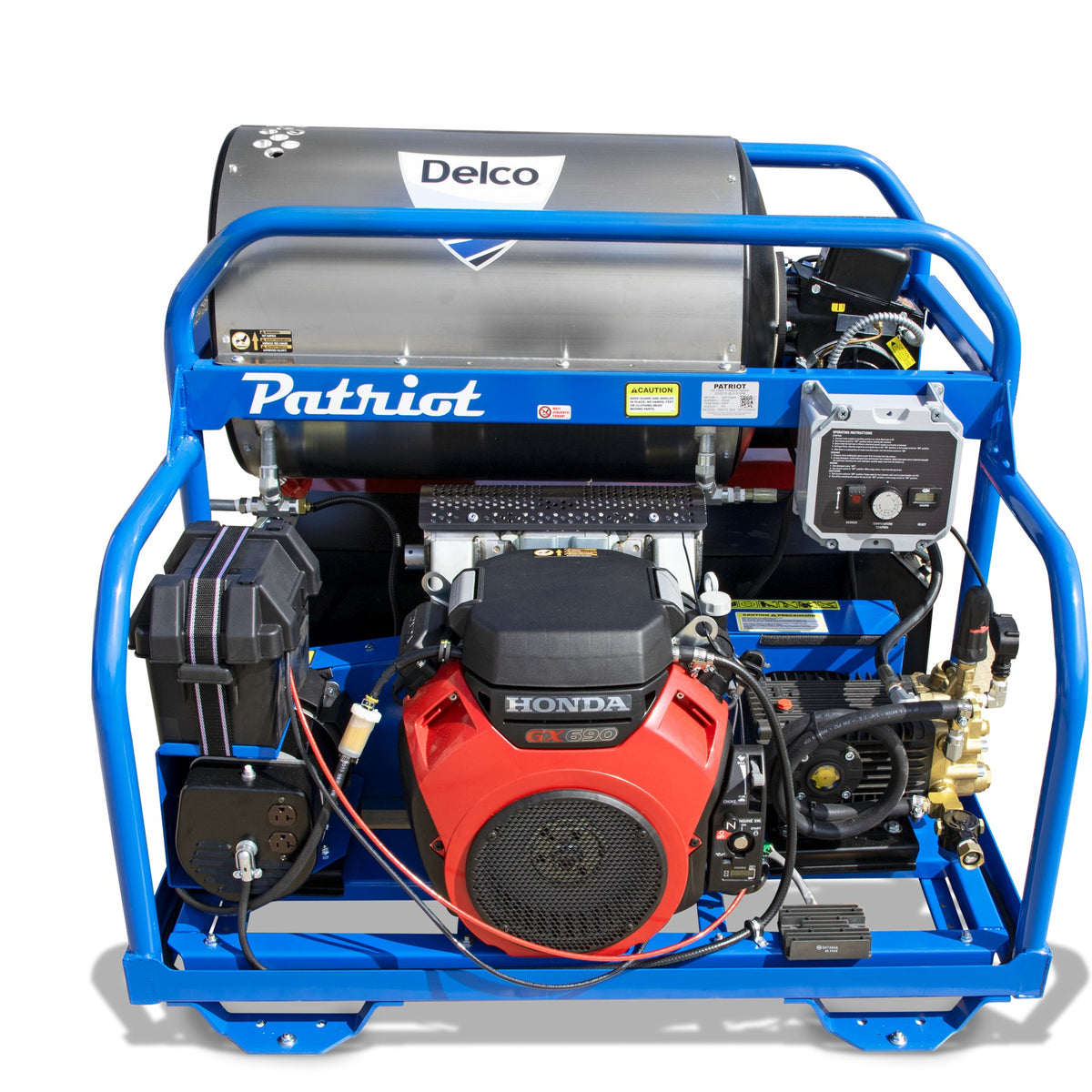

The Delco Patriot DPT3080241EAC11 (FNA part 65366) is a hot water pressure washer rated at 3000 PSI and 8.0 GPM, with 24,000 cleaning units. It is powered by a key-start Honda GX690 (688cc) gas engine that belt-drives a UDOR® industrial triplex pump. An oil-fired 120V burner runs on No. 1/No. 2 diesel or kerosene. The Patriot is designed for both portable and stationary use and has extended 15-gallon gas and 15-gallon diesel tanks. It suits contractors and facilities that need heavy-duty hot water cleaning for long run times. Delco backs all units with a 10-year frame, 5-year pump, and 3-year engine warranty. Not for sale in California.
Engine & Power
- Honda GX690 688cc V-twin horizontal engine with key-start (battery not included)
- Low oil shutdown
- 3.4 kW generator with one 120V duplex outlet
- 15 gal. gas tank
Pump
- UDOR® industrial triplex pump, belt-driven at 1750 RPM slow speed
- Forged brass manifold
- Ceramic-coated plunger sleeves
- Thermal relief valve
- External unloader with bypass hose
- Isolated pump and engine plate with vibration dampeners
Burner System
- 120V oil-fired burner system
- Burner fuels: No. 1/No. 2 diesel or kerosene
- 15 gal. diesel tank
- 1/2" Schedule 80 horizontal coil
- Corrosion-resistant stainless steel coil cover
- NEMA 4X electrical enclosure with burner on/off rocker switch and hour meter
Frame & Construction
- Heavy-duty 1-1/2" round tubular steel frame
- Powder-coated for corrosion resistance
- Removable feet for forklift handling and alternative mounting options
- Weight: 1050 lbs; dimensions: L 47" x W 43" x H 39"
Included & Optional Accessories
- Included: 3/8" x 50' steel-braided Armor Hose®
- Included: trigger gun and lance
- Included: quick-connect nozzles in 15°, 25°, and 40°
- Included: 10W-30 engine oil
- Optional: Analog Thermostat Kit (80657)
- Optional: Steam Kit (80664)
Have questions about the Delco Patriot or need help choosing the right hot water pressure washer? Call Pittsburgh Spray Equipment at 888-714-1410.
Specifications
| Pressure | 3000 PSI |
| Flow | 8.0 GPM |
| Cleaning Units | 24,000 |
| Engine | Honda GX690 (Key-start) |
| Displacement | 688cc |
| Pump | UDOR® industrial triplex |
| Drive | Belt |
| Pump Speed | 1750 RPM |
| Burner Fuel | No. 1/No. 2 diesel or kerosene |
| Burner Voltage | 120V |
| Gas Tank | 15 gal |
| Diesel Tank | 15 gal |
| Generator | 3.4 kW, one 120V duplex outlet |
| Hose | 3/8" x 50' steel-braided Armor Hose® |
| Weight | 1050 lbs |
| Dimensions | L 47" x W 43" x H 39" |
