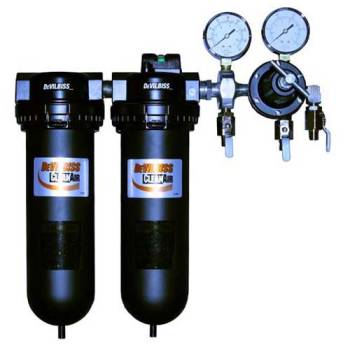

HFRL-512 DeVilbiss CleanAir Coalescer Air Filter Water Separator – 1 Regulator 3/4″. The DeVilbiss HFRL-512 CleanAir coalescer filters remove water, dirt and oil from the system down to .01 micron. DeVilbiss coalescer filter units are designed with a quick-release bowl and spin-off element for filter changes without tools. In addition, a filter-change indicator alerts the operator when the element requires changing.
Borosilicate glass microfiber filter is engineered for high flow, high efficiency, quick change and low pressure drop.
Ideal for most spray applications, especially where oil aerosols may be a problem.
Automatic bowl drain and 6′ hose eliminate oil and water buildup (standard feature). No need to manually drain.
Inlet Port: 3/4″ FNPT
Outlet Port: 1/4″ MNPT (3)
Regulated Ports: 2
Maximum Inlet Pressure: 150 PSI
Regulated Outlet Pressure: 0 – 125 PSI
Ball Valves: 3
Air Regulators: 1
First Stage Filtering Capacity: 5 Micron
Second Stage Filtering Capacity: .01 Micron
Service Bulletin: SB-6-148
Replacement Filter Element: HAF-15
Replacement Coalescer Filter Element: HAF-38
