DESCRIPTION

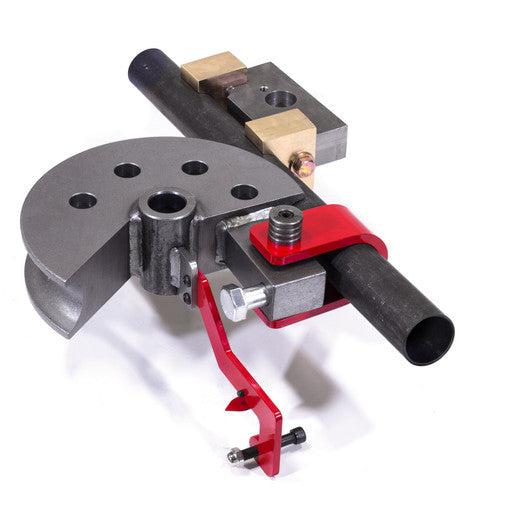

Fits in the Edwards 10 Ton Bender run off an Edwards Ironworker with the PowerLink System, this die is able to make bends up to 180° in Pipe, our dies produce smooth, even bends. The robust brass follower extends the life of the die.
- Designed for bending Pipe (ID) Schedule 40
- Durable brass follower provides extra-long life
- For use with Edwards 10 Ton Bender
- Precision machined components to ensure the highest quality bends
- Covered by Edwards 1-Year Parts Warranty
SPECIFICATIONS
| Type | Pipe Bender Die |
| Weight (Lbs.) | 98 |
| Material Dimension (In.) | 2 |
| Max. Bend (Deg.) | 180 |
| Center Line Radius (In.) | 7.5 |
| Height | 12.0000 |
| Length | 17.0000 |
| Width | 24.0000 |
| Weight | 115.0000 |
