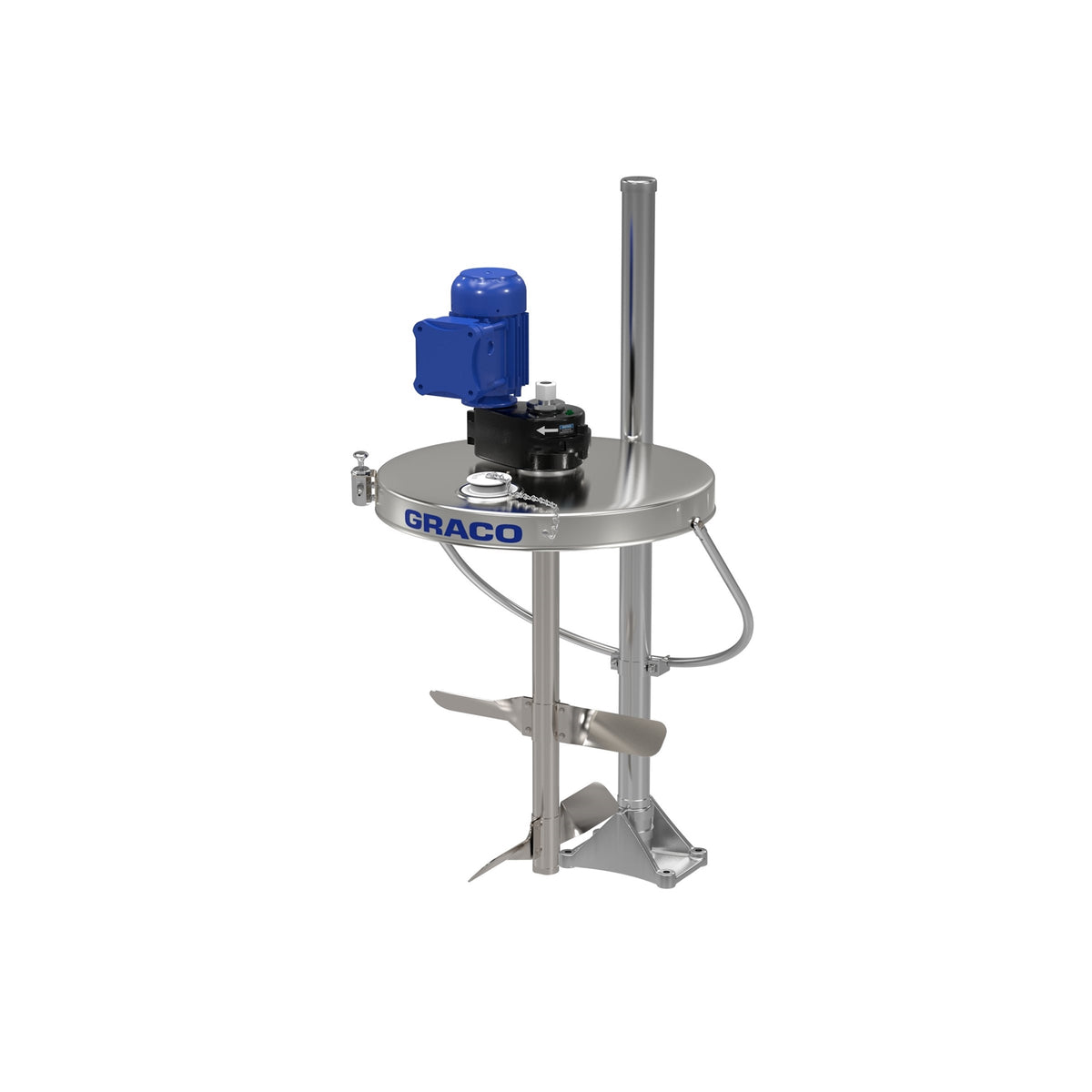

Heavy-duty, electric, back-geared agitator (ATEX) mixes and maintains suspension of industrial coatings stored in 55 gallon (208 liter) drums.
For advanced control and energy savings, switch to electric agitators.
Feel free to call or chat with us for recommendations.
📦
Ships in 6-10 days, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Electric agitators are up to 5 times more efficient than pneumatic agitators.
- Speed remains constant, regardless of material level in tank.
- Quiet electric motor improves work environment.
UPC Product: 00755652416753
Family Code: FAMCNV
Unit of Measure: EA
Height:
0 IN
| 0 CM
Length:
0 IN
| 0 CM
Width:
0 IN
| 0 CM
Volume:
0 FT3
| 0 M3
Chargeable Weight:
0 LBS
| 0 KG
Technical Specifications
| For Use With | 55 Gallon (208 Liter) Drum |
|---|---|
| Includes | Drum Cover, Elevator, Shaft, Blade |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Speed (RPM) | 50 |
| Maximum Viscosity (cP) | 3000 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (psi) | 100 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Motor Type | Electric |
| Power Rating (HP) | 0.75 |
| Power Rating (kW) | 0.37 |
| Wetted Material | Stainless Steel, Acetal, AF, Nylon, PTFE |
| Type | Agitator |
| Weight Range (kg) | 32-34 |
| Weight Range (lb) | 70-75 |
