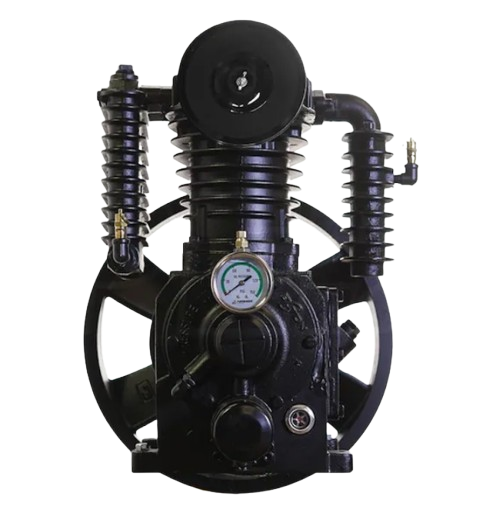

EMAX APP2I0524TP 5HP 24CFM Displacement 2 Stage Reciprocating Pressure Lubricated Bare Pump w/ flywheel

·         Solid Cast Iron Two-Stage 2-Cylinder Piston Pump

·         Oil pressure lubricated design to extend pump life

·         Rated at up to 70,000 hours* (Based on B-10 Bearing Life Rating)

·         All solid cast-iron - cylinders, crankcase, 16.75 flywheel, crankshaft & valve plates

·         24 CFM Displacement @ 0 PSI & 17 CFM @ 100 PSI

·         Pressure lubricating pump ensures oil to all critical components

·         Delivers constant lubrication even at speed as low of 100 RPMs

·         Ram-Tek - Solid Steel, Heavy Gauge Rods

·         Designed for maximum performance and durability

·         Cool-Tek - The Coolest Running Compressors In The Industry

·         Air Stream Technology provides 35% lower operating temperature

·         Reduces moisture build up and extends pump life

·         Industrial Grade Ball Bearings

·         For maximum performance and extended pump life

·         High Quality & Reliable Features

·         Large oil site glass, low oil shutdown & pressure gauge

·         Aftercooler for maximum cooling and large steel automotive type filters

·         Built-in head unloaders designed for continuous run & twin B-section belt drive

·         Specifications:

·         Maximum PSI of 175

·         Maximum RPM of 800; Minimum 450

·         Includes break-in oil; Holds 2.2 quarts of oil

·         Bolt Pattern: 10-1/4" x 5-3/8"

·         1-Year Standard Limited Manufacturer Warranty

·         Extends to 5-years with purchase of Maintenance Kit Model: EFKIT008WBS
