Features

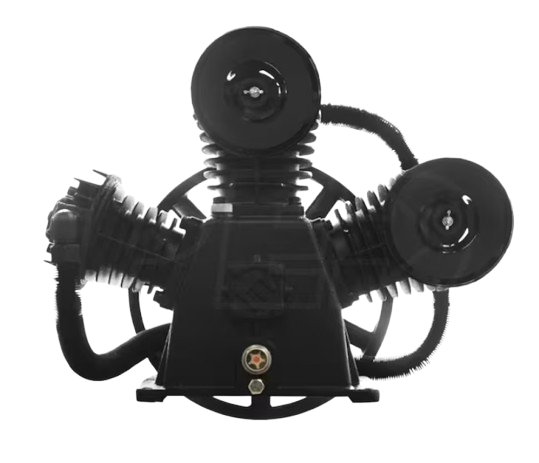

· Solid Cast Iron Two-Stage 3-Cylinder Piston Pump
· Rated at up to 60,000 hours* (Based on B-10 Bearing Life Rating)
· All solid cast-iron - cylinders, crankcase, 14.5" flywheel, crankshaft & valve plates
· 32 CFM Displacement @ 0 PSI & 26 CFM @ 100 PSI
· Splash lubricated pumps maximize life and energy savings
· Designed large with low RPM for long life and quiet operation
· Ram-Tek - Solid Steel, Heavy Gauge Rods
· Designed for maximum performance and durability
· Cool-Tek - The Coolest Running Compressors In The Industry
· Air Stream Technology provides 35% lower operating temperature
· Reduces moisture build up and extends pump life
· Industrial Grade Ball Bearings
· For maximum performance and extended pump life
· High Quality & Reliable Features
· Oversized site glass and large steel automotive type filters
· Built-in head unloaders designed for continuous run applications
· Twin B-Section Belt Drive; Ensures better belt gripage & longer belt life
· Specifications:
· Maximum PSI of 175
· Bolt Pattern: 10-1/4" x 5-3/8"
· Includes break-in oil - Holds 2 quarts of oil
· 1-Year Standard Limited Manufacturer Warranty
· Extends to 5-years with purchase of Maintenance Kit Model: EFKIT008WB
| Specifications | |
|---|---|
| Engine | |
| HP | 7.5 |
| Pump | |
| CFM | 32 |
| CFM Rated @ | 0 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
| Overview | |
| Product Category | Air Compressor Parts |
| Weight | 180 Pounds |
| Consumer Warranty | 1 Year |
| Product Length | 15 Inches |
| Product Width | 22 Inches |
| Product Height | 18 Inches |
| UPC | 810070052300 |
