Features

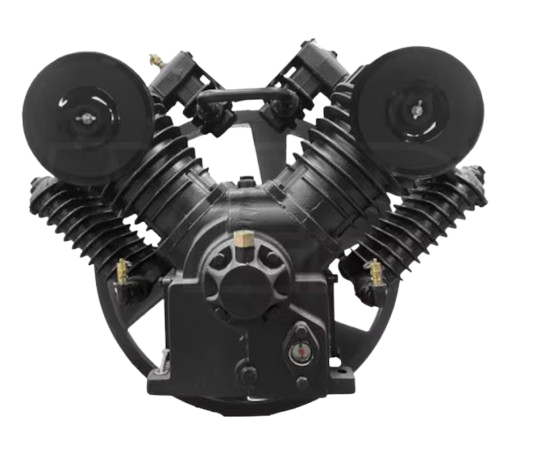

· Solid Cast Iron Two-Stage 4-Cylinder Piston Pump
· Rated at up to 60,000 hours* (Based on B-10 Bearing Life Rating)
· All solid cast-iron - cylinders, crankcase, flywheel, crankshaft & valve plates
· 43 CFM Displacement @ 0 PSI & 36 CFM @ 100 PSI
· Splash lubricated pumps maximize life and energy savings
· Designed large with low RPM for long life and quiet operation
· Ram-Tek - Solid Steel, Heavy Gauge Rods
· Delivers maximum performance and durability
· Replaceable bearing on crank journal and on the wrist pin journal
· Cool-Tek - The Coolest Running Compressors In The Industry
· Air Stream Technology provides 35% lower operating temperature
· Reduces moisture build up to increase life span
· Industrial Grade Ball Bearings
· For maximum performance and extended pump life
· High Quality & Reliable Features
· Oversized site glass and large steel automotive type filters
· Aftercooler for maximum cooling and twin B-section belt drive
· Built-in head unloaders designed for continuous run applications
· Specifications:
· Maximum PSI of 175
· Bolt Pattern: 9.25" D x 9.25" W
· Includes break-in oil; Holds 2.2 quarts of oil
· 1-Year Standard Limited Manufacturer Warranty
· Extends to 5-years with purchase of Maintenance Kit Model: EFKIT008WB
| Specifications | |
|---|---|
| Engine | |
| HP | 10 |
| Pump | |
| CFM | 43 |
| CFM Rated @ | 0 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
| Overview | |
| Product Category | Air Compressor Parts |
| Weight | 285 Pounds |
| Consumer Warranty | 1 Year |
| Product Length | 17 Inches |
| Product Width | 29 Inches |
| Product Height | 21 Inches |
| UPC | 810070052294 |
