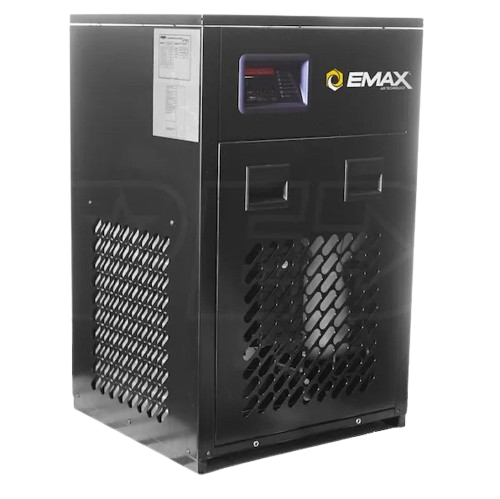

Premium Industrial 115 CFM Refrigerated Air Dryer
· Chills the air to condense & remove moisture; runs on 115 Volt, single phase, 11 Amp power
· 230 PSI maximum; maximum inlet temp: 140°F; 37°F - 50°F dewpoint; designed for 1-1/2" pipe
· Maximum ambient temperature: 122°F; for use with compressors that do not have aftercoolers
5 Micron Pre-Filter
· Removes larger dust & dirt particles from the air supply so the dryer can work more efficiently
1 Micron Active Coalescing Filter
· Removes oil & water particles from the air; cleaner, drier air improves tool life & project results
Refrigerated Air Inlet Inner Cooler
· Trouble-free high temperature cooling for consistent, dry air
Automatic Drain System
· Eliminates the need for daily maintenance
Outlet Air Baffle Heater
· Prevents condensation on outlet air piping
Side Mounted Condenser & Fan Motor
· Easy to reach & service through the cabinet doors- no screws to slow you down
· Uses environmentally friendly 134A refrigerant
Heavy Duty Steel Cabinet & Safety Shut-Off Valve
· Meets the demands of industrial use; valve shuts the compressor down if it gets over or below a safe temperature
2 Year Limited Factory Warranty; 5 Years On Heat Exchanger
| Category | Details |
|---|---|
| Product Category | Air Compressor Accessories |
| Air Dryer | Yes |
| Dryer Voltage | 115V 1-Phase |
| Air Dryer CFM | 115 |
| Max PSI | 230 |
| Max Inlet Temp. Rating | 140 |
| Max Ambient Temp. Rating | 122 |
| Non-Cycling | Yes |
| Inlet Fittings | 1-1/2" |
| Outlet Fittings | 1-1/2" |
| Aftercooler | No |
| Pre-Filter | Yes |
| Post-Filter | Yes |
| Wall Mountable | No |
| Alarm Lights | No |
| Auto Drain | Yes |
| Regenerative | No |
| Rated HP | 20 |
| Weight | 180 Pounds |
| Consumer Warranty | 2 Years |
| Commercial Warranty | 2 Years |
| Product Length | 26 Inches |
| Product Width | 23 Inches |
| Product Height | 36 Inches |
| Power Type | Electric |
| UPC | 815002013343 |
