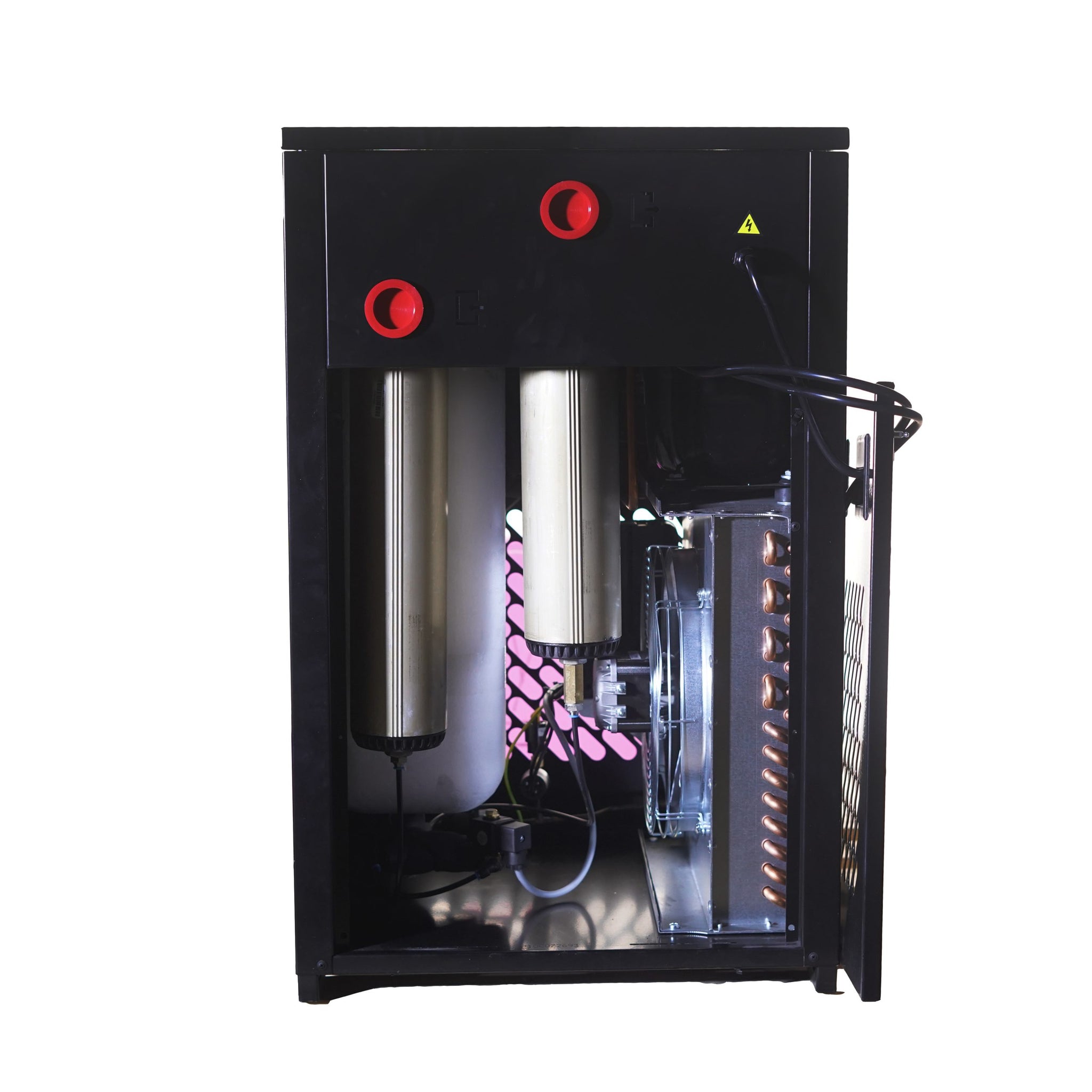

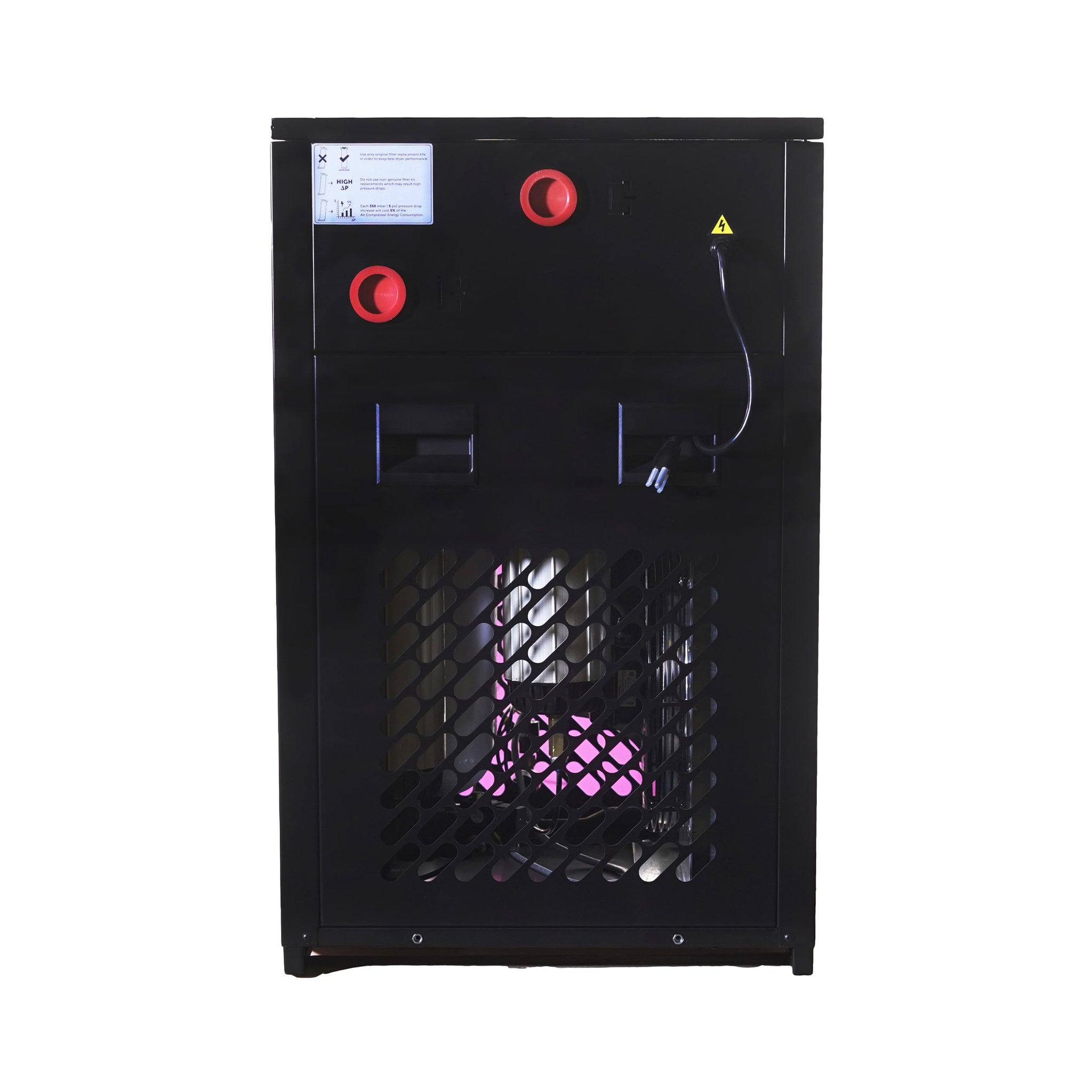

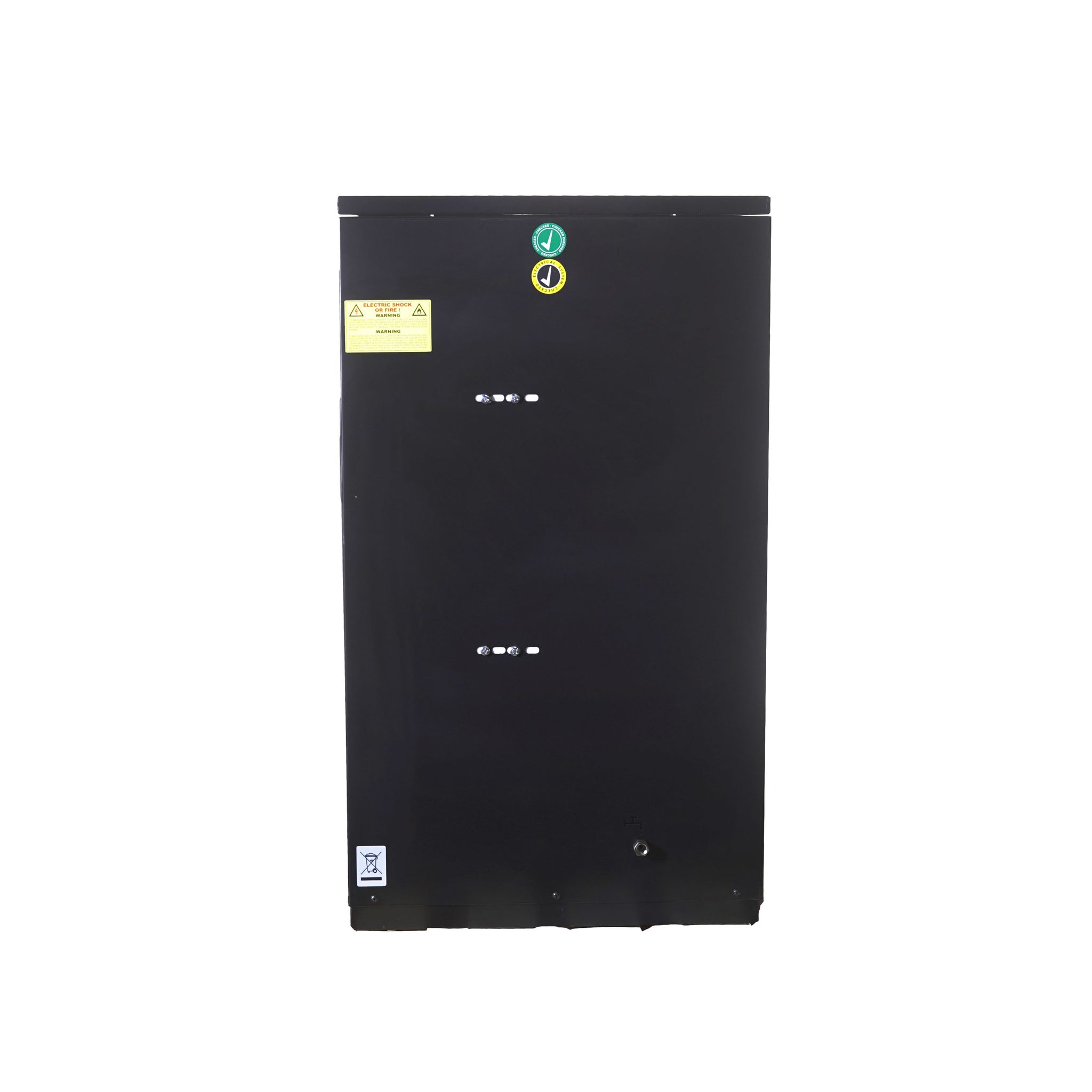

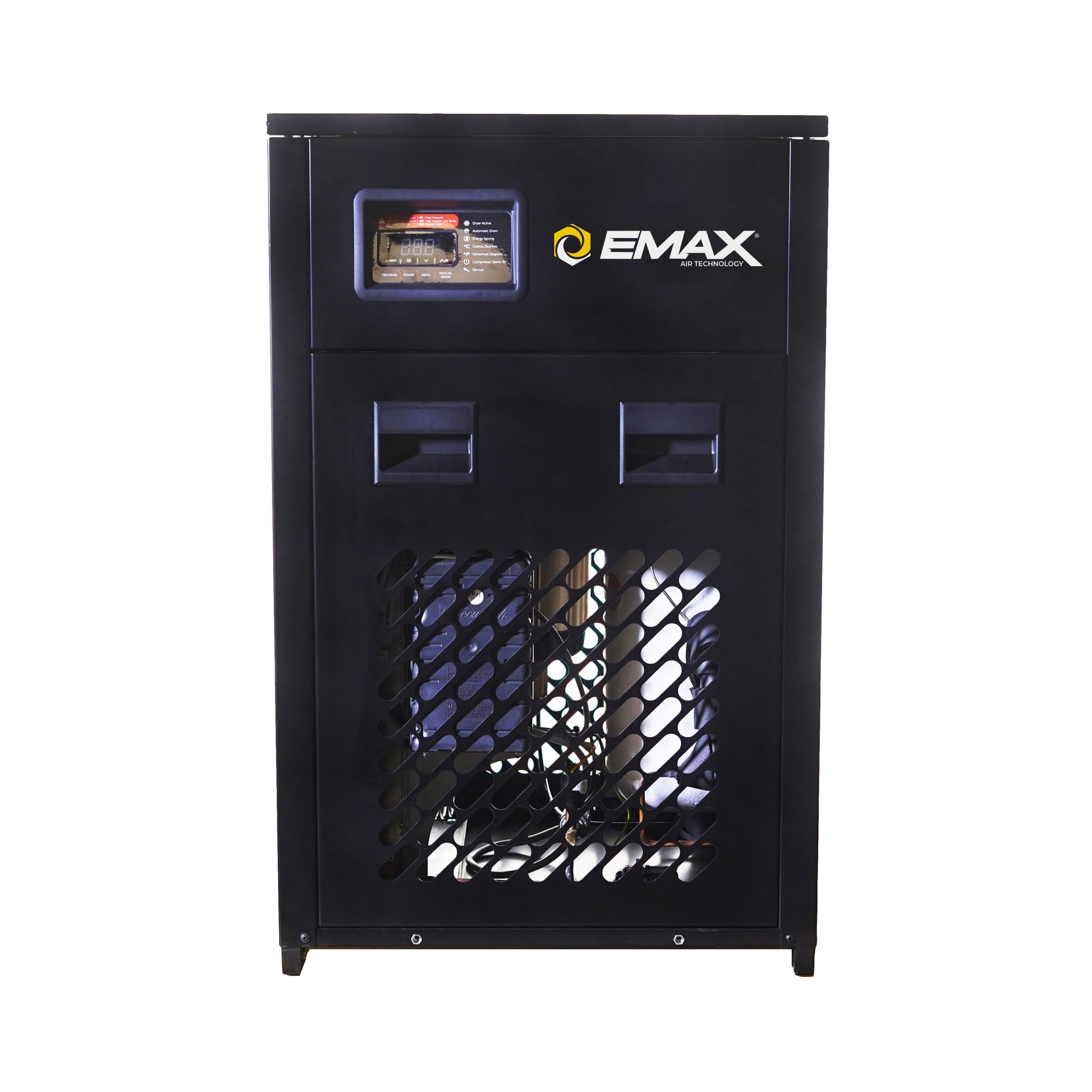

The EMAX EDRCF1150144 is a 144 CFM refrigerated air dryer with a built-in coalescing filter and auto drain. It runs on 115V single-phase power and is rated up to 230 PSI. It suits shops that need to remove moisture, oil, and solids from a compressed air system rated up to 144 CFM.
Air Treatment & Filtration
Refrigerated Drying: Treats compressed air flows of up to 144 CFM.
Built-In Coalescing Filter: Removes oil and solids from the air stream.
Drain Trap: The coalescing filter sends dirty matter and particulates into a drain trap.
Auto Drain: Includes an automatic drain.
Electrical Requirements
Power Supply: 115V, single phase.
Full Load Amps: 17.80 FLA (with 1.15 service factor).
Recommended Breaker: 20 amp.
Certifications: UL/CSE.
Operating Limits
Maximum Pressure: Rated up to 230 PSI.
Max Ambient Temperature: 122°F.
Max Inlet Temperature: 140°F.
Refrigerant: Uses R134A refrigerant.
Size & Maintenance
Uncrated Dimensions: 22" L x 20" W x 35" H, 200 lbs.
Crated Dimensions: 36" L x 36" W x 44" H, 250 lbs.
Service Kit: Compatible with service kit FKIT013A.
Need help sizing a refrigerated air dryer for your compressor? Call Pittsburgh Spray Equipment at 888-714-1410 and we'll help you choose the right setup for your shop.
Specifications — EDRCF1150144
| Weight | 253 lbs |
| Phase | 1 |
| CFM | 144.00 |
| Silent Air | N |
| Smart Air | N |
| Pump Riser | N |
| Belt Tensioner | N |
| Mag Starter | N |
| Radiator | N |
| FLA + 1.15 Service Factor | 17.80 |
| Recommended Breaker | 20.00 |
| Max PSI | 230.00 |
| Uncrated Length | 22 |
| Uncrated Width | 20 |
| Uncrated Height | 35 |
| Crated Length | 36 |
| Crated Width | 36 |
| Crated Height | 44 |
| Certifications | UL/CSE |
| Service Kit | FKIT013A |
| Refrigerant Type | R134A |
