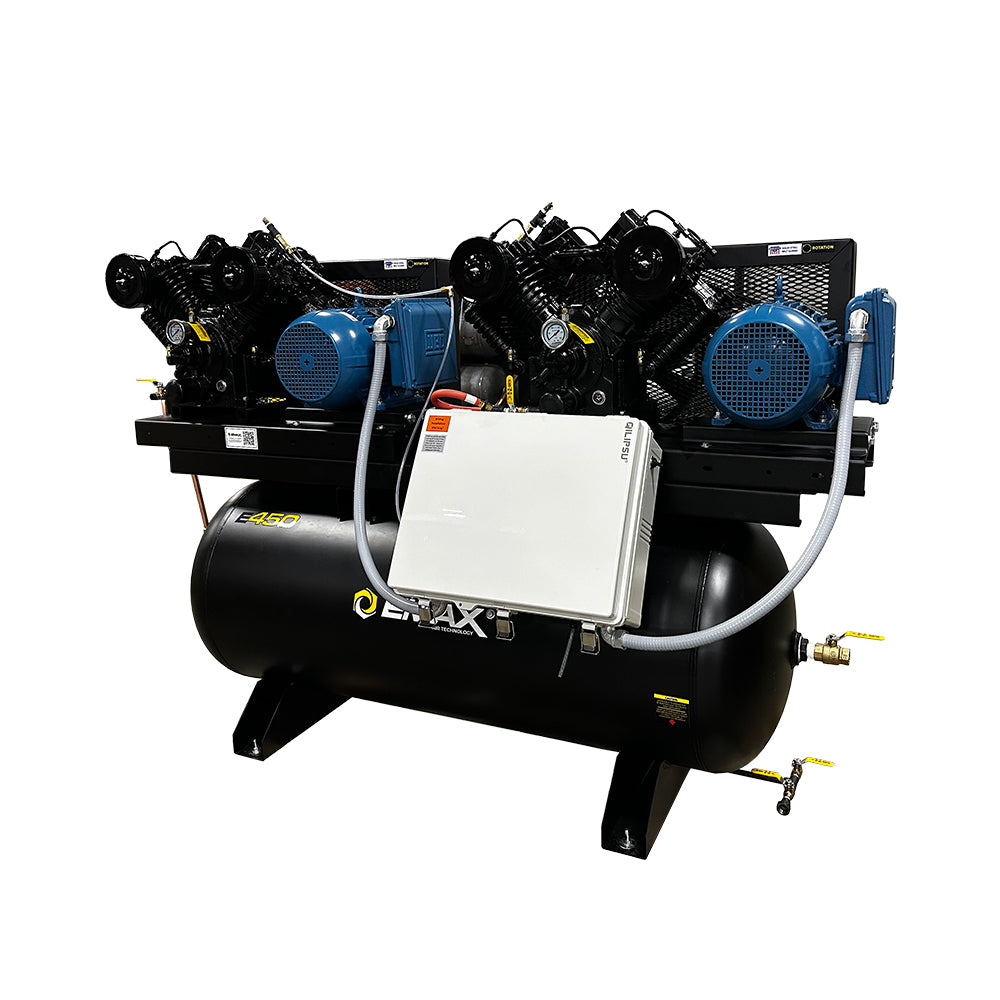

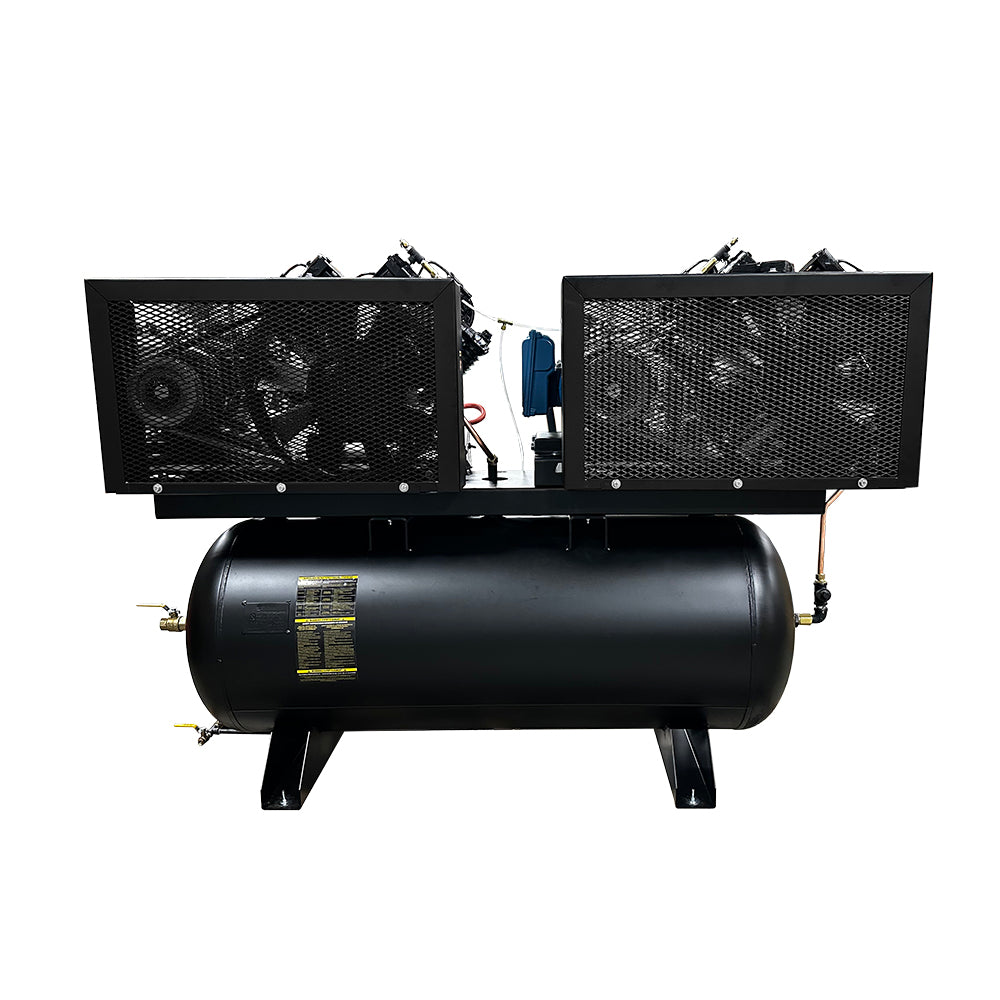

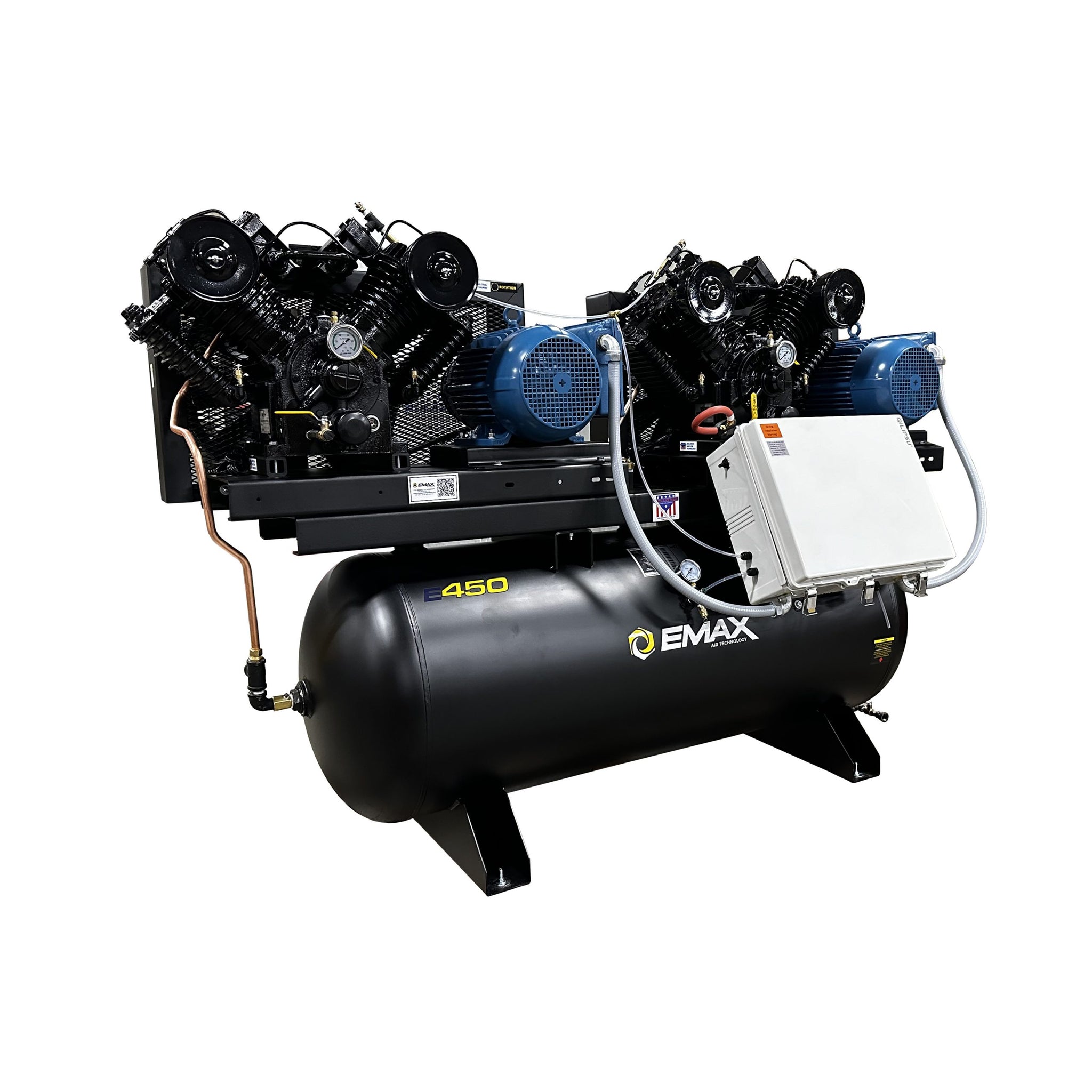

EMAX EP07DW120V3-208 NEMA4 Compliant Weather-Resistant Duplex 15HP Air Compressor, 62 CFM, 208V 3-Phase, 120-Gal Horizontal Tank with Alternating Switch

The EMAX EP07DW120V3-208 is a NEMA4 compliant, weather-resistant duplex air compressor rated at 15 HP and 62 CFM. It runs on 208V 3-phase power and is built on a 120-gallon horizontal tank with an alternating switch. Its pressure-lubricated, cast iron pump design suits shops and facilities that need dependable air in high-stress, continuous-duty environments.

Duplex, Weather-Resistant Package

• NEMA4 Compliant: The weather-resistant design is NEMA4 compliant.

• Duplex Configuration: The duplex setup includes an alternating switch.

• Power and Output: The 15 HP unit delivers 62 CFM on 208V 3-phase electrical service.

• Tank: The 120-gallon horizontal tank provides air storage.

Pressure Lubrication System

• Gear-Driven Oil Pump: An oil pump mounted to the rear of the crankshaft generates positive oil pressure. It delivers a continuous flow of oil to each bearing point, which reduces friction and internal wear and keeps bearings cool.

• Rifle-Drilled Crankshaft and Connecting Rods: Oil flows directly to key wear points, including bearings and the piston pin, for continuous lubrication.

• Spin-On Oil Filter: An automotive-style spin-on filter keeps the oil clean and simplifies maintenance during oil changes.

• Analog Oil Pressure Gauge: Operators can monitor oil pressure accurately.

• Critical Components Coverage: Unlike splash-lubricated systems, pressure lubrication delivers oil precisely where it's needed. This reduces friction, wear, and heat under demanding conditions.

100% Cast Iron Pump Construction

• Cast Iron Major Components: The crankcase, cylinder heads, cylinders, connecting rods, crankshaft, and high-pressure piston are all cast iron. Cast iron offers greater durability and rigidity than aluminum.

• Cast Iron High-Pressure Pistons: These pistons are designed to withstand heavy loads and help prevent cylinder scoring and pump failure.

• CNC-Machined Solid Cast Iron Connecting Rods: The rods provide maximum rigidity and strength, including at the crankshaft end where aluminum rods commonly fail.

• Fully Rebuildable Rods: Replaceable bearing inserts and wrist pins allow the connecting rod assembly to be rebuilt rather than thrown away, extending pump life.

Sealing and Valve Design

• Four-Ring Piston Design: Two oil control rings remove excess oil on the downstroke, and two overlapping compression rings seal under compression to prevent blow-by. Together they minimize compression loss, reduce oil carryover, and extend ring life.

• CNC-Machined Disc Valves: These concentric ring valves are precision surface-ground for superior sealing and extended service life. They are significantly more reliable than feather or fixed reed valves.

• Quick Valve Service: To service a valve, remove the retainer, lift out the valve for inspection, and reinstall it within minutes.

• Head Unloader Ready: All valves are engineered to support an automatic head unloader system. Head unloaders relieve the intake valve during constant-run operation, which improves pump cooling and reduces wear.

• Non-Oil-Absorbent Gaskets: High-quality gaskets minimize oil leakage and reduce maintenance requirements.

Heavy-Duty Flywheel

• Cast Iron Mass: The heavy-duty cast iron flywheel generates greater kinetic energy. This reduces amp draw and lowers overall energy consumption.

• Multiple B-Groove Belts: The larger belt contact surface area helps extend compressor belt life.

• Optimized Cooling Fins: The fins are engineered to enhance pump cooling capacity.

Need help confirming this duplex compressor is the right size for your air demand and electrical service? Call Pittsburgh Spray Equipment at 888-714-1410 and our team will help you choose the right setup.

Specifications — EP07DW120V3-208
