Overwhelmed by compressed air noise, maintenance headaches, and moisture in your lines?

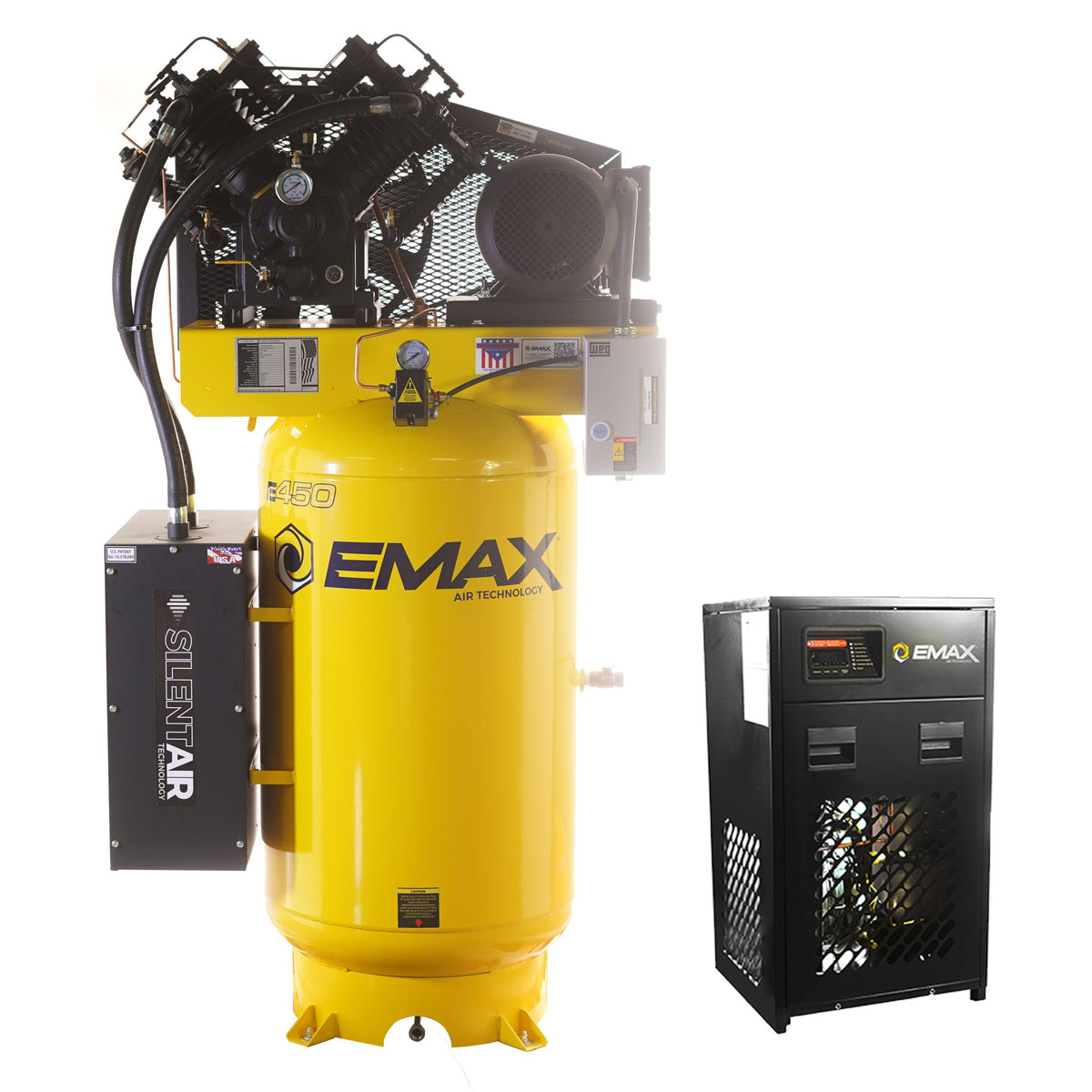

This Silent Air Industrial Air Compressor Package delivers ultra-quiet, heavy-duty performance engineered to outlast standard commercial units. Powered by a 100% solid cast iron pump and fully equipped with an integrated air drying system, this complete package provides clean, dry, commercial-grade air with up to 50% less operating noise.
Key Features & Benefits
-
Patented Noise Suppression: Operates at or below conversational volume. The specialized silencer uses noise-reducing baffle plates and high-capacity filter media to cut noise by up to 50% without restrictively enclosing the unit.
-
100% Solid Cast Iron Pump: Built completely from cast iron (crankcase, heads, cylinders, rods, crankshaft, and pistons) with zero hidden aluminum components for maximum thermal stability and longevity.
-
Automotive-Style Pressure Lubrication: Features a gear-driven oil pump, rifle-drilled crankshaft/rods, spin-on oil filter, and a liquid-filled pressure gauge to deliver positive oil flow directly to high-friction wear points.
-
Complete Air Treatment Package: Includes a integrated refrigerated air dryer with dual built-in pre-filters (.001 micron and .005 micron coalescing) to eliminate line moisture and protect your air tools.
-
Low-Maintenance Belt Drive & Tensioner: Utilizes heavy-duty B/C-width multi-belt drives and an effortless dual-bolt adjustment system—eliminating the need for pry bars during routine service.
-
Automated Moisture Management: Comes standard with a dual-timer electronic auto drain (adjustable from 1 to 45 minutes) featuring a noise-dampening discharge muffler.
Detailed Component Specifications
Heavy-Duty Cast Iron Flywheel & Cooling
-
Deep-fin cylinder design paired with a pump-mount riser plate for 360-degree airflow under the oil reservoir.
-
Engineered kinetic flywheel mass reduces motor amp draw and operating temperatures.
Industrial Grade Internal Assembly
-
Pistons: Four-ring design with precision overlapping compression and oil-control rings to minimize oil carryover and blow-by.
-
Valves: CNC-machined concentric ring disc valves surface-ground for a tight seal and easy inspection.
-
Connecting Rods: Solid cast iron with rifle-drilled oil passages, replaceable bearing inserts, and complete rebuildability.
Smart Systems & Continuous Duty Operations
-
Optional Head Unloaders: Recommended for high-duty applications (>40% cycle) to reduce starting load, dissipate heat, and lower electrical amp draw by up to 60% while idling.
-
Servicing Hardware: Includes an oil pump bleeder valve for fast priming and an adjustable oil pressure regulator.
