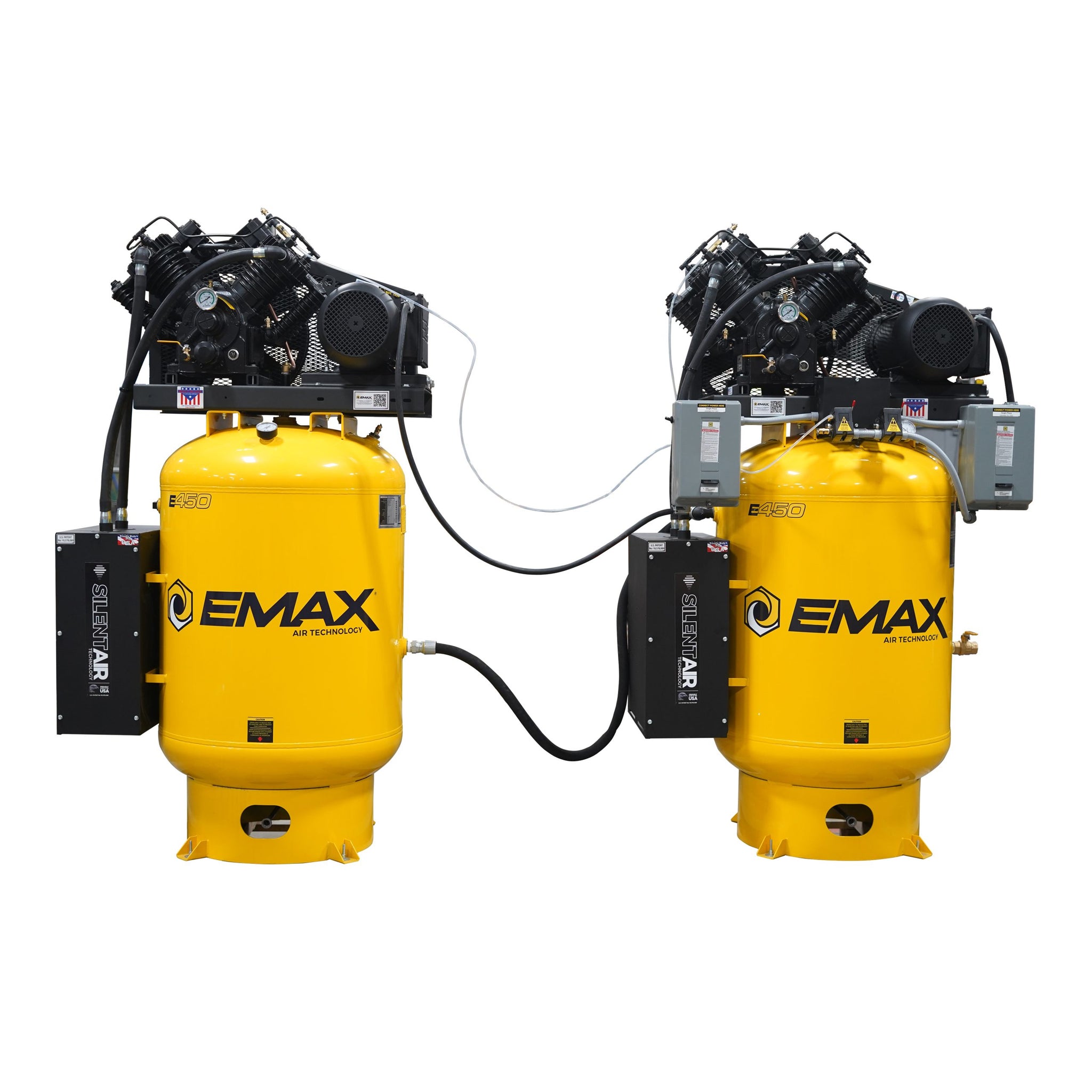

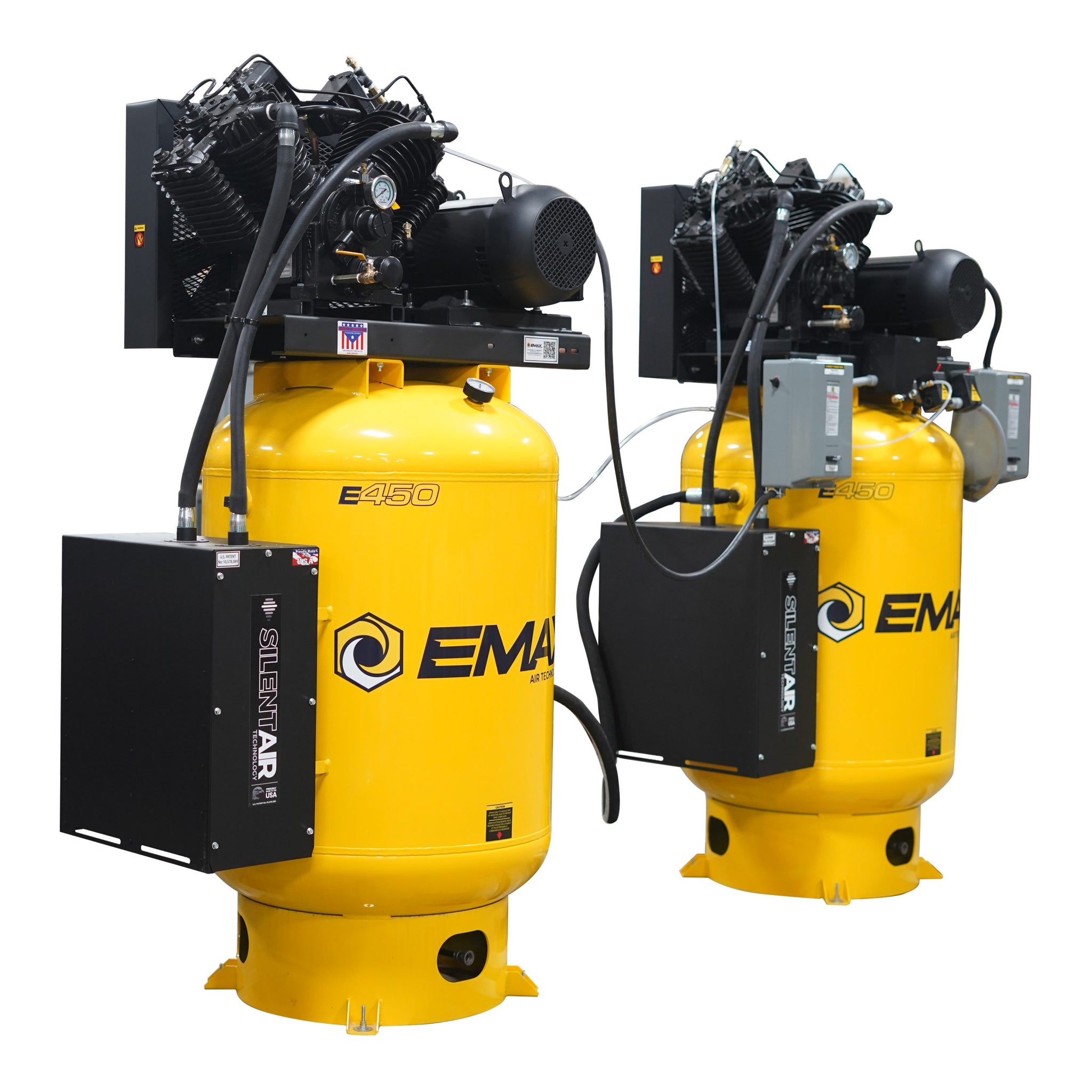

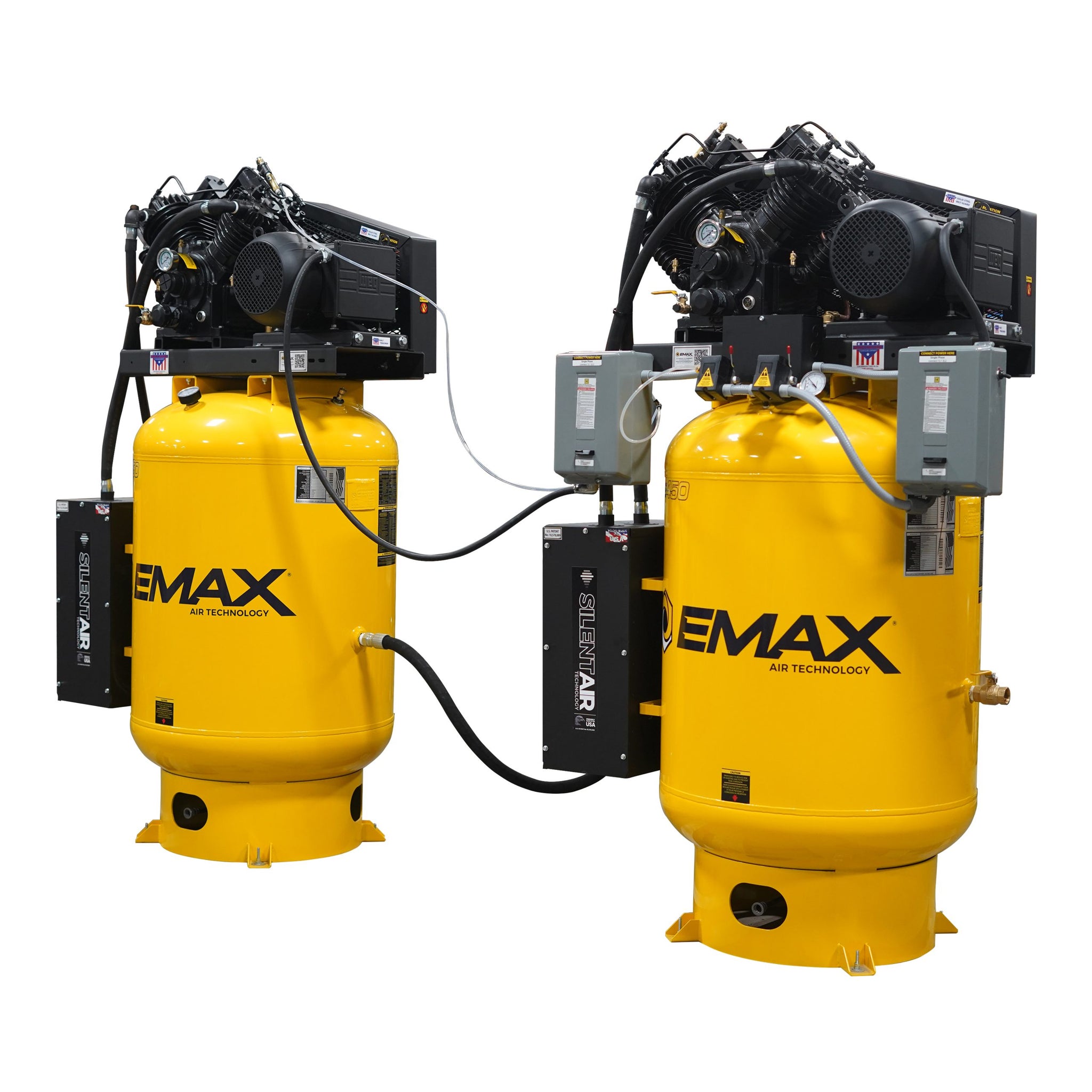

The EMAX ESPR10A120V3-460 pairs two SOLO Silent Air™ piston compressors in an alternating setup, each with a 10 HP V4 two-stage design and radiator aftercoolers. The package is rated at 76 CFM with a listed 120-gallon vertical tank size and runs on 460V, 3-phase electric power. It suits facilities with 460V 3-phase service that want a two-compressor alternating air system.
Alternating Two-Compressor Configuration
Two SOLO Units: Includes (2) EMAX SOLO compressors configured for alternating operation.
Silent Air™ Design: Part of EMAX's Silent Air™ compressor line.
Vertical Tank: Listed 120-gallon tank size in a vertical orientation.
Two-Stage V4 Pump
Pump Model: APP4V1043TP two-stage piston pump.
Pump Type: Pressure-type pump with a pump riser.
Rated Output: 76 CFM.
Estimated Pump Life: 60,000 hours.
Motor & Drive System
Motor: 10 HP TEFC (totally enclosed, fan-cooled) electric motor.
Power: 460V (+/- 10%), 3-phase.
Belt Drive: Four-belt drive with a belt tensioner.
Mag Starter: Magnetic starter included.
Air Treatment & Connections

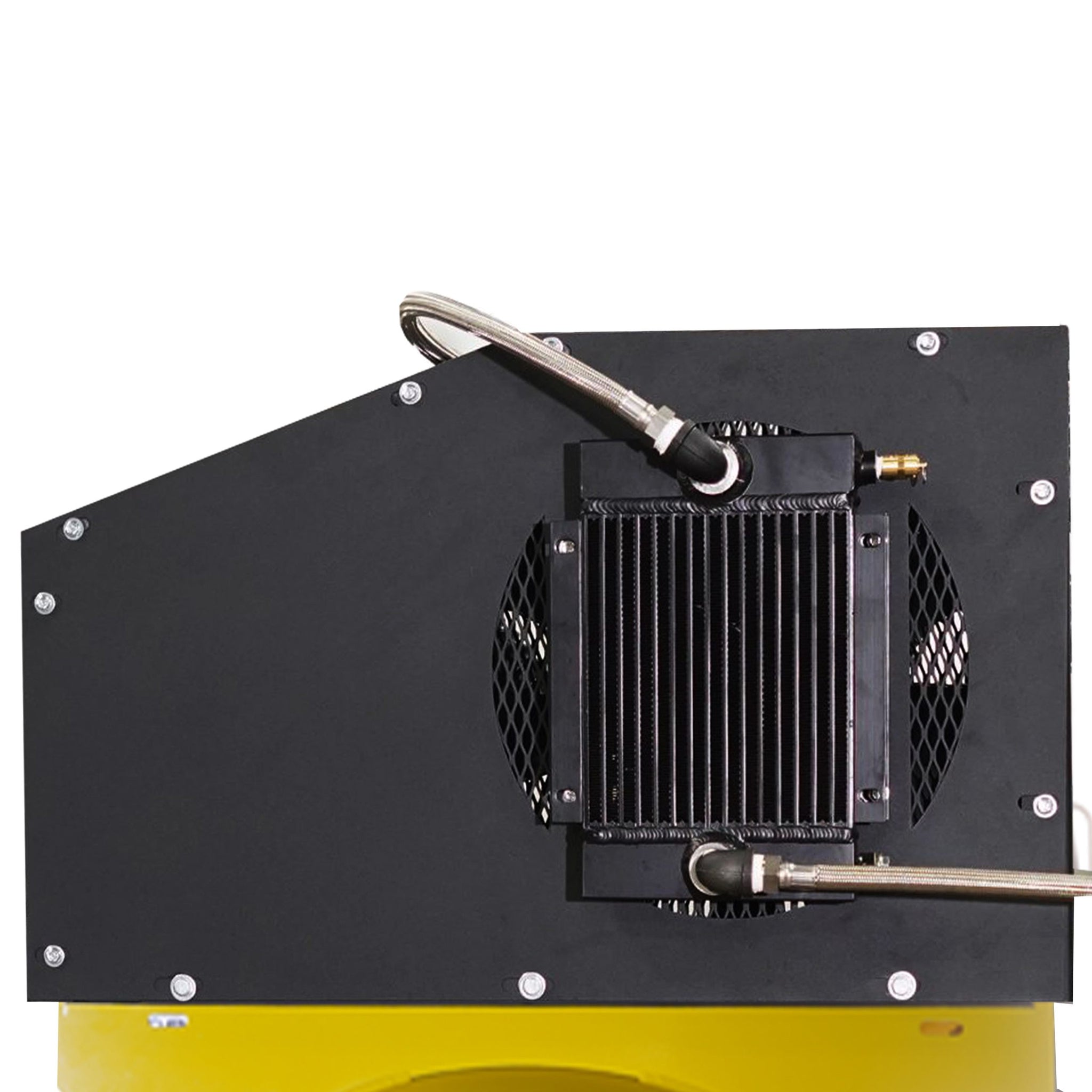

Radiator Aftercoolers: Equipped with radiator aftercoolers.
Automatic Tank Drain: Includes an automatic tank drain.
Outlet Size: 1" outlet.
Need help confirming this alternating EMAX system fits your air demand and electrical service? Call Pittsburgh Spray Equipment at 888-714-1410 for sizing help.
Specifications — ESPR10A120V3-460
| HP | 10 |
| Tank Size | 120 |
| Voltage +/- 10% | 460 |
| Phase | 3 |
| Drive Type | Electric |
| Tank Drain | Automatic |
| Pump Type | Pressure |
| CFM | 76.00 |
| Silent Air | Y |
| Smart Air | N |
| Compressor Type | Piston |
| Motor Type | TEFC |
| Tank Orientation | Vertical |
| Outlet Size | 1" |
| Belt Count | 4 |
| Pump Stage | 2 |
| Pump Model | APP4V1043TP |
| Pump Riser | Y |
| Belt Tensioner | Y |
| Mag Starter | Y |
| Radiator | Y |
| Estimated Pump Life (Hours) | 60000.00 |
