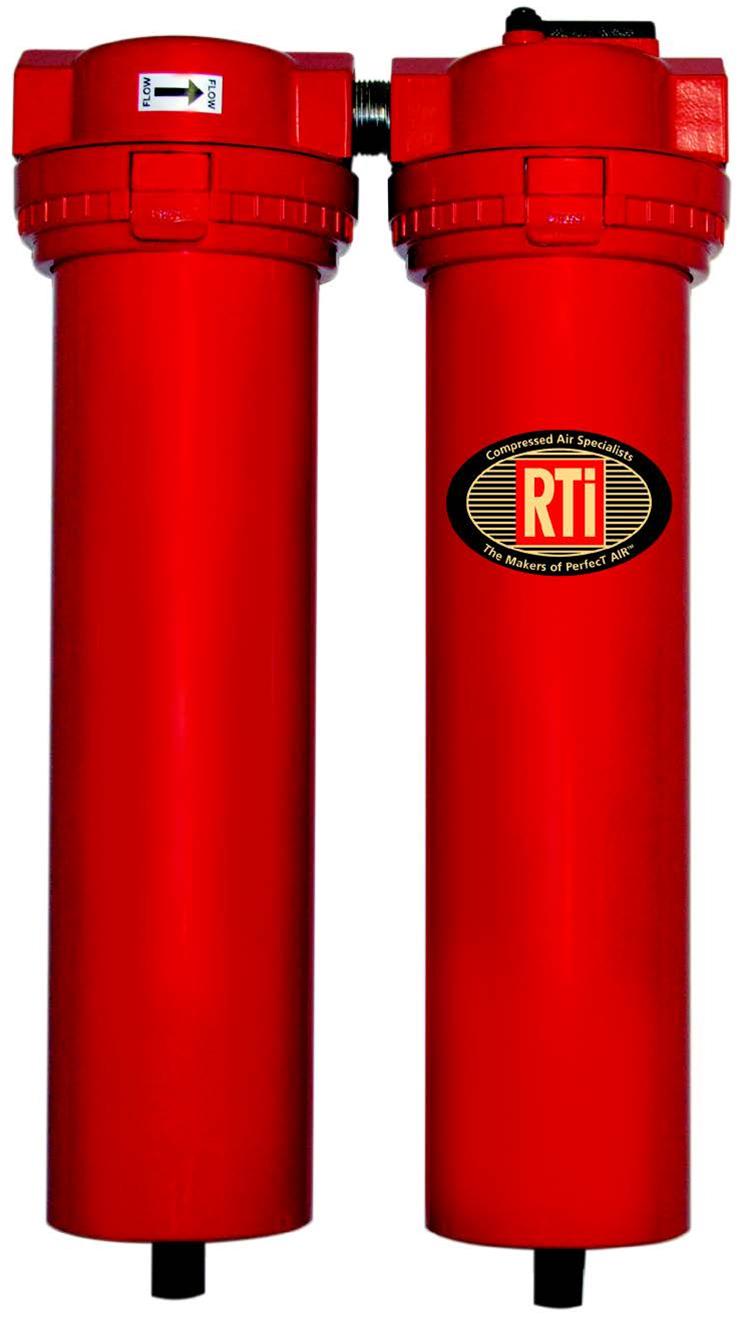

EX206i 3/4" Inlet/Outlet 0.01 Micron Eliminex Filter/Coalescer Combo w/ Different Pressure Indicator

EX206i 3/4" Inlet/Outlet 0.01 Micron Eliminex Filter/Coalescer Combo w/ Different Pressure Indicator

Regular price
$766.49
Sale price
$766.49
Quantity must be 1 or more


EX206i Eliminex Filter/Coalescer Combo, 0.01 micron, 3/4" inlet/outlet with Diff. Press. Indicators

Features & Benefits
• 0.01 micron final filtration
• Equipped with two auto drains
• Quick disconnect clamp ring design
• Spin-on/spin-off element
• Removes compressor oils from air
• Removes water, dirt and oil in mainline
• Automatic drains with manual override
• 99.99998% effective at oil removal
• Available with differential pressure indicator (EX206i)
• Inverse-Flow® Techology with 6" pre-filter depth
• The best filter product for mainline applications
• No tools for maintenance
• Extremely long element life, washable 1st stage element
• Heavy duty metal bowl construction
• Mainline filters handle 20 hp

Applications
• Mainline filters located 25+ feet from compressor
• Excellent pre-filter to refrigerated dryer

Specifications
• Replacement Elements: 1P-090 & 3C-090
• Max. Air Pressure: 150 PSIG
• Max. Operating Temp: 125°F
• Max. Flow: 90 SCFM
• ¾" Ports


;
