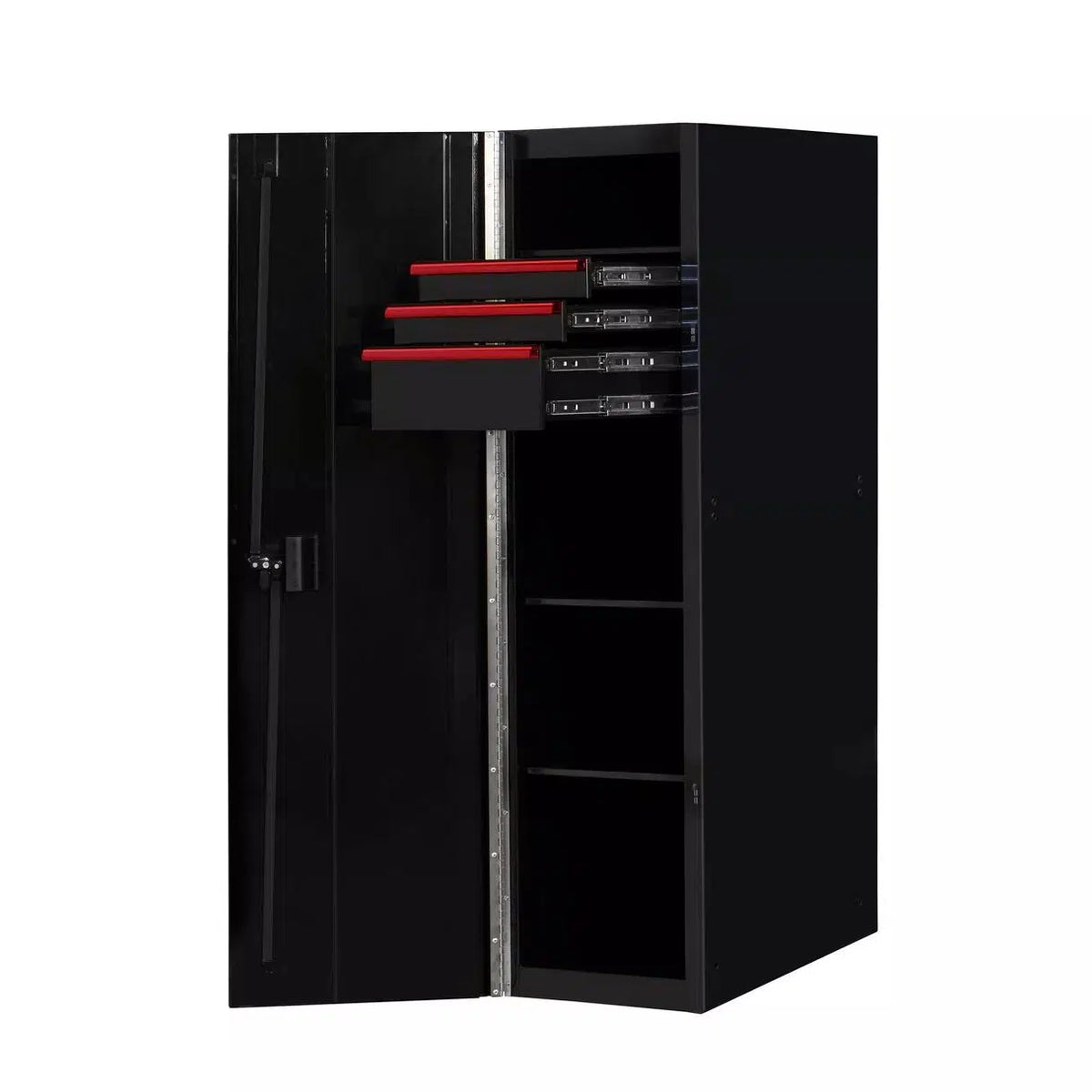

Extreme Tools® RX Series, 19″ 3 Drawer and 3 Shelf Side Locker
The Extreme Tools® RX Series 19 inch 3 Drawers 3 Shelves Side Locker is the perfect way to add additional space to your professional workstation setup. It attaches to the RX Series 55″ and 72″ roller cabinets, adding plenty of storage that includes both deep and standard drawers and shelving for your large, bulky items.
This Side Locker has two adjustable shelves that you can position according to your needs, plus one sturdy fixed shelf. The drawers, which open smoothly and easily on full-extension ball-bearing slides, provide additional storage space. There are two standard drawers, for at-a-glance storage, and one deep drawer for bulky items. You can load up to 100 lbs. in the standard drawers, and 200 lbs. in the deep one.
For maximum flexible storage, you can combine the RX192503SL cabinet with other Extreme Tools solutions, or purchase two and bolt one on each side of your roller cabinet. The heavy-duty support bracket fastens it securely to your roller cabinet and means no casters are needed.
Out Of Sight And Secure
Load all shapes and sizes of tools and parts into this heavy-duty side cabinet, and then lock it up for peace of mind. You can key the lock to match your roller cabinet and other workstation components, or key it differently to secure special items.
Extreme Tools 19 Inch 3 Drawers 3 Shelves Side Locker Available In A Wide Range Of Stylish Colors
The 19 inch 3 Drawers 3 Shelves Side Locker comes in seven vibrant power-coated color combinations:
- RX1903SLBK, Black with Chrome Handles
- RX1903SLBL, Blue with Chrome Handles
- RX1903SLBKBU, Black with Blue Handles
- RX1903SLBLBK, Blue with Black Handles
- RX1903SLBKRD, Black with Red Handles
- RX1903SLGNBK, Green with Black Handles
- RX1903SLORBK, Orange with Black Handles
- RX1903SLMBBK, Matte Black with Black Handles
The Best Way To Expand Your Extreme Tools® Roller Cabinets
The RX192503SL 19 inch 3 Drawers 3 Shelves Side Locker is designed to expand the functionality of the following 55″ and 72″ RX Series roller cabinets:
- 72″ 19 Drawer Roller Cabinet (RX722519RC)
- 55″ 12 Drawer Roller Cabinet (RX552512RC)
Overall Dimensions: 19.1″W x 25.1″D x 60.9″H
Drawer Inside Dimensions:
- 2 drawers: 14.8″W x 22.1″D x 2.1″H
- 1 drawer: 14.8″W x 22.1″D x 5.1″H
19″ Side Locker Features and Benefits:
- 25″ cabinet depth
- Mounts with heavy-duty support bracket — no additional wheels or casters needed
- Can be mounted on left or right side of the roller cabinet, or purchase two and put one on each side
- Two adjustable shelves and one fixed shelf
- Three drawers with heavy-duty full-extension ball bearing slides (two 100-lb drawers and one 200-lb drawer)
- High-gloss AkzoNobel powder coat finish resists scuffs and stains
- Full-width, polished extruded aluminum drawer pulls
- Available in seven color combinations with chrome accents
- Secure, tubular coded lock system can be keyed the same as your roller cabinet (optional)
- Premium PVC drawer liners keep both your tools and drawers free from damage
- Attaches to RX Series 55″ and RX Series 72″ roller cabinets
Weight | 160 lbs | Dimensions | 19.1 × 25.1 × 60.875 in |
---|---|---|---|
Color Selection |
Black-Aluminum, Blue-Aluminum, Black – Blue, Black – Red, Blue – Black, Green – Black, Matte Black – Black, Orange – Black |
Size |
19" |
Finish |
German AkzoNobel High Gloss Powder Coat |
Warranty |
Limited 5 Year |
Lock Style |
ABA Tubular coded lock and chrome plated bezel & keys EX01, EX02, EX03 and EX04 |
Drawer Liner |
PVC high density foam |
Number of Drawers |
3 |
Sets of Drawer Slides |
4 (Full-extension ball bearing slides with detent features) |
Caster Channel Gauge |
14 |
Series |
RX Professional Series |
Top Panel |
19 gauge |
Bottom Panel |
21 gauge |
Back Panel |
19 gauge |
Side panels |
19 gauge |
Top Reinforce Support |
21 gauge |
Inner Panel |
19 gauge |
Drawer front |
18 gauge |
Drawer back |
21 gauge |
Drawer body |
21 gauge |
Total Capacity |
13.97 cubic feet |
Shelves |
3 |
Drawer Pulls |
high polished AL extrusion |
Drawer Load Rating |
100 lbs per set of slides |
Vertical Side Trim |
One polished Al trims to be installed by using 3M adhesive on outer vertical frame |
Cabinet Handle |
No handle included |
Accessory parts |
Bottom support mounting bracket with 2 sets hardware and 4 pcs of mounting hardware |
Caster Type |
No casters included, but mounting holes are reserved for 6×2 or 5×2 casters |
Drawer Handle |
polished solid Al extrusion parts without quick release feature |
