Finex Air Spray Gravity Feed Side Cup Conventional Gun 0.055 in (1.4 mm) needle/ nozzle size

Finex Air Spray Gravity Feed Side Cup Conventional Gun 0.055 in (1.4 mm) needle/ nozzle size

Regular price
$177.50
Sale price
$177.50
Quantity must be 1 or more

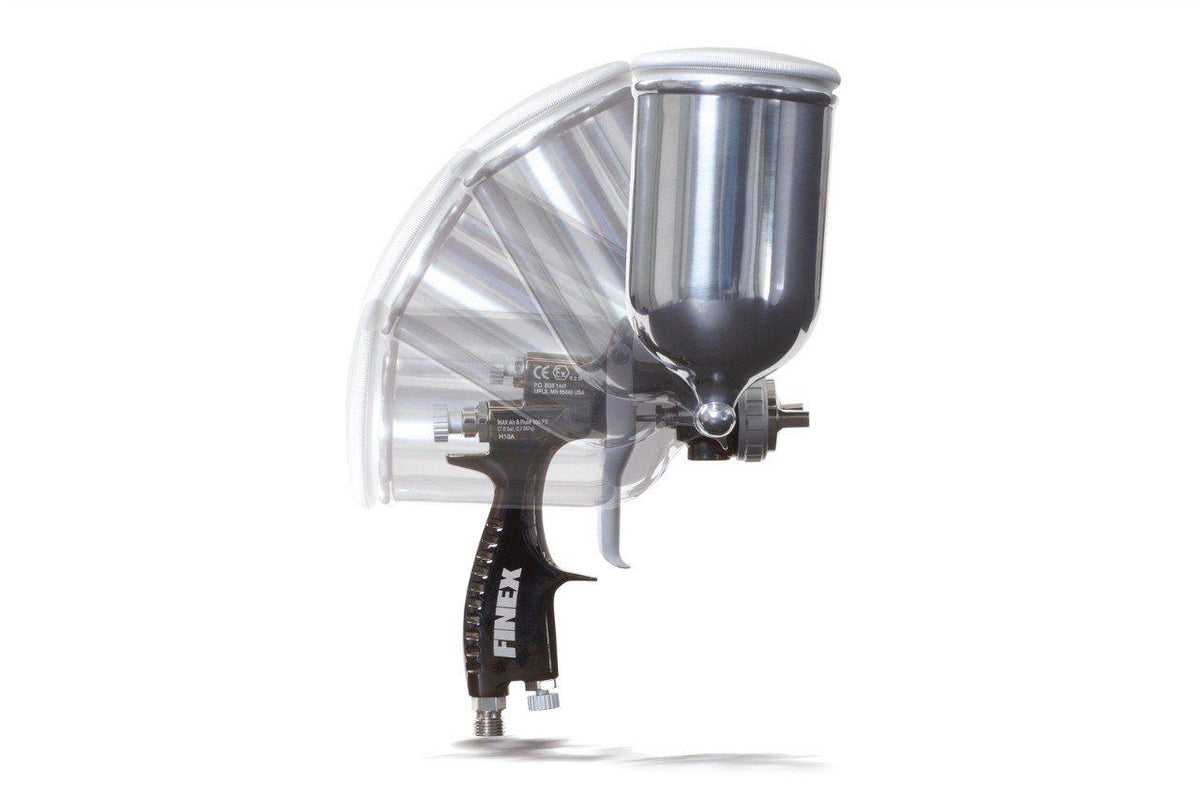

The Finex Side Cup Gun has a cup that swivels – ideal for end users spraying in tight spaces. Available in either HVLP or conventional technologies.

Easily spray small spaces and corners with the Finex gravity feed gun with swivel cup

  • Aluminum cup is included with the gun
  • Cup swivels for spraying in small spaces
  • Light trigger pull for operator comfort
  • Aircaps optimized for high quality spray performance
  • Integrated air inlet adjustment (cheater) valve
Air Inlet Size (in) 1/4
Air Inlet Thread Type NPSM
Applicator Type Manual
Bleed Type Non-Bleeder
Body Material Metal
Compatible Material Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
Feed Type Side-Cup Gravity Feed
Fluid Inlet Size (in) 3/8
Fluid Inlet Thread Type NPSM
Fluid Orifice Size (in) 0.055
Gun Activation Manual
Gun Included 1
Gun Type Conventional Gun
Gun Weight (lb) 1.2
Includes Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup
Maximum Air Inlet Pressure (MPa) 0.7
Maximum Air Inlet Pressure (psi) 100
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Fluid Pressure (MPa) 0.7
Maximum Fluid Pressure (psi) 100
Maximum Fluid Temperature (°F) 109
Model Finex
Product Type Spray Gun
Spray Pattern Flat
Spray Type Air Spray
Technology Type Conventional
Trigger Lock Non-Locking
Trigger Type Two-Finger
Type Spray Gun

;
