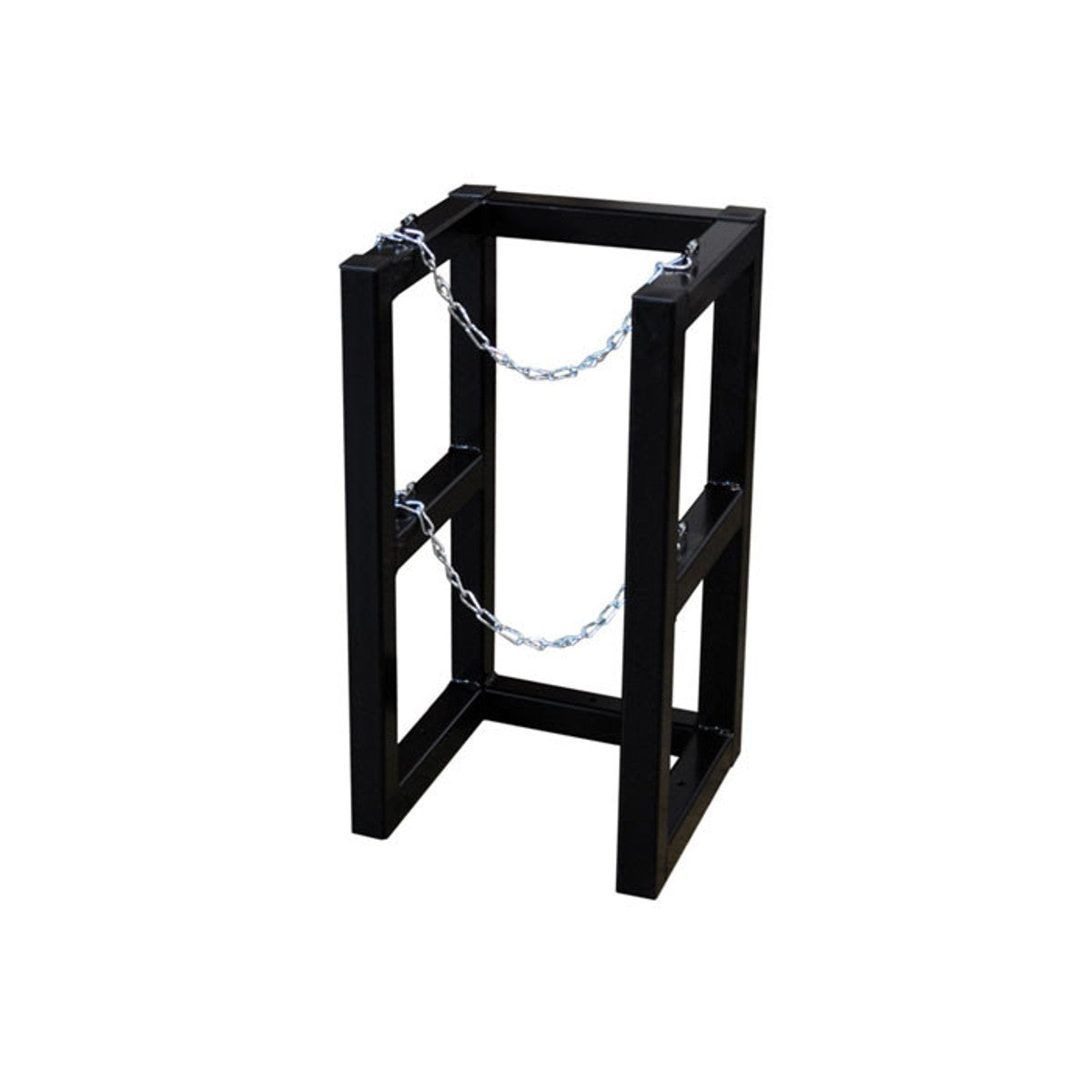

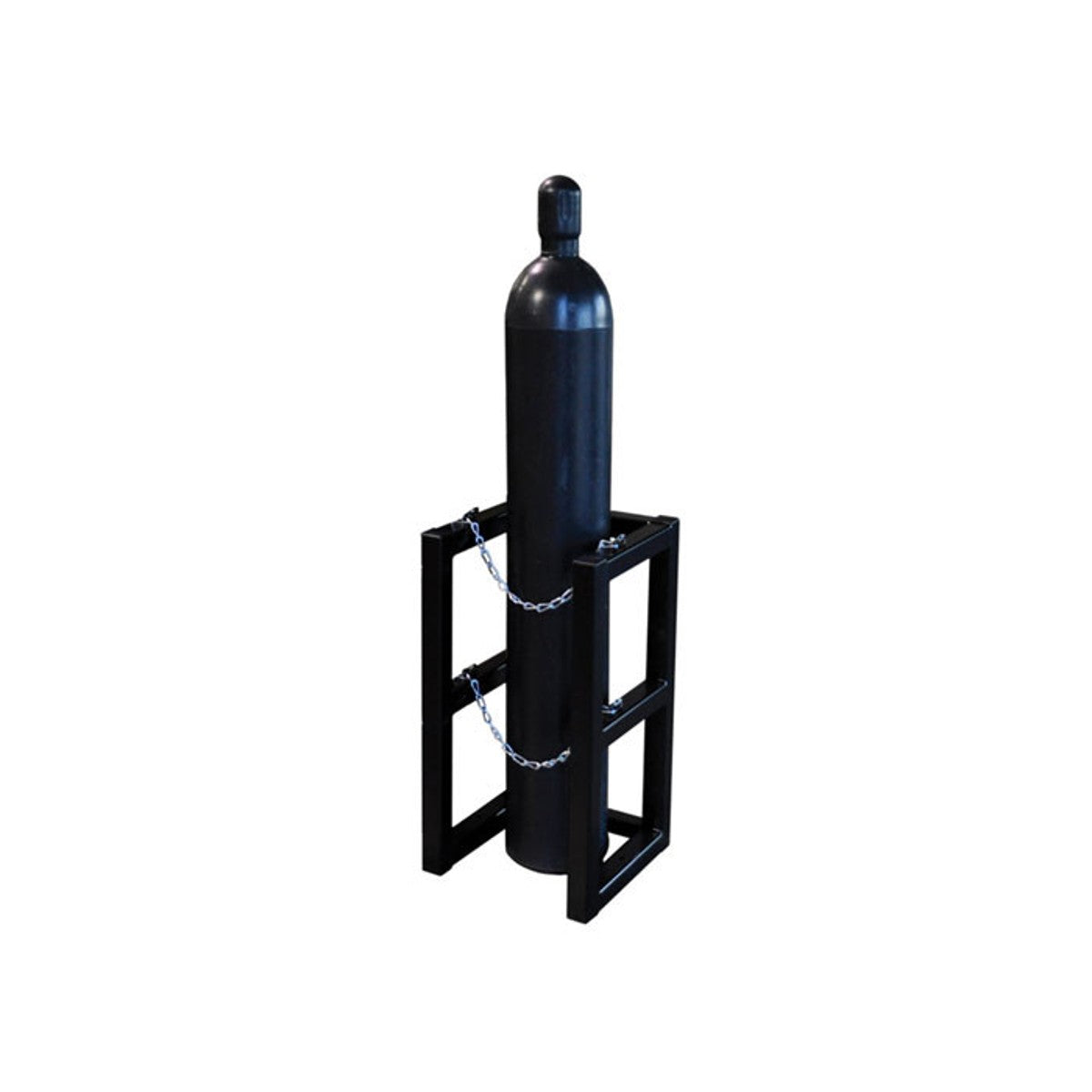

Recommended for indoor or outdoor bulk cylinder storage, barricade racks surround cylinders with 2-in (51-mm) square steel structural tubing, continuously seam welded at all junction points and sealed with exterior grade powder-coat paint for long lasting strength, durability and dependability. Tops ground smooth and capped with high-density polyethylene (HDPE) caps to prevent corrosion and injuries. Features two levels of welded steel chains for each cylinder and clasps to connect the chains to the rack, ensuring a snug fit. Pre-drilled 0.531-in (14-mm) diameter floor mounting holes included on lower tube structure. For seismic installations, add Model 35350 S4-rated anchor bolts (not included).
Helps comply with OSHA, NFP1, NFPA 55, and CGA.
Additional Specs
| Cylinder Capacity: | 1 |
| Minimum Cylinder Diam (in): | 8 |
| Cylinder Capacity with Max Cylinder Dia: | (1) 12 inch |
| Mount Type: | Floor |
| Mount Holes: | 3 |
| Mount Hole Size (inch): | 0.531 |
| Strap Style: | Chain |
| Straps Per Cylinder: | 2 |
| Material Specifications: | Steel |
| Complies with NFPA 1 Fire-Code: | Yes |
| NFPA 55: | Yes |
| OSHA Compliance: | Yes |
| CGA: | Yes |
| High Hazard Seismic Zone: | Yes |
| Net Weight, lbs: | 58 |
| Net Weight, kg: | 26 |
| Net Dimensions (W x D x H): | 16 x 16 x 30 inches |
| : | 406 x 406 x 762 mm |
