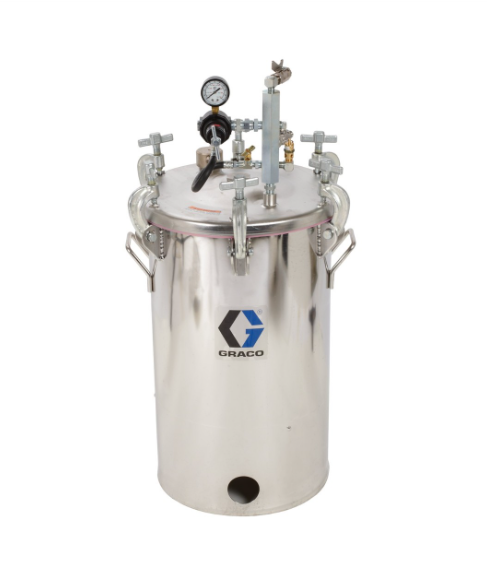

Graco 10 Gallon Low Pressure (HVLP) Pot, Regulated to 15 psi, ASME Rated, 33.9 in (88 cm), 76 lbs (35 kg), SST

Graco 10 Gallon Low Pressure (HVLP) Pot, Regulated to 15 psi, ASME Rated, 33.9 in (88 cm), 76 lbs (35 kg), SST

Regular price
$3,150.00
Sale price
$3,150.00
Quantity must be 1 or more


Designed with electroplated surfaces that prevent debris build-up and keep your operation free of contaminants, Graco pressure pots are precision welded and surfaced.
  • ASME rated to ensure it meets factory standards
  • High quality stainless steel design is compatible with many materials
  • Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

    Technical Specifications

    Inlet Size (in) 1/4
    Inlet Thread Gender Male
    Inlet Thread Type NPT
    Maximum Volume Capacity (gal) 10
    Maximum Working Pressure (MPa) 0.1
    Maximum Working Pressure (psi) 15
    Outlet Size (in) 3/8
    Outlet Thread Gender Male
    Outlet Thread Type NPSM
    Overall Height (in) 33.87
    Overall Width (in) 19
    Type Tank
    Weight (lb) 76
    Wetted Material Stainless Steel, Santoprene, Polyamide, PET


;
