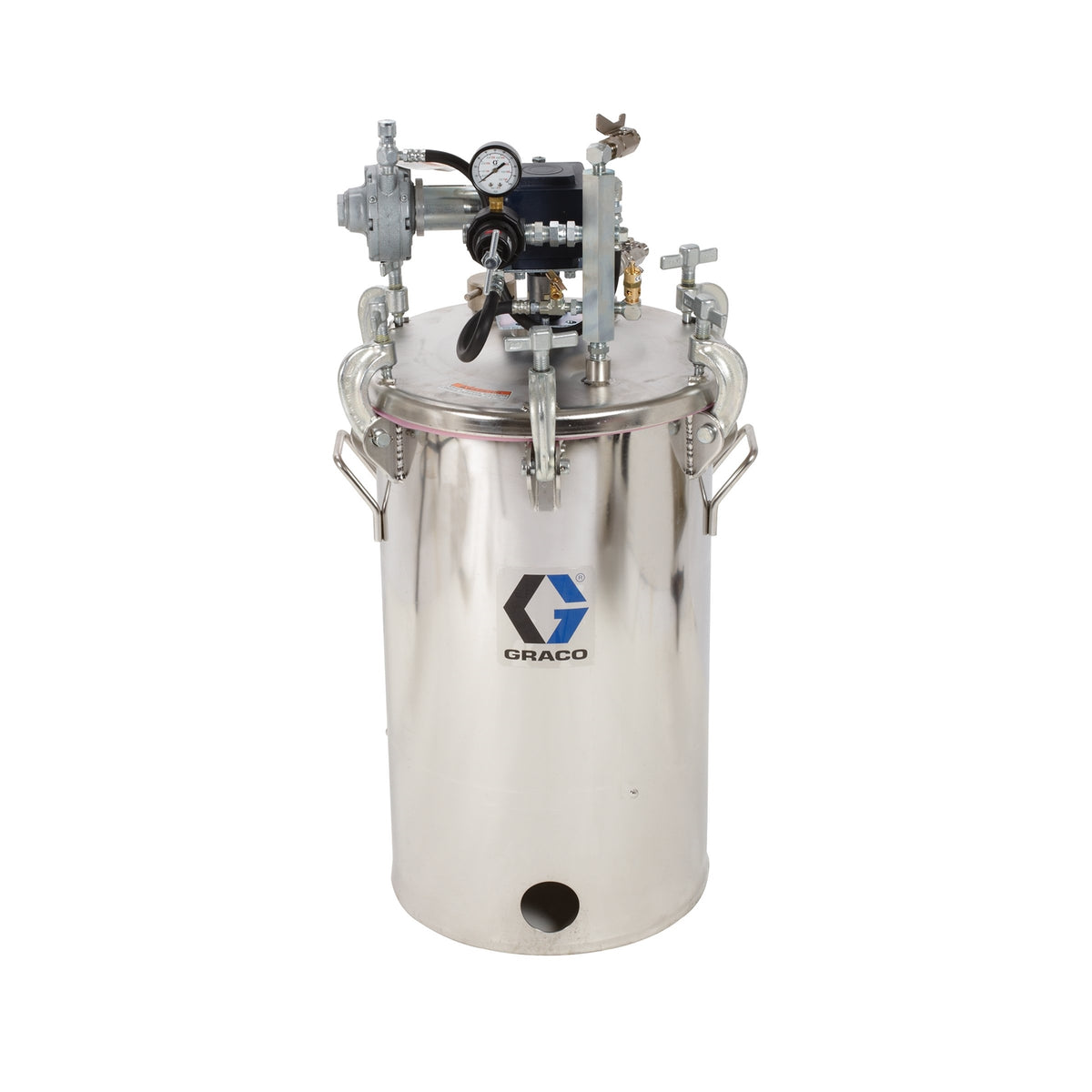

Graco 10 Gallon Low Pressure (HVLP) Pot with Agitator, Regulated to 15 psi, ASME Rated, 33.9 in (88 cm), 85 lbs (39 kg), SST

Graco 10 Gallon Low Pressure (HVLP) Pot with Agitator, Regulated to 15 psi, ASME Rated, 33.9 in (88 cm), 85 lbs (39 kg), SST

Regular price
$5,360.00
Sale price
$5,360.00
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Ships in 2-3 weeks, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

UPC Product: 00633955499140
Family Code: FAMCNV
Unit of Measure: EA
Height: 38.4 IN   |  97.536 CM
Length: 22.8 IN   |  57.912 CM
Width: 22.8 IN   |  57.912 CM
Volume: 11.55 FT3   |  .327 M3
Chargeable Weight: 120.253 LBS  | 54.52 KG

Technical Specifications

Includes Agitator, Agitador, 교반기
Inlet Size (cm) 0.635
Inlet Size (in) 1/4
Inlet Size (mm) 6.35
Inlet Thread Type NPT
Maximum Volume Capacity (gal) 10
Maximum Volume Capacity (L) 38
Maximum Working Pressure (bar) 1
Maximum Working Pressure (kPa) 100
Maximum Working Pressure (psi) 15
Outlet Size (cm) 0.9525
Outlet Size (in) 3/8
Outlet Size (mm) 9.525
Outlet Thread Type NPSM
Overall Height (cm) 86
Overall Height (in) 33.87
Overall Height (mm) 860
Overall Width (cm) 48.3
Overall Width (in) 19
Overall Width (mm) 483
Weight (kg) 44
Weight (lb) 97
Wetted Material Stainless Steel, Santoprene, Polyamide, PET, PTFE, Bronze
Type Tank
Inlet Thread Gender Male
Outlet Thread Gender Male
Maximum Working Pressure (MPa) 0.1
