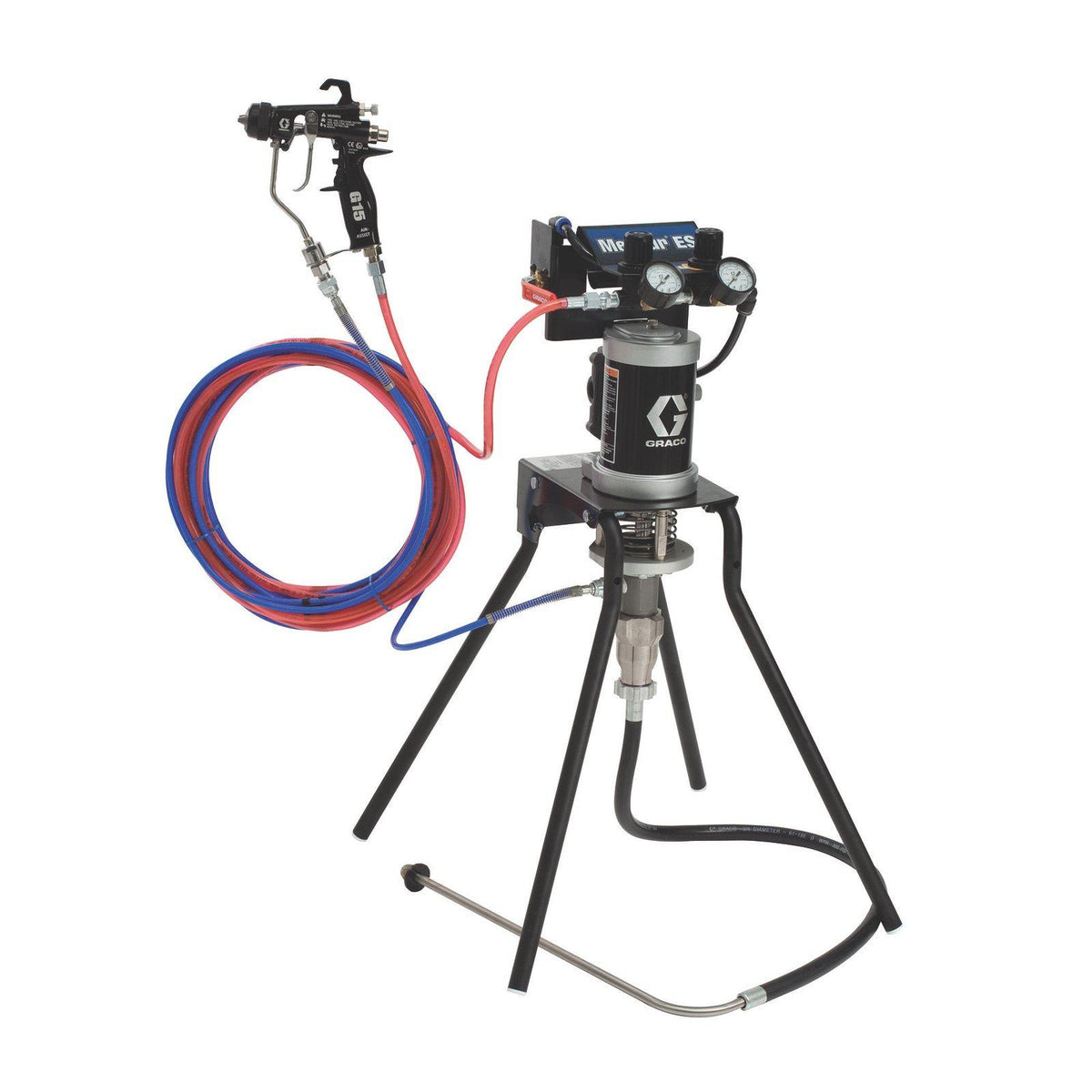

Graco 15:1 Merkur ES Air Assisted Package - 0.4 gpm - Fluid Flow Standard Mount with G15 Gun - Suction Hose - Stainless Steel
Graco 15:1 Merkur ES Air Assisted Package - 0.4 gpm - Fluid Flow Standard Mount with G15 Gun - Suction Hose - Stainless Steel
Graco 15:1 Merkur ES Air Assisted Package - 0.4 gpm - Fluid Flow Standard Mount with G15 Gun - Suction Hose - Stainless Steel

Graco 15:1 Merkur ES Air Assisted Package - 0.4 gpm - Fluid Flow Standard Mount with G15 Gun - Suction Hose - Stainless Steel

Regular price
$2,730.00
Sale price
$2,730.00
Quantity must be 1 or more


Features

The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.

  • Quick flush system requires less than 1 minute to flush
  • 45% less material to fill the system than the leading competitors
  • Delivers a superior, consistent spray finish
  • Low profile spray package makes it easy to transport
  • Easily set and monitor air control, plus an integrated carrying handle for transport
  • Air motor provides consistent finishes with smooth, rapid changeover
  • Suction hose and strainer leaves less material in the supply container
  • Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
 Technical Specification
Convertible Non-Convertible
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Gun Included 1
Gun Model G15
Gun Technology Air-Assisted
Gun Type Air-Assisted
Hose Inlet Diameter (in) 0.125
Includes G15 Gun, Suction Hose, Stand Mount
Maximum Flow Rate (GPM) 0.4
Maximum Hose Length (ft) 25
Maximum Sound Pressure Level (dB(A)) 76.5
Maximum Tip Size (in) 0.019
Maximum Working Pressure (MPa) 10.3
Maximum Working Pressure (psi) 1500
Model Merkur
Motor Type Pneumatic
Mount Type Stand Mount
Number of Guns 1
Power Source Air
Pressure Type High Pressure
Product Type Spray Package
Pump Ratio 15:1
Pump Sleeve Material Stainless Steel
Pump Type Pneumatic Piston Pump
Series ES
Spray Type Air-Assisted
Standards Met ATEX, CE
Type Air-Assisted Airless Sprayer
Weight (lb) 23
Wetted Material Stainless Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene
