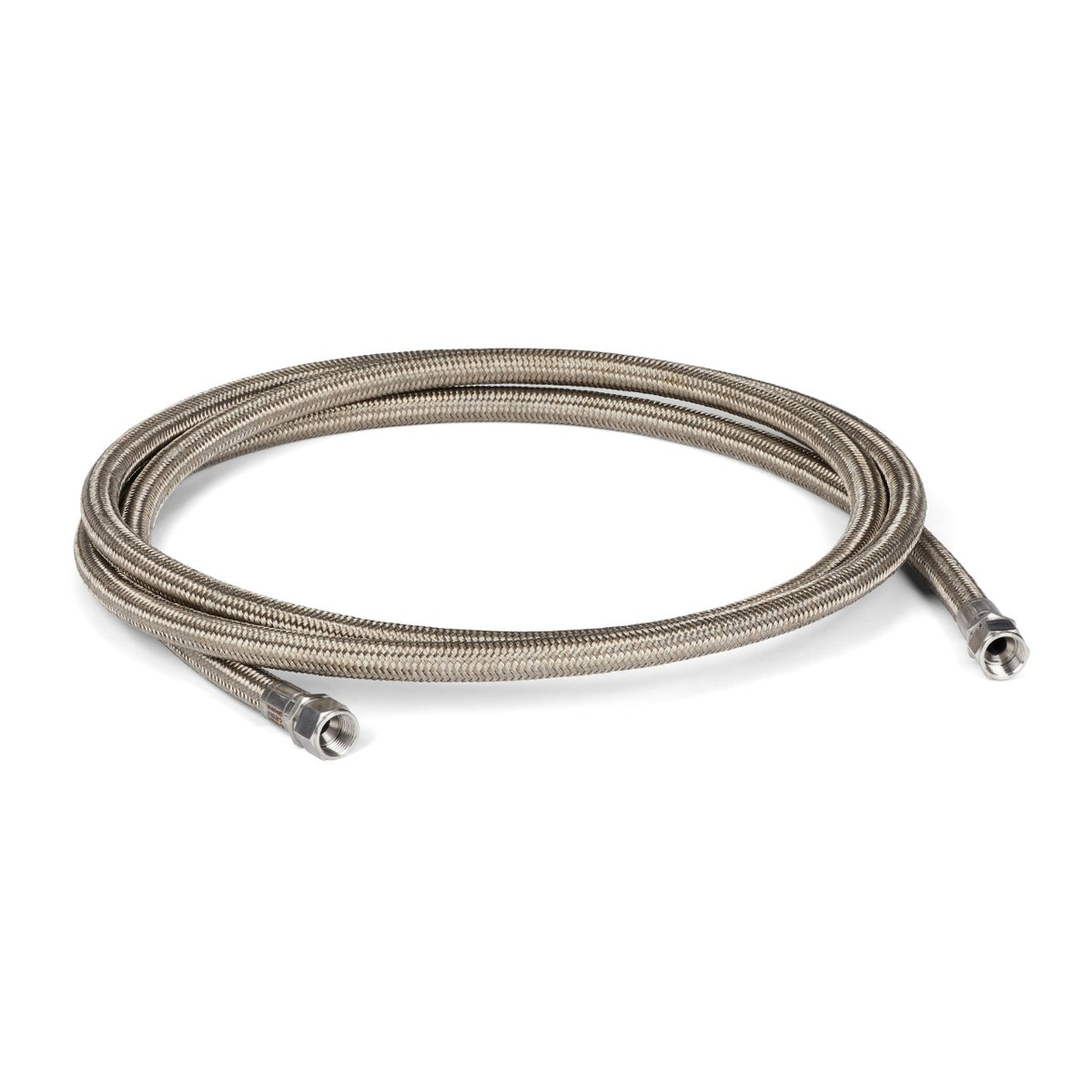

15 ft. (4.6 M) Stainless Steel Braided PTFE Ambient Hose, No. 20 (1.125 in. / 28.6 mm ID)
Specifications
| Hose Diameter (in) | 1.125 |
| Hose Diameter (mm) | 28.6 |
| Hose Heating Type | Ambient |
| Hose Length (ft) | 15 |
| Inside Diameter (in) | 1.125 |
| JIC Size | JIC 20 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 3000 |
| Thread Gender | Female |
| Thread Size | 1- 5/8-12 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Voltage (V) | N/A |
| Hose Length (m) | 4.6 |
| Inside Diameter (mm) | 28.6 |
| Maximum Temperature (°C) | 100 |
| Maximum Working Pressure (bar) | 276 |
