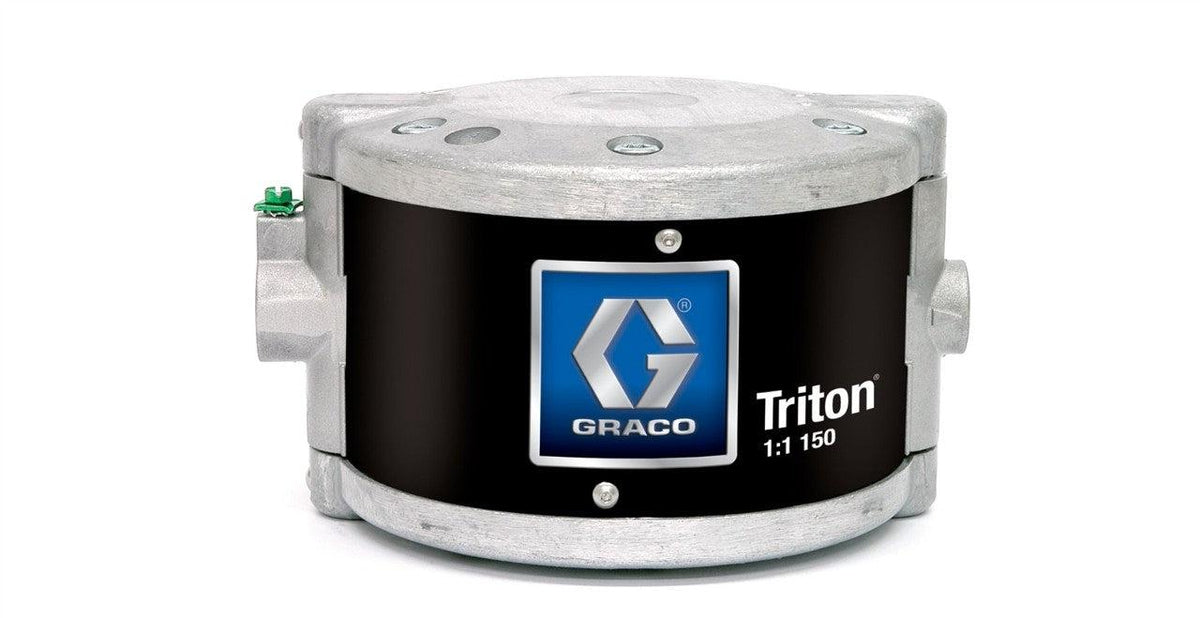

Graco 233501 1:1  NPT SST Bare Triton Air-Operated Diaphragm Pump

Graco 233501 1:1 NPT SST Bare Triton Air-Operated Diaphragm Pump

Regular price
$2,410.00
Sale price
$2,410.00
Quantity must be 1 or more


Effective alternative to traditional pressure pots and standard diaphragm pumps
  • Double diaphragm pump designed specifically for finishing applications
  • Low pulsation output provides smooth pump changeover
  • Low shear design for minimal degradation of shear sensitive materials
  • Rugged aluminum and stainless steel construction handles a wide variety of fluids
Air Inlet Size (in) 1/4
Air Inlet Thread Type NPT
Application Circulation
Connection Type Threaded
Fluid Inlet Size (in) 3/4
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPT
Manifold Configuration Center Port
Material Stainless Steel
Maximum Air Pressure (MPa) 0.8
Maximum Air Pressure (psi) 115
Maximum Flow Rate (GPM) 8.5
Maximum Fluid Pressure (MPa) 0.8
Maximum Fluid Pressure (psi) 115
Maximum Operating Temperature (°F) 176
Minimum Operating Temperature (°F) 50
Model Triton
Power Source Air
Pump Ratio 1:1
Series 308
Type Pneumatic Diaphragm Pump
Weight (lb) 14
Wetted Material Aluminum, Stainless Steel

;
