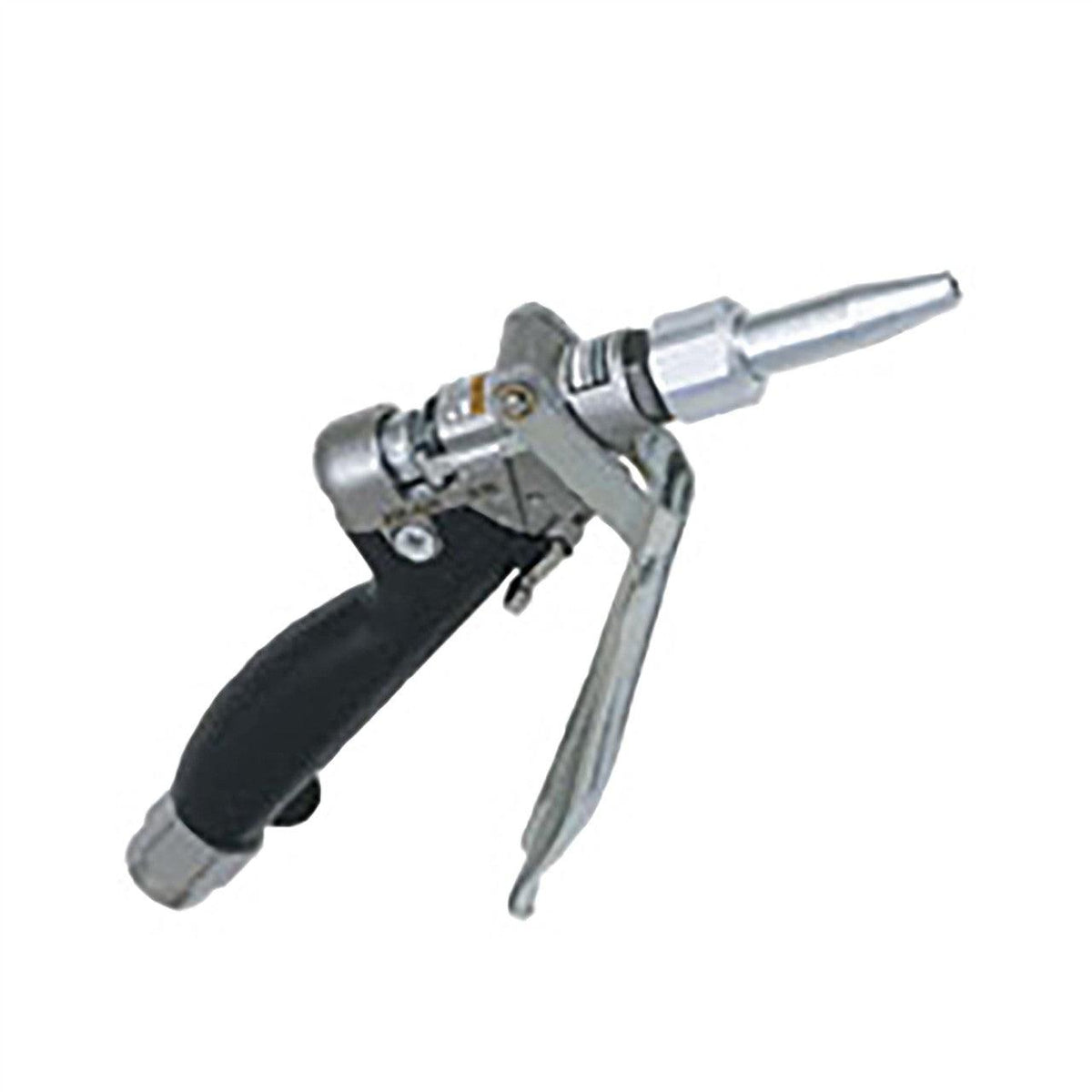

Graco 235628 Ultra-Lite 6000 Flow Gun w/ Ball End Valve Needle

Graco 235628 Ultra-Lite 6000 Flow Gun w/ Ball End Valve Needle

Regular price
$1,325.00
Sale price
$1,325.00
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Ships in 6-10 days, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

The operator-friendly Ultra-Lite 6000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.

For precise control of low-to-medium viscosity materials

  • Operating pressures to 6000 psi (414 bar; 41.4 MPa).
  • 150° head/handle angle is more comfortable for operator
  • Changeable tips for a variety of dispensing needs
  • Lightweight with convenient trigger pull
  • Compatible with a variety of nozzles (1/4 in NPT (F) with nut for metal flanged nozzle). Order nozzle separately.
Application Bonding, Sealing, Gasketing, Potting, Encapsulation
Connection Type Threaded, Flange
Gun Activation Manual
Inlet Size (in) 1/2
Inlet Thread Gender Female
Inlet Thread Type NPT
Maximum Working Pressure (MPa) 41.5
Maximum Working Pressure (psi) 6000
Model Ultra-Lite
Nozzle Size (in) 0.19
Number of Outputs 1
Series 6000
Type Dispense Gun
Weight (lb) 1.375
