Graco 24A783 Tungsten Carbide Seat Repair Kit for Merkur LW075A

Graco 24A783 Tungsten Carbide Seat Repair Kit for Merkur LW075A

$161.50
$161.50
Quantity must be 1 or more

Related Manuals:

  • 406784A, 24A783 Merkur Carbide Seat Kit, for Merkur LW075A Displacement Pumps, English — View PDF
  • 3A2313E - U-Cup Displacement Pump, Repair - Parts, English — View PDF
  • 332246H, Manual, Merkur High Pressure Displacement Pump, Repair-Parts, English — View PDF
  • 312792EN-L, Manual, Merkur Displacement Pump, Repair/Parts, English — View PDF

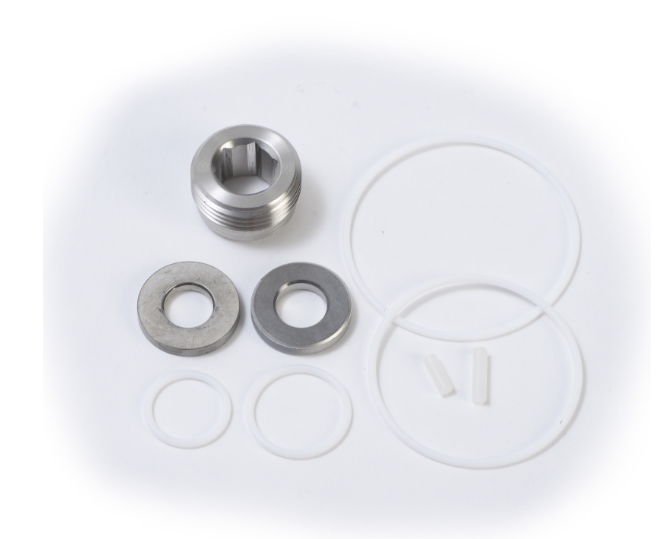

The 24A783 kit includes: SEAT, carbide, intake valve (Ref 1), O-RING, PTFE, 0.8 in. (20 mm) (Ref 2), THREAD LOCKER, nylon (Ref 3*), O-RING, PTFE, 1.9 in. (48 mm) (Ref 4), SEAT, carbide, piston valve (Ref 5), O-RING, 0.9 in. (23 mm) (Ref 6), NUT, flow-through (Ref 7), THREAD LOCKER, nylon (Ref 8*), and O-RING, PTFE, 2.0 in. (51 mm) (Ref 9).

Sign-up to get 5% off your first order
Click for recommended parts and accessories


Feel free to call or chat with us for recommendations.

📦 Ships in 6-10 days, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

Restore your Graco Merkur LW075A with the 24A783 Tungsten Carbide Seat Repair Kit, a complete set of replacement components for the intake and piston valve assemblies. The kit includes carbide intake and piston valve seats, PTFE O-rings in 20 mm, 23 mm, 48 mm, and 51 mm sizes, a flow-through nut, and nylon thread locker, corresponding to Ref. 1 through 9 in the parts diagram. Everything needed to rebuild both valve seats is included in this single kit.
