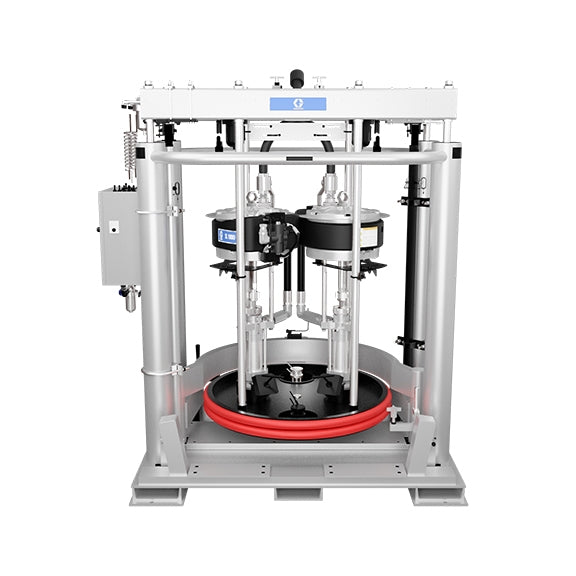

Pneumatic bulk unloader efficiently evacuates 300 gallon (1200 liter) magna drums or tote drums, supplying one-component, medium to high viscosity adhesive and sealant to industrial and automotive applications.
Features
- XL 10000™ air motor has a modular design for easy maintenance
- XL motor air valves help eliminate ice-induced stalling
- Right handed pneumatic control minimizes changeover time in a tandem setup. As the drum on one side is being filled, the drum on the other side supplies the material.
Specifications
| UPC Product | 633955566309 |
| Country of Origin | US |
| Height | 99 IN | 251.460 CM |
| Length | 65 IN | 165.100 CM |
| Width | 84 IN | 213.360 CM |
| Shipping Weight | 4098 LBS | 1858.822 KG |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Container Type | Magna Drum |
| Control Options | Elec/Pneumatic |
| Material Container Volume (gal) | 300 |
| Maximum Air Inlet Pressure (psi) | 95 |
| Ram Material | Carbon Steel |
| Maximum Flow Rate (L/min) | 26.1 |
| Maximum Fluid Pressure (psi) | 4700 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (psi) | 4500 |
| Model | UniDrum |
| Number of Wipers | 2 |
| Overall Depth (in) | 51 |
| Overall Width (in) | 69 |
