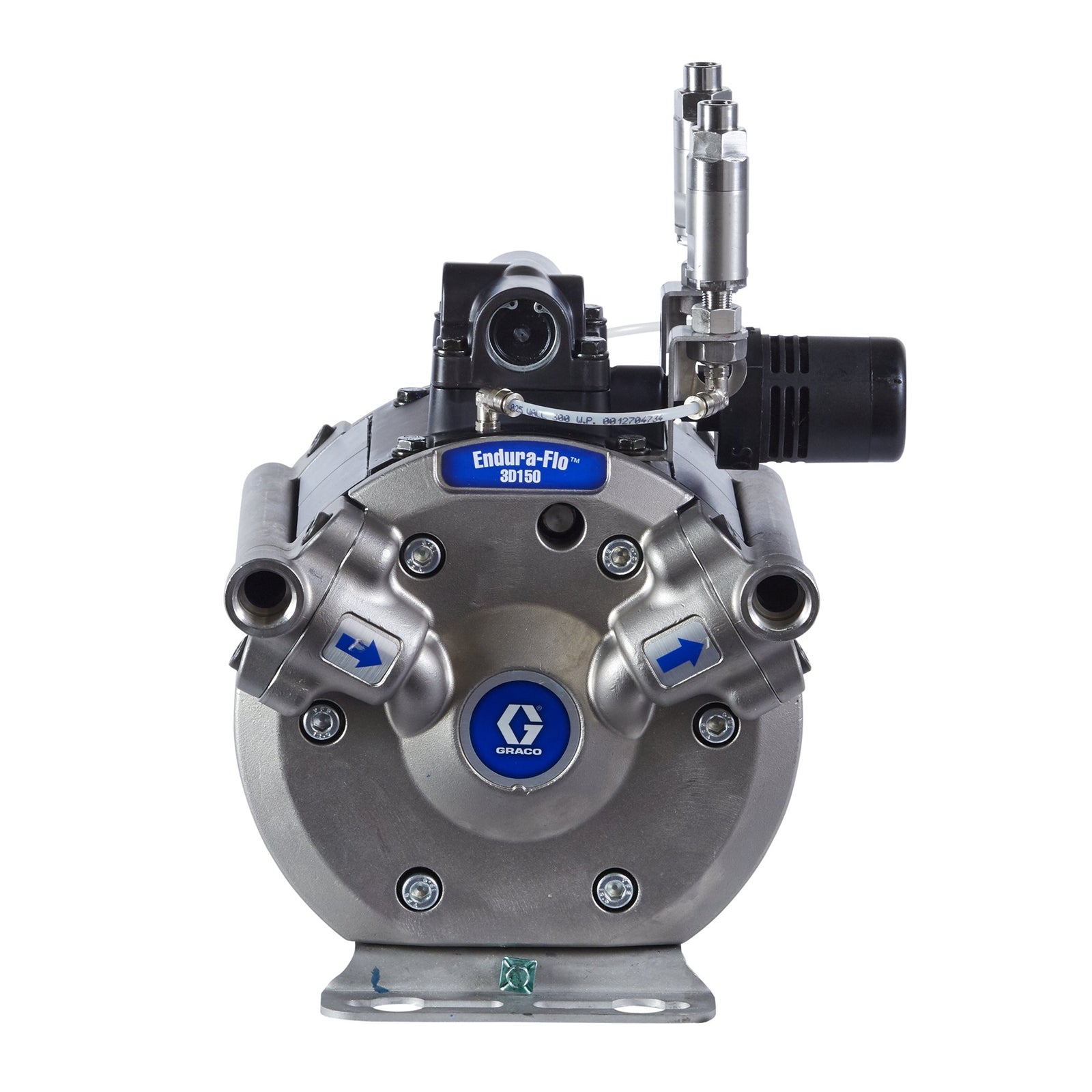

Endura-Flo 3D150, 3:1 Air Operated Diaphragm Pump, 150cc, NPT, DataTrak
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Circulation |
| Fluid Inlet Size (in) | 1/2 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | NPT |
| Includes | NPT Fittings, DataTrak |
| Material | Stainless Steel |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 20 |
| Maximum Flow Rate (GPM) | 2.4 |
| Maximum Fluid Pressure (psi) | 300 |
| Maximum Operating Temperature (°F) | 122 |
| Model | Endura-Flo |
| Power Source | Air |
| Pump Ratio | 3:1 |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 31 |
| Fluid Inlet Size (mm) | 12.7 |
| Fluid Outlet Size (mm) | 12.7 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Flow Rate (L/min) | 9.1 |
| Maximum Fluid Pressure (bar) | 21 |
| Maximum Operating Temperature (°C) | 50 |
