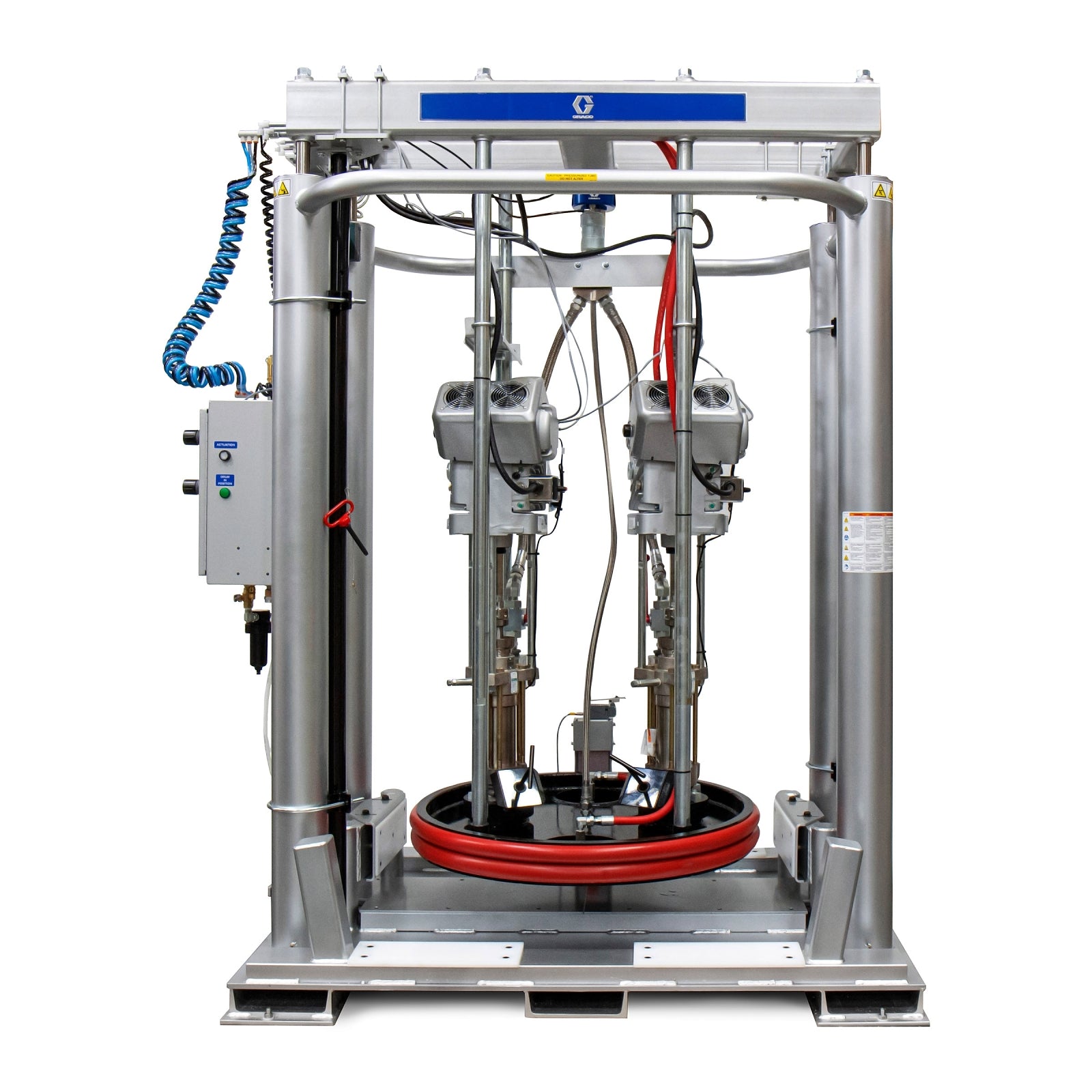

Electric-powered bulk supply reliably delivers one-component sealants, adhesives and other medium to high viscosity materials from 1000 liter (264 gallon) drums to factory metering and dispensing systems. Manufacturers who purchase this particular system provide their own 24 volt direct current (DC) power.
Features
- E-Flo SP electric supply pump is powered by an electric driver that provides real-time, integrated, closed-loop flow control.
- Since the electric motor operates much more quietly than pneumatic or air-operated motors, the supply can be placed closer to the point of application. This requires less pressure for accurate and consistent meter and dispense.
- Severe Duty construction protects equipment from harsh materials.
- The electric bulk drum unloader can be set up to automatically alternate between left handed and right handed supply units. The dual supply (controlled by factory PLC) virtually eliminates downtime to refill material.
Specifications
| UPC Product | 769946269109 |
| Country of Origin | US |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Container Type | Magna Drum |
| Material Container Volume (gal) | 264 |
| Maximum Air Inlet Pressure (psi) | 95 |
| Maximum Flow Rate (L/min) | 10.8 |
| Maximum Fluid Pressure (psi) | 1900 |
| Maximum Height (ft) | 11.75 |
| Maximum Height (in) | 141 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (psi) | 1900 |
| Minimum Height (ft) | 7.1 |
| Minimum Height (in) | 85.2 |
| Model | UniDrum |
| Overall Depth (in) | 51 |
| Overall Width (in) | 69 |
| Control Options | Elec/Pneumatic |
| Number of Wipers | 2 |
