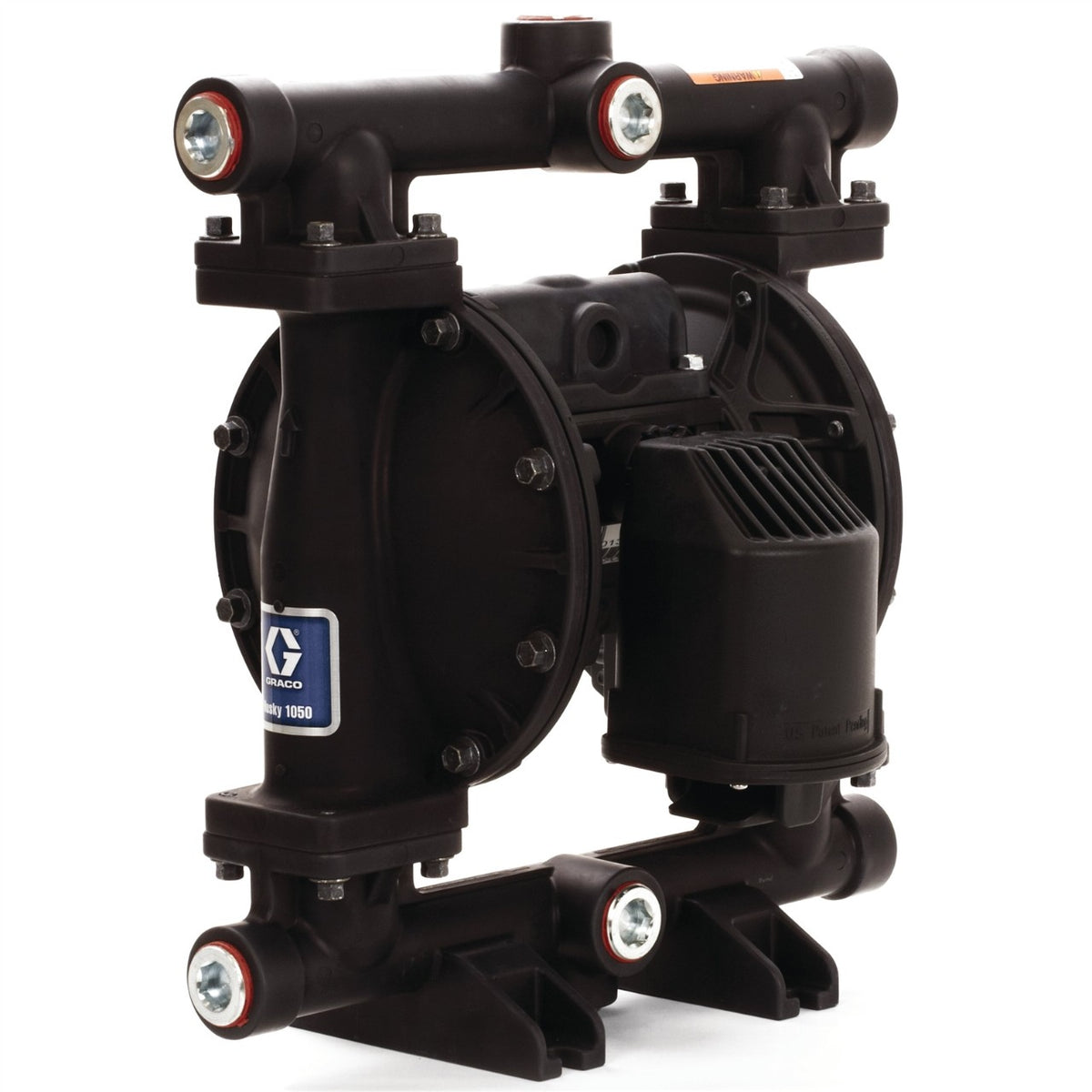

Husky 1050 AL 1 in. (25.4 mm) BSPT Pump, Standard AL Center Section, AC Seats, AC Balls & PTFE Diaphragm
Specifications
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | Acetal |
| Center Section Material | Aluminum |
| Diaphragm Compatible Material | PTFE |
| Diaphragm Material | PTFE/EPDM 2-Piece |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | Center Port, End Port |
| Manifold O-Ring Material | PTFE |
| Material | Aluminum |
| Maximum Air Consumption (SCFM) | 67 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (GPM) | 50 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Solid Size (in) | 0.125 |
| Model | Husky |
| Power Source | Air |
| Seat Material | Acetal |
| Standards Met | ATEX, CE |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 23 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (mm) | 25.4 |
| Maximum Air Pressure (bar) | 8.6 |
| Maximum Flow Rate (L/min) | 189 |
| Maximum Fluid Pressure (bar) | 8.6 |
| Maximum Solid Size (cm) | 0.3175 |
| Maximum Solid Size (mm) | 3.175 |
