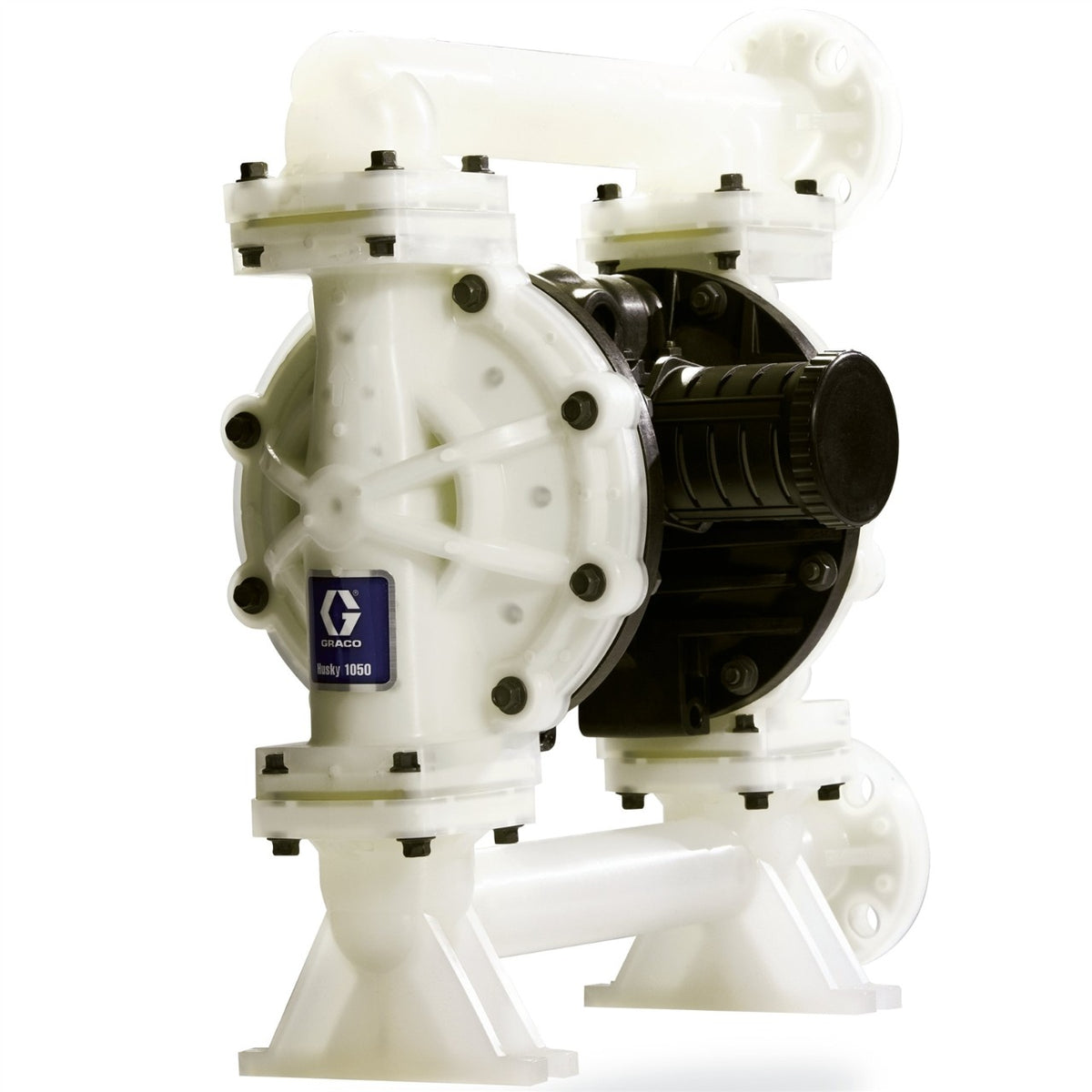

Husky 1050 PP (NPT) Pump, End Flange, PP Center Section, SS Seats, SS Balls & PO Diaphragm
Specifications
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | 316 Stainless Steel |
| Center Section Material | Polypropylene |
| Diaphragm Compatible Material | PTFE |
| Diaphragm Material | PTFE Overmold |
| Fluid Inlet Size (in) | 1 |
| Fluid Outlet Size (in) | 1 |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Polypropylene |
| Maximum Air Consumption (SCFM) | 67 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (GPM) | 50 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (in) | 0.125 |
| Model | Husky |
| Power Source | Air |
| Seat Material | Stainless Steel |
| Standards Met | CE |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 18 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (mm) | 25.4 |
| Maximum Air Pressure (bar) | 8.6 |
| Maximum Flow Rate (L/min) | 189 |
| Maximum Fluid Pressure (bar) | 8.6 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Solid Size (cm) | 0.3175 |
| Maximum Solid Size (mm) | 3.175 |
