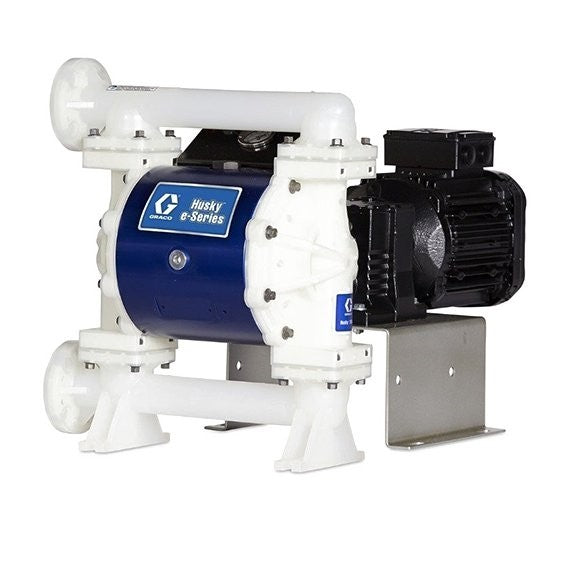

Husky 1050 PP Pump, NEMA 56C Gearbox, Center Flange, AL Center Section, SP Seats, SP Balls & SP Diaphragm
Specifications
| Air Inlet Size (in) | 3/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | Santoprene |
| Center Section Material | Aluminum |
| Diaphragm Compatible Material | Santoprene |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (in) | 1 |
| Fluid Outlet Size (in) | 1 |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Polypropylene |
| Maximum Air Pressure (psi) | 80 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (GPM) | 42 |
| Maximum Fluid Pressure (psi) | 70 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Solid Size (in) | 0.125 |
| Minimum Operating Temperature (°F) | 32 |
| Model | Husky |
| Motor Type | None |
| Power Source | Electric |
| Seat Material | Santoprene |
| Type | Electric Diaphragm Pump |
| Weight (lb) | 67 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (mm) | 25.4 |
| Maximum Air Pressure (bar) | 5.5 |
| Maximum Flow Rate (L/min) | 159 |
| Maximum Fluid Pressure (bar) | 4.8 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Solid Size (cm) | 0.3175 |
| Maximum Solid Size (mm) | 3.175 |
| Minimum Operating Temperature (°C) | 0 |
