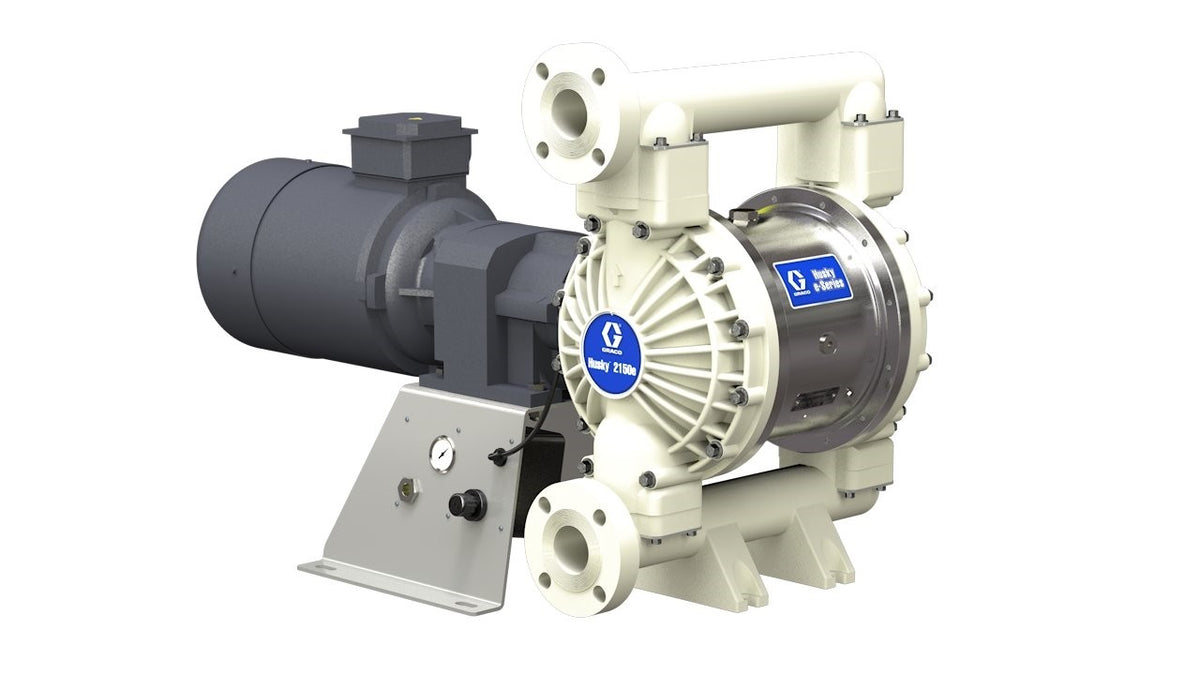

Husky 2150e 2 in. (51 mm) PP Electric Diaphragm Pump; 7.5 Hp AC Motor, 240V CMPSR, End Port Flange, SS Center, PP Seat, PT Ball, PT Diaphragm
Specifications
| Air Exhaust Port Size (in) | 0.375 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 0.375 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Center Section Material | Stainless Steel |
| Diaphragm Compatible Material | PTFE |
| Diaphragm Material | PTFE/Polychl 2-Piece |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Polypropylene |
| Maximum Air Pressure (psi) | 100 |
| Maximum Amperage (A) | 19.5/9.75A |
| Maximum Cycle Rate (CPM) | 160 |
| Maximum Flow Rate (GPM) | 100 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 220 |
| Maximum Solid Size (in) | 0.25 |
| Maximum Working Pressure (psi) | 100 |
| Minimum Operating Temperature (°F) | 40 |
| Model | Husky |
| Motor Type | AC |
| Power Rating (HP) | 7.5 |
| Power Source | Electric |
| Pump Ratio | 1:1 |
| Seat Material | Polypropylene |
| Standards Met | CE |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 230/460V |
| Weight (lb) | 381 |
| Wetted Material | Polypropylene, PTFE |
| Fluid Inlet Size (mm) | 50 |
| Fluid Outlet Size (mm) | 50 |
| Maximum Air Pressure (bar) | 6.9 |
| Maximum Flow Rate (L/min) | 378.5 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Operating Temperature (°C) | 104.44 |
| Maximum Solid Size (cm) | 0.64 |
| Maximum Solid Size (mm) | 6.35 |
| Minimum Operating Temperature (°C) | 4.44 |
