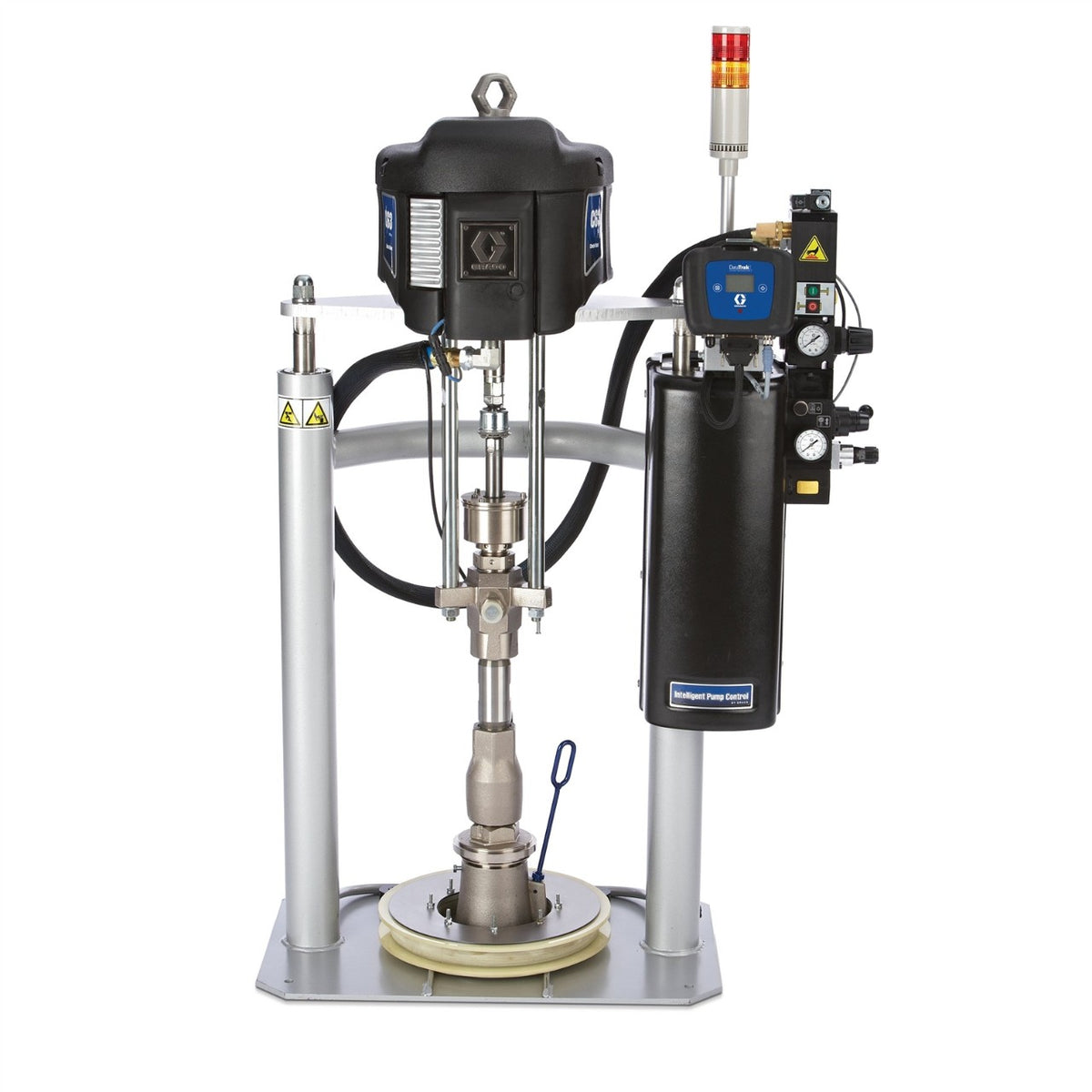

Supply Unit, Check-Mate, 63:1, S/S, Severe Duty, 3 in. D60 Ram, Integrated Air Controls, 20L S/S Flat Platen, Single PTFE Wiper
Specifications
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Container Type | Pail |
| Control Panel Material | N/A |
| Material Container Volume (gal) | 5.3 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Flow Rate (GPM) | 1.6 |
| Maximum Fluid Pressure (psi) | 6300 |
| Maximum Height (ft) | 7.42 |
| Maximum Height (in) | 89 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 44.1 |
| Maximum Working Pressure (psi) | 6300 |
| Minimum Height (ft) | 4.92 |
| Minimum Height (in) | 59 |
| Model | Check-Mate |
| Overall Depth (in) | 18 |
| Overall Width (in) | 28 |
| Power Type | Pneumatic |
| Pump Ratio | 63:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Series | D60 |
| Type | Supply Unit |
| Wetted Material | Stainless Steel, Acetal, Chrome Plating, Electroless Nickel Plating, UHMWPE, Carbon-Filled PTFE, PTFE, Carbon Steel, Electroless Nickel Plating, Polyurethane, PTFE Coated Nitrile, Polyethylene, Nitrile |
| Material Container Volume (l) | 20 |
| Maximum Air Inlet Pressure (bar) | 10.34 |
| Maximum Air Inlet Pressure (kPa) | 1034 |
| Maximum Air Inlet Pressure (kg/cm²) | 10.55 |
| Maximum Flow Rate (L/min) | 6.1 |
| Maximum Fluid Pressure (bar) | 434.4 |
| Maximum Fluid Pressure (kPa) | 43440 |
| Maximum Height (cm) | 226.06 |
| Maximum Height (m) | 2.26 |
| Maximum Height (mm) | 2260.6 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Working Pressure (bar) | 441 |
| Maximum Working Pressure (kPa) | 44100 |
| Minimum Height (cm) | 149.86 |
| Minimum Height (m) | 1.5 |
| Minimum Height (mm) | 1498.6 |
| Overall Depth (cm) | 45.72 |
| Overall Depth (mm) | 457.2 |
| Overall Width (cm) | 71.12 |
| Overall Width (mm) | 711.2 |
