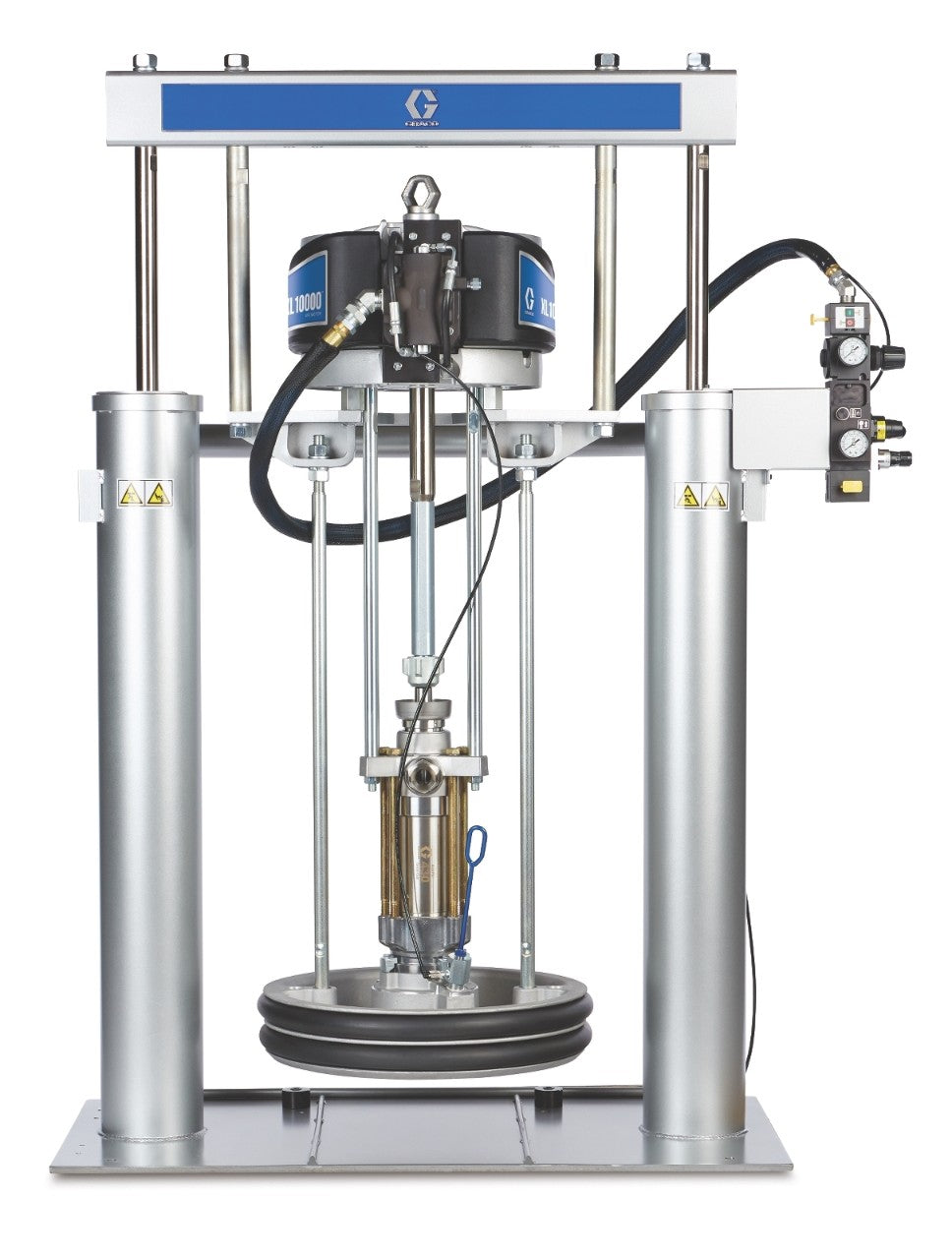

42:1 Ratio 200 L 6.5 RAM Supply Unit with EPDM Wiper Plate
Specifications
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Container Type | Drum |
| Material Container Volume (gal) | 52.8 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Flow Rate (GPM) | 7.8 |
| Maximum Fluid Pressure (psi) | 4200 |
| Maximum Height (ft) | 8.74 |
| Maximum Height (in) | 104.9 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 18.2 |
| Maximum Working Pressure (psi) | 2600 |
| Minimum Height (ft) | 5.86 |
| Minimum Height (in) | 70.3 |
| Model | Check-Mate |
| Overall Depth (in) | 25 |
| Overall Width (in) | 48 |
| Power Type | Pneumatic |
| Pump Ratio | 42:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Series | D200s |
| Type | Supply Unit |
| Wetted Material | Stainless Steel, Ductile Iron, Carbon Steel, Electroless Nickel Plating, Carbon Steel, Zinc Plating, Electroless Nickel Plating, Alloy Steel, PTFE, UHMWPE, Carbon-Filled PTFE, Acetal, Neoprene, Aluminum, Zinc-Plated Carbon Steel |
| Material Container Volume (l) | 200 |
| Maximum Air Inlet Pressure (bar) | 8.62 |
| Maximum Air Inlet Pressure (kPa) | 862 |
| Maximum Air Inlet Pressure (kg/cm²) | 8.79 |
| Maximum Flow Rate (L/min) | 29.5 |
| Maximum Fluid Pressure (bar) | 289.6 |
| Maximum Fluid Pressure (kPa) | 28960 |
| Maximum Height (cm) | 266.5 |
| Maximum Height (m) | 2.66 |
| Maximum Height (mm) | 2665 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Working Pressure (bar) | 182 |
| Maximum Working Pressure (kPa) | 18200 |
| Minimum Height (cm) | 178.5 |
| Minimum Height (m) | 1.79 |
| Minimum Height (mm) | 1785 |
| Overall Depth (cm) | 63.5 |
| Overall Depth (mm) | 635 |
| Overall Width (cm) | 121.9 |
| Overall Width (mm) | 1219 |
