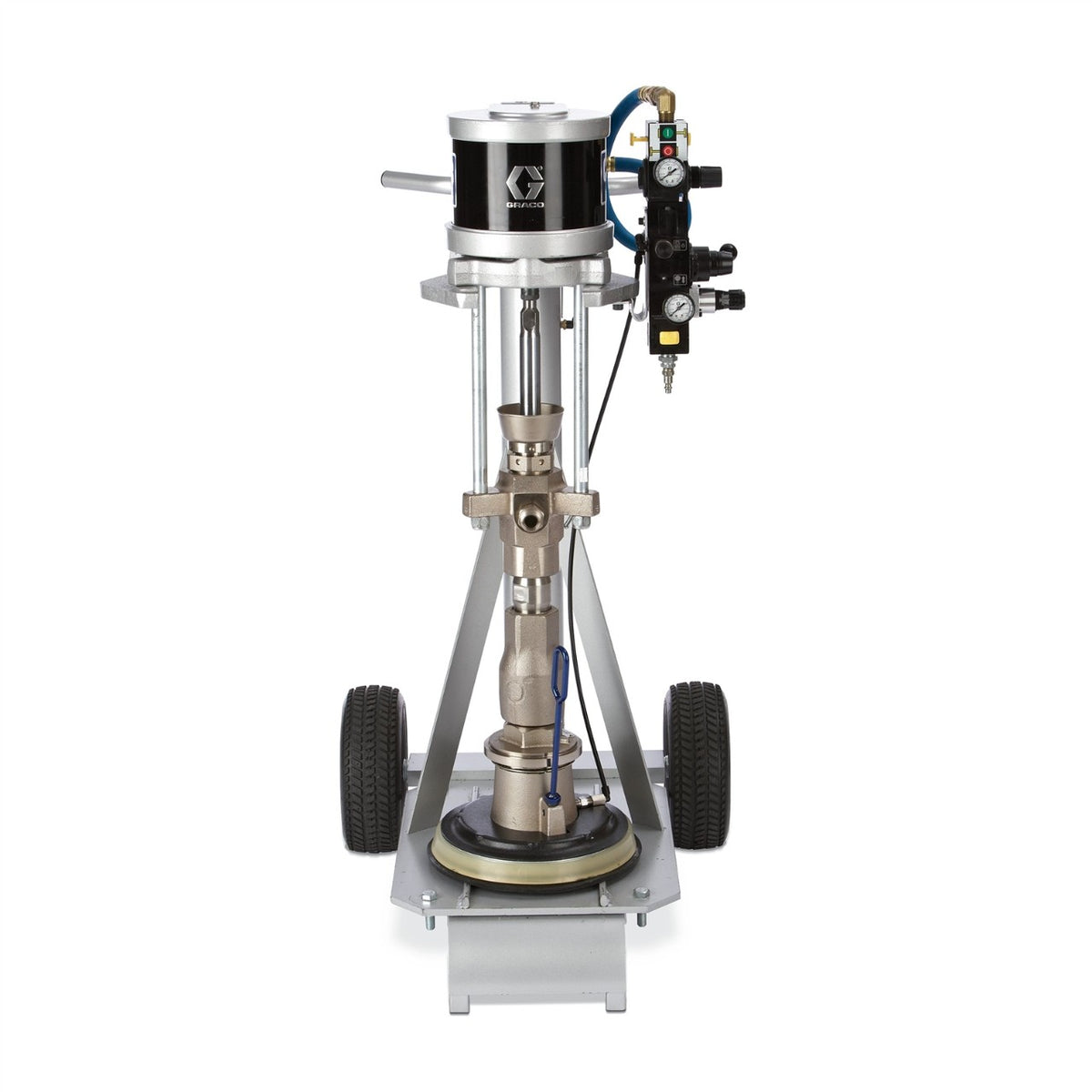

Supply Unit, Check-Mate, 11:1, C/S, Severe Duty, 3 in. S20 Ram, Integrated Air Controls, 20L C/S Flat Platen, Single PU Wiper
Specifications
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Container Type | Pail |
| Control Panel Material | N/A |
| Material Container Volume (gal) | 5.3 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Flow Rate (GPM) | 0.9 |
| Maximum Fluid Pressure (psi) | 1100 |
| Maximum Height (ft) | 4.94 |
| Maximum Height (in) | 59.3 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 7.6 |
| Maximum Working Pressure (psi) | 1100 |
| Minimum Height (ft) | 2.98 |
| Minimum Height (in) | 35.8 |
| Model | Check-Mate |
| Overall Depth (in) | 19 |
| Overall Width (in) | 17 |
| Power Type | Pneumatic |
| Pump Ratio | 11:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Series | S20 |
| Type | Supply Unit |
| Wetted Material | Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Carbon Steel, Ductile Iron, Electroless Nickel Plating, Zinc Plating, Chrome Plating, High Molecular Weight Polyethylene, Aramind Reinforced Elastomer, Rubber-Based PSA, Nitrile Rubber, Polyethylene, Zinc-Plated Carbon Steel, Buna-N |
| Material Container Volume (l) | 20 |
| Maximum Air Inlet Pressure (bar) | 8.62 |
| Maximum Air Inlet Pressure (kPa) | 862 |
| Maximum Air Inlet Pressure (kg/cm²) | 8.79 |
| Maximum Flow Rate (L/min) | 3.4 |
| Maximum Fluid Pressure (bar) | 75.8 |
| Maximum Fluid Pressure (kPa) | 7580 |
| Maximum Height (cm) | 150.6 |
| Maximum Height (m) | 1.51 |
| Maximum Height (mm) | 1506 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Working Pressure (bar) | 76 |
| Maximum Working Pressure (kPa) | 7600 |
| Minimum Height (cm) | 90.9 |
| Minimum Height (m) | 0.91 |
| Minimum Height (mm) | 909 |
| Overall Depth (cm) | 48.26 |
| Overall Depth (mm) | 482.6 |
| Overall Width (cm) | 43.18 |
| Overall Width (mm) | 431.8 |
