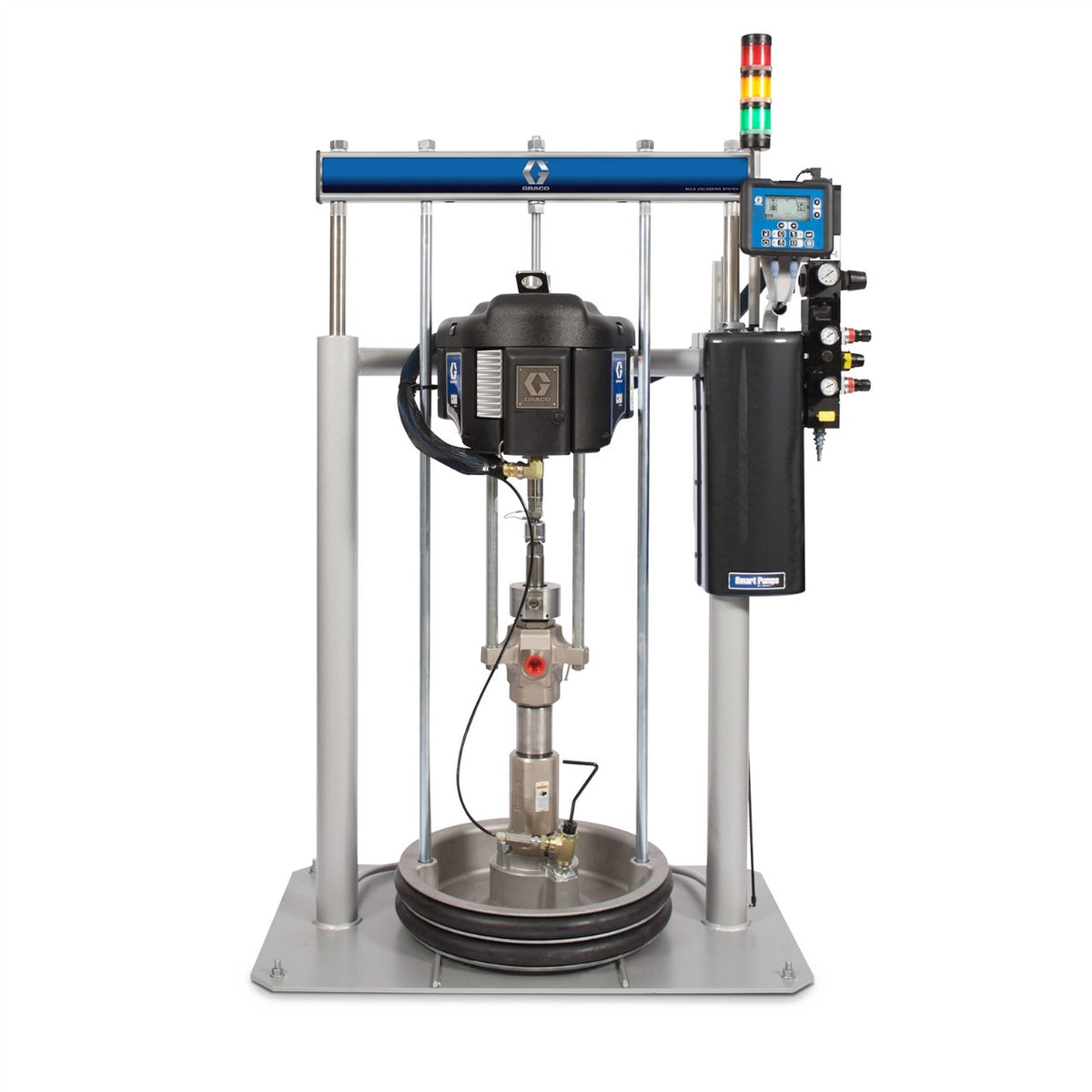

Supply Unit, Check-Mate, 20:1, S/S, Severe Duty, 3 in. D200 Ram, Integrated Air Controls, 200L Al Platen, Double O-Ring Neoprene Wiper
Specifications
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Container Type | Drum |
| Control Panel Material | N/A |
| Material Container Volume (gal) | 5.3 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Flow Rate (GPM) | 0.9 |
| Maximum Fluid Pressure (psi) | 2000 |
| Maximum Height (ft) | 8.53 |
| Maximum Height (in) | 102.3 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 13.8 |
| Maximum Working Pressure (psi) | 2000 |
| Minimum Height (ft) | 5.4 |
| Minimum Height (in) | 64.8 |
| Model | Check-Mate |
| Overall Depth (in) | 25 |
| Overall Width (in) | 42 |
| Power Type | Pneumatic |
| Pump Ratio | 20:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Series | D200 |
| Type | Supply Unit |
| Wetted Material | Stainless Steel, Acetal, PTFE, UHMWPE, Carbon-Filled PTFE, Electroless Nickel Plating, Chrome Plating, MaxLife Plating, Nitrile Rubber, Leather, Polyurethane, Carbon Steel, Zinc Plating, PTFE Coated Nitrile, Polyethylene |
| Material Container Volume (l) | 20 |
| Maximum Air Inlet Pressure (bar) | 8.62 |
| Maximum Air Inlet Pressure (kPa) | 862 |
| Maximum Air Inlet Pressure (kg/cm²) | 8.79 |
| Maximum Flow Rate (L/min) | 3.4 |
| Maximum Fluid Pressure (bar) | 137.9 |
| Maximum Fluid Pressure (kPa) | 13790 |
| Maximum Height (cm) | 259.9 |
| Maximum Height (m) | 2.6 |
| Maximum Height (mm) | 2599 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Working Pressure (bar) | 138 |
| Maximum Working Pressure (kPa) | 13800 |
| Minimum Height (cm) | 164.6 |
| Minimum Height (m) | 1.65 |
| Minimum Height (mm) | 1646 |
| Overall Depth (cm) | 63.5 |
| Overall Depth (mm) | 635 |
| Overall Width (cm) | 106.7 |
| Overall Width (mm) | 1067 |
