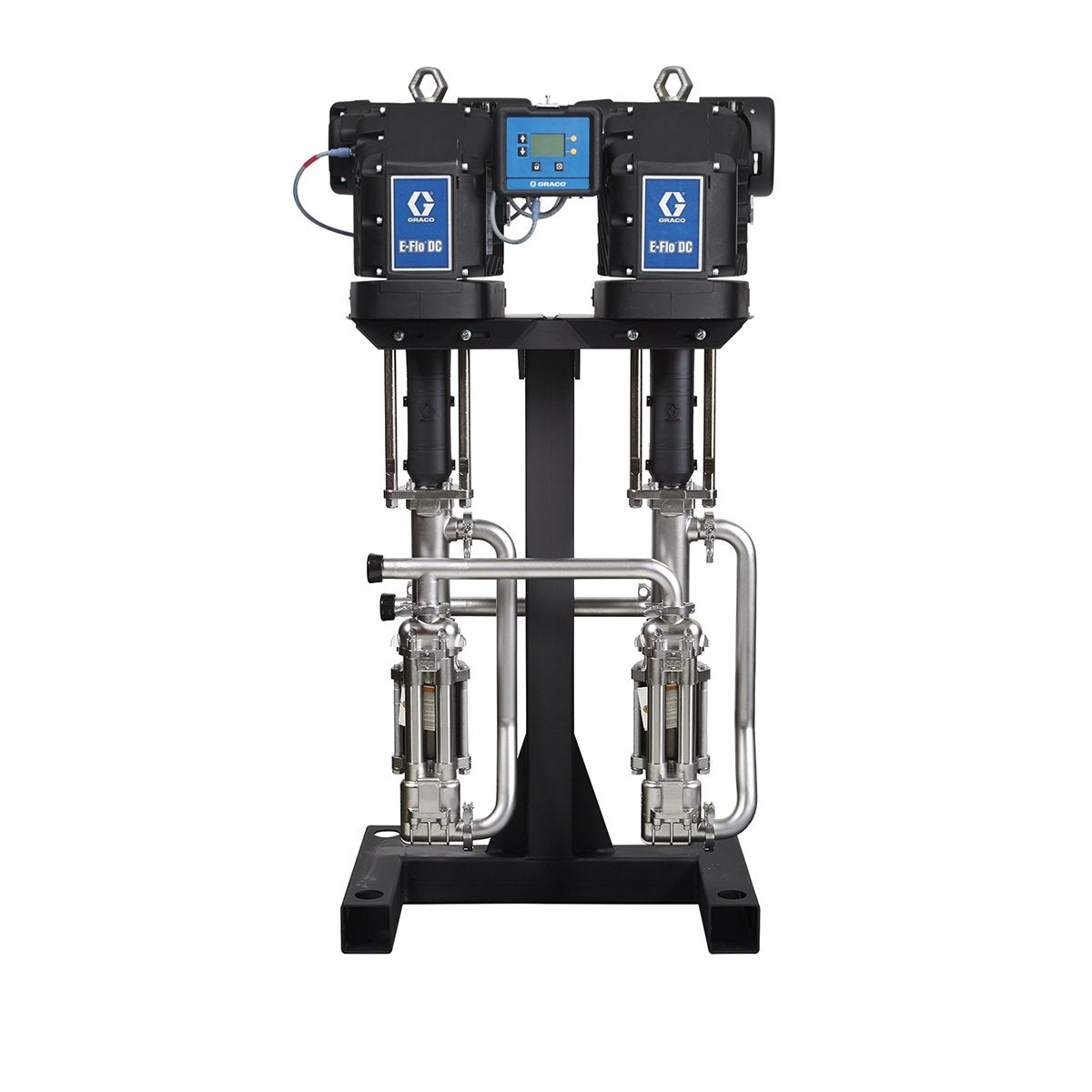

E-Flo DC 4-Ball Electric Circulation Pump, 4000cc, 2 x 2 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Stand
Specifications
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | Tri-Clamp |
| Fluid Outlet Size (in) | 1.5 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | Tri-Clamp |
| Fluid Section Type | 4-Ball, Sealed Bellows |
| Includes | Advanced Control Input, Stand |
| Maximum Continuous Cycle Rate (CPM) | 20 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Working Pressure (psi) | 276 |
| Minimum Operating Temperature (°F) | 32 |
| Overall Depth (in) | 18.39 |
| Overall Height (in) | 59.69 |
| Overall Width (in) | 28.5 |
| Type | Electric Piston Pump |
| Weight (lb) | 441 |
| Wetted Material | Stainless Steel, PTFE, Leather, Tungsten Carbide, Fluoropolymer, UHMWPE |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Outlet Size (mm) | 3.81 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Working Pressure (bar) | 19 |
| Minimum Operating Temperature (°C) | 0 |
| Overall Depth (mm) | 467 |
| Overall Height (mm) | 1516 |
| Overall Width (mm) | 724 |
| Weight (kg) | 200 |
