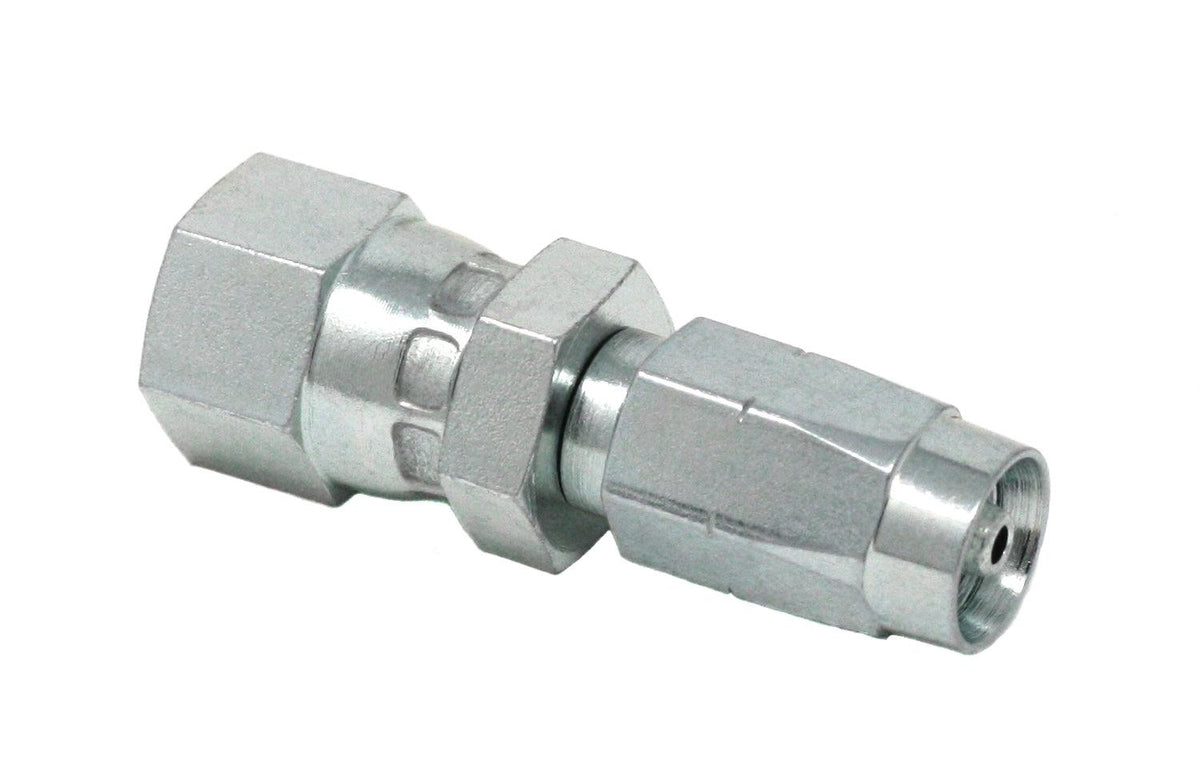

Graco Field-Installable Swivel Hose End Fitting - 1/8 in. ID Hose, #4 JIC, SAE 7/16-20 female

Graco Field-Installable Swivel Hose End Fitting - 1/8 in. ID Hose, #4 JIC, SAE 7/16-20 female

Regular price
$15.30
Sale price
$15.30
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Ships in 2-3 weeks, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

  • Field-Installable Swivel Hose End Fitting

  • 1/8" ID Hose

  • #4 JIC, SAE 7/16-20 female

UPC Product: 755652319542
Family Code: FAMCPT
Unit of Measure: EA
Height: 1.27 CM   |  .5 IN
Length: 2 IN   |  5.08 CM
Width: .5 IN   |  1.27 CM
Volume: 0 FT3   |  0 M3
Chargeable Weight: .05 LBS  | .02 KG

Technical Specifications

Connection Type Threaded
Hose Inside Diameter (in) 0.125
Hose Inside Diameter (mm) 3
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20670
Maximum Working Pressure (psi) 3000
Overall Length (cm) 4
Overall Length (in) 1.7
Overall Length (mm) 43
System of Measurement Imperial
Thread Gender Female
Thread Size (cm) 1.0986
Thread Size (in) 0.4325
Thread Size (mm) 10.9855
Thread Type UNF
Maximum Working Pressure (MPa) 20.7
