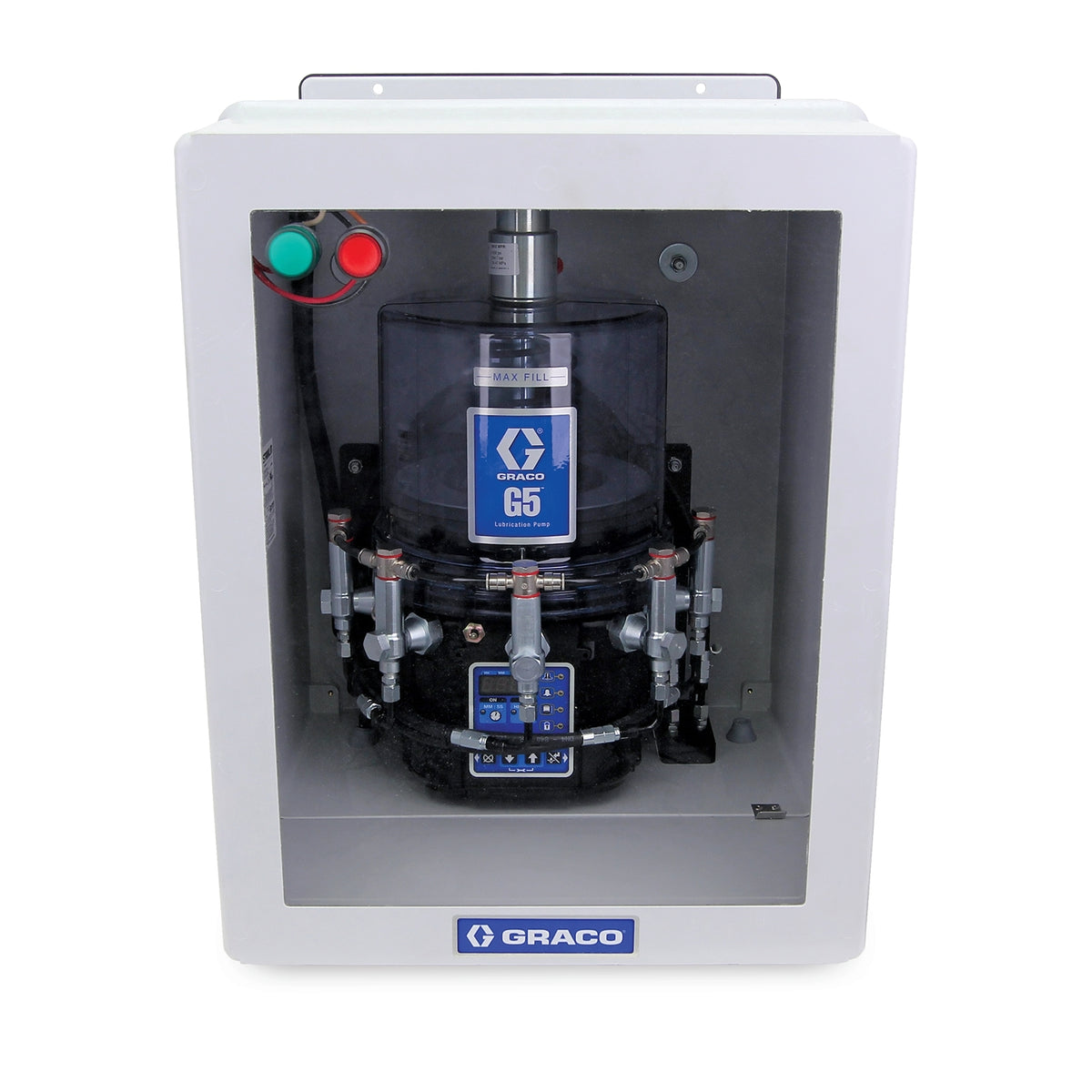

Greater profit is within reach with Graco G5 pumps. Equipped with five pump elements for more versatile and simple grease operations, the G5 has been designed specifically for the harsh demands of fracking operations.
Designed for quintuplex frack pumps, pumpjacks and other pump-to-point applications.
Five Pump Elements - G5 comes standard with five adjustable pump elements installed.
Flexible Power Options - Two CPC-style connectors with low level output options make for easy, hassle-free installations.
Optional Pressure Relief Valves - Install up to five pressure relief valves with the option to vent back into the reservoir.
Two Controller Options - Use your existing machine’s controller or choose the G5 Pro’s built-in controller.
Reservoir Wiper Arm - Stirring paddle with wiper arm to keep material from separating.
Auto-Fill Shutoff (AFSO) Option - Completely fill the reservoir while avoiding costly spills with an optional AFSO.
Robust Reservoir - U.V. resistant, high-impact reservoirs to meet the needs of your equipment.
Specifications
UPC Product: 769946700800
Family Code: FAMMPM
Unit of Measure: EA
Height:
24.25 IN
| 61.595 CM
Length:
27.75 IN
| 70.485 CM
Width:
21.5 IN
| 54.61 CM
Volume:
8.364 FT3
| .237 M3
Chargeable Weight:
90 LBS
| 40.82 KG
Technical Specifications
Type
Electric Piston Pump
Application
Off-Road Equipment
Compatible Material
Grease, Oil
Fluid Inlet Thread Gender
Female
Fluid Inlet Thread Type
NPT
Fluid Outlet Size (in)
0.125
Fluid Outlet Size (mm)
3.18
Fluid Outlet Thread Gender
Female
Fluid Outlet Thread Type
NPT
For Use With
Injector-Based Systems, Series Progressive Systems
Alarm Relay Inductive Maximum Operating Current (A)
1.5
Alarm Relay Inductive Maximum Operating Voltage (VDC)
220
Alarm Relay Inductive Maximum Switching Capacity
25 VA;30 W
Alarm Relay Inductive Minimum Permissible Load
10 ?A;10m VDC
Alarm Relay Inductive Rated Load (A)
1
Alarm Relay Resistive Maximum Operating Current (A)
3
Alarm Relay Resistive Maximum Switching Capacity
50 VA;60 W
Alarm Relay Resistive Rated Load (A)
2
Compatible Metering Device
Series Progressive
Control Options
Pro
IP Rating
IP69K
Maximum Fill Inlet Pressure (bar)
344.7
Maximum Fill Inlet Pressure (kPa)
34470
Maximum Fill Inlet Pressure (psi)
5000
Maximum Run Time (min)
30
Maximum Voltage (V dc)
30
Minimum cST Grade (cST)
40
Minimum Voltage (V dc)
18
Number of Machine Count Sensor Inputs
1
Number of Pressure and Cycle Sensor Inputs
3
Number of Pump Elements
5
Overall Depth (cm)
51.7
Overall Depth (in)
20.3
Overall Depth (mm)
517
Overall Height (cm)
588
Overall Height (in)
22
Overall Height (mm)
5880
Overall Width (cm)
432
Overall Width (in)
17
Overall Width (mm)
432
Pump Output with 0 Spacers (cu in/min)
0.16
Pump Output with 1 Spacer (cu in/min)
0.1
Pump Output with 2 Spacers (cu in/min)
0.06
Voltage (V)
24 VDC
Weight (kg)
32.5
Number of Outlets
5
Maximum Working Pressure (MPa)
29.3
Voltage
24
Enclosure Dimensions (in)
22 x 17 x 18
