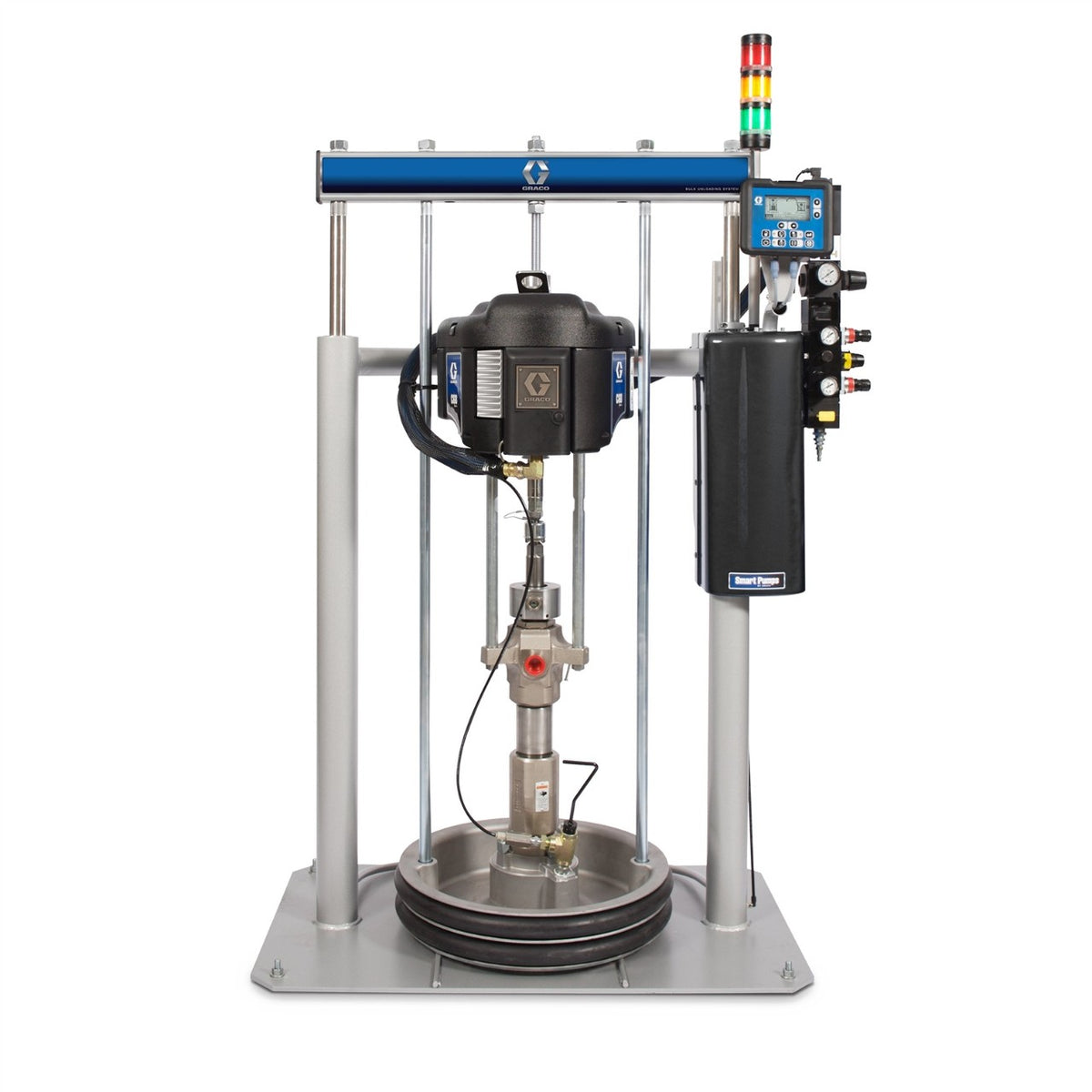

Supply Unit, Check-Mate, 47:1, 200L, 6.5 in. Ram, Single EPDM with PTFE Wiper
Specifications
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Container Type | Drum |
| Material Container Volume (gal) | 52.8 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Flow Rate (GPM) | 6.9 |
| Maximum Fluid Pressure (psi) | 4700 |
| Maximum Height (ft) | 3.42 |
| Maximum Height (in) | 41 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Height (ft) | 5.86 |
| Minimum Height (in) | 70.3 |
| Model | Dura-Flo |
| Overall Depth (in) | 25 |
| Overall Width (in) | 48 |
| Power Type | Pneumatic |
| Pump Ratio | 47:1 |
| Pump Type | Double Ball |
| Ram Material | Carbon Steel |
| Series | D200s |
| Type | Supply Unit |
| Wetted Material | Stainless Steel, Tungsten Carbide, Acetal, PTFE, EPDM, PTFE Coated Aluminum, Zinc-Plated Carbon Steel |
| Material Container Volume (l) | 200 |
| Maximum Air Inlet Pressure (bar) | 8.62 |
| Maximum Air Inlet Pressure (kPa) | 862 |
| Maximum Air Inlet Pressure (kg/cm²) | 8.79 |
| Maximum Flow Rate (L/min) | 26.1 |
| Maximum Fluid Pressure (bar) | 324.1 |
| Maximum Fluid Pressure (kPa) | 32410 |
| Maximum Height (cm) | 104.1 |
| Maximum Height (m) | 1.04 |
| Maximum Height (mm) | 1041 |
| Maximum Operating Temperature (°C) | 49 |
| Minimum Height (cm) | 178.5 |
| Minimum Height (m) | 1.79 |
| Minimum Height (mm) | 1785 |
| Overall Depth (cm) | 63.5 |
| Overall Depth (mm) | 635 |
| Overall Width (cm) | 121.9 |
| Overall Width (mm) | 1219 |
