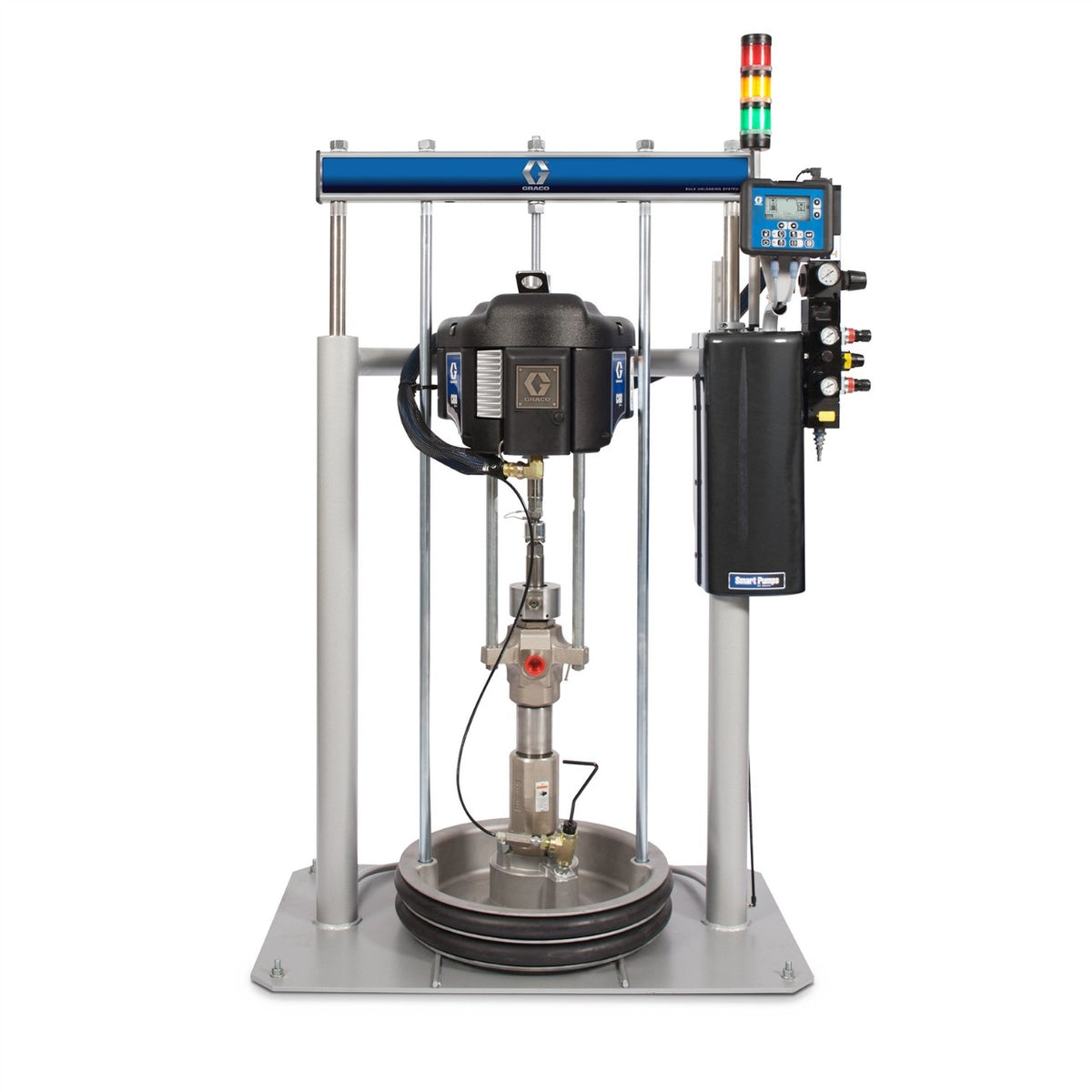

Supply Unit, Check-Mate, 22:1, 3 in. Ram, 200L, Single EPDM Wiper
Specifications
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Container Type | Drum |
| Material Container Volume (gal) | 52.8 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Flow Rate (GPM) | 9.2 |
| Maximum Fluid Pressure (psi) | 2270 |
| Maximum Height (ft) | 3.33 |
| Maximum Height (in) | 40 |
| Maximum Operating Temperature (°F) | 120 |
| Minimum Height (ft) | 5.4 |
| Minimum Height (in) | 64.8 |
| Model | Dura-Flo |
| Overall Depth (in) | 25 |
| Overall Width (in) | 42 |
| Power Type | Pneumatic |
| Pump Ratio | 22:1 |
| Pump Type | Double Ball |
| Ram Material | Carbon Steel |
| Series | D200 |
| Type | Supply Unit |
| Wetted Material | Stainless Steel, Tungsten Carbide, Acetal, PTFE, EPDM, Aluminum, Zinc-Plated Carbon Steel |
| Material Container Volume (l) | 200 |
| Maximum Air Inlet Pressure (bar) | 10.34 |
| Maximum Air Inlet Pressure (kPa) | 1034 |
| Maximum Air Inlet Pressure (kg/cm²) | 10.55 |
| Maximum Flow Rate (L/min) | 34.8 |
| Maximum Fluid Pressure (bar) | 156.5 |
| Maximum Fluid Pressure (kPa) | 15650 |
| Maximum Height (cm) | 101.6 |
| Maximum Height (m) | 1.02 |
| Maximum Height (mm) | 1016 |
| Maximum Operating Temperature (°C) | 49 |
| Minimum Height (cm) | 164.6 |
| Minimum Height (m) | 1.65 |
| Minimum Height (mm) | 1646 |
| Overall Depth (cm) | 63.5 |
| Overall Depth (mm) | 635 |
| Overall Width (cm) | 106.7 |
| Overall Width (mm) | 1067 |
