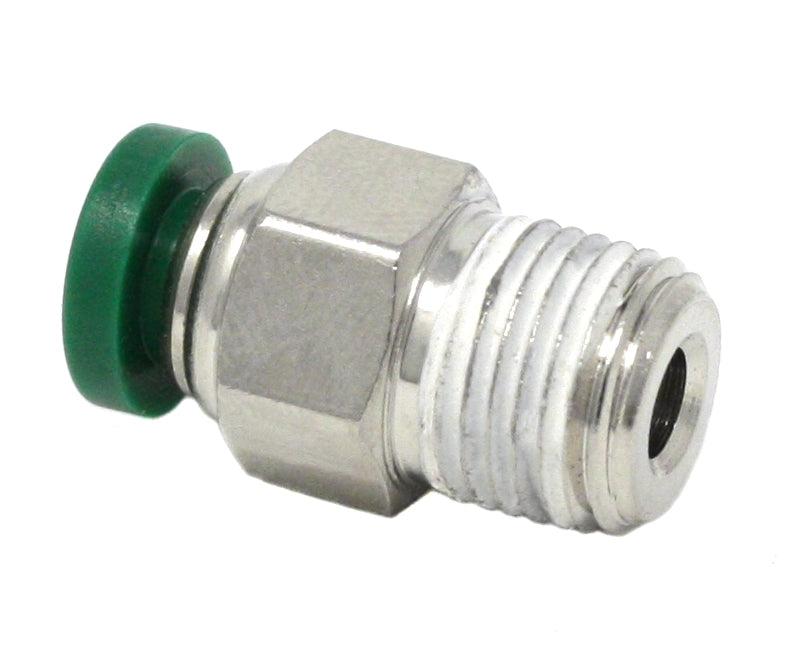

Graco General Tube Fitting - Straight Connector - Push-to-Connect 3/16 inch Tube x 1/8 inch PM

Graco General Tube Fitting - Straight Connector - Push-to-Connect 3/16 inch Tube x 1/8 inch PM

Regular price
$9.80
Sale price
$9.80
Quantity must be 1 or more


  • Tube Fittings - Female Connector - 5/16 inch (7.9 mm) Tube, 1/8 inch (3.2 mm) NPT
  • Lubriquip part number 435-702-369
UPC Product: 633955196988
Family Code: FAMCPT
Unit of Measure: EA
Height: .85 IN   |  2.159 CM
Length: .4 IN   |  1.016 CM
Width: .889 CM   |  .35 IN
Volume: 0 FT3   |  0 M3
Chargeable Weight: .01 KG  | .02 LBS

Technical Specifications

Application On-Road Vehicles
Compatible Material Oil, Grease
Connection Type Push-to-Connect, Threaded
Finish/Coating Zinc
For Use With 管路, Tube
Material Steel
Maximum Working Pressure (bar) 21
Maximum Working Pressure (kPa) 2100
Maximum Working Pressure (psi) 300
Size A (in) 3/16
Size A (mm) 4.763
Size B (in) 1/8
Size B (mm) 3.175
System of Measurement Imperial
Thread Type NPT
Type Connector
Maximum Working Pressure (MPa) 2.1
